1 inch
4 inch
150 mm
6 inch
Storage temperature -25…70 °C (-13…158 °F)
Max. heat sink temperature 90 °C (194 °F)
Climatic category (EN 60721-3-3) 3K3
Environment (IEC 664-1) Pollution degree 2
Vibration/Jolt according to German. Lloyd; EN50155
The at-rear design (projected) requires cooling measures by the
machine builder. This can be in the best case no further measure at
all (e.g. at cyclic operation with down times) up to the dissipation of
the entire, indicated heat loss at rated operation.
The COMBIVERT must be protected against aggressive
gases, aerosols and conductive dust !

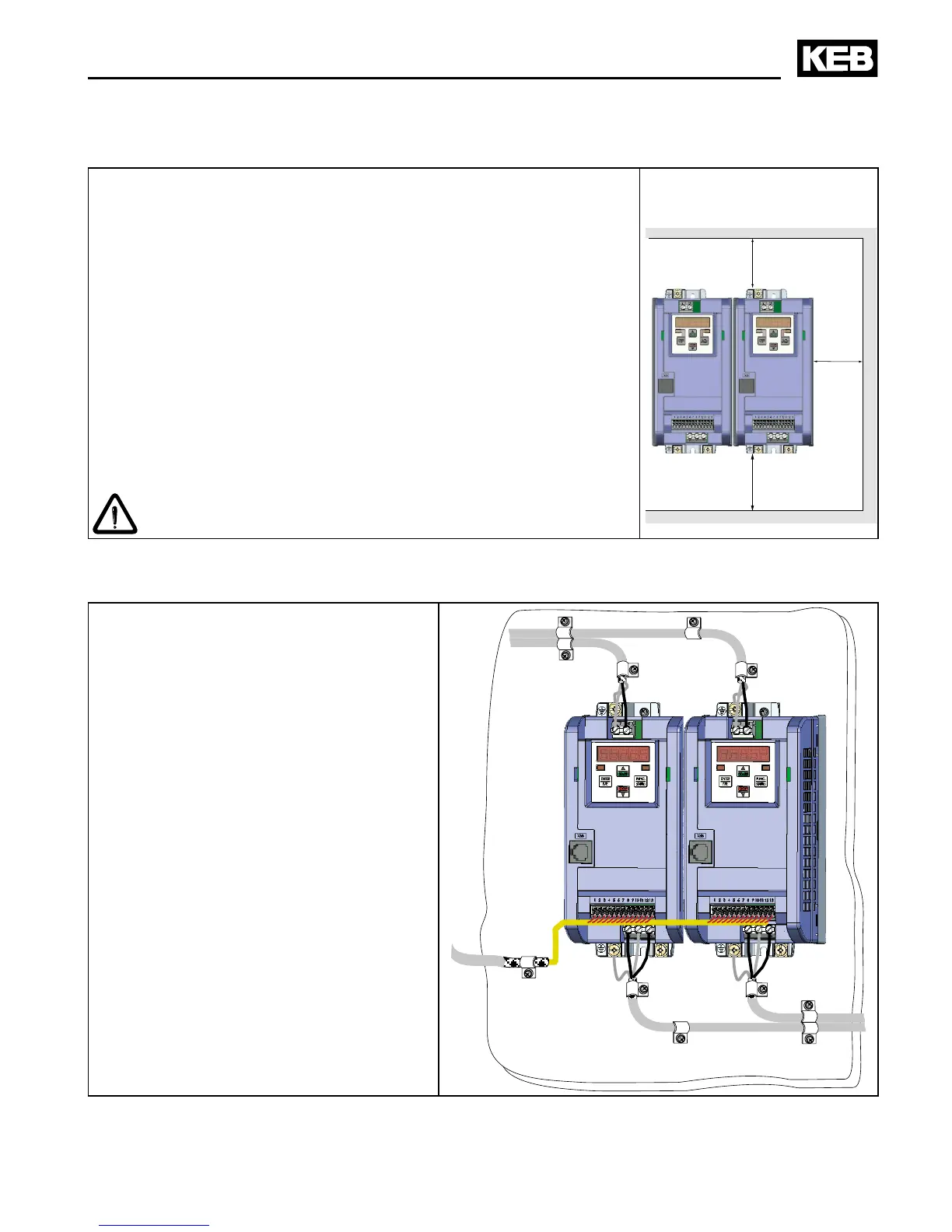

3.2 EMC conform Installation
• Always apply the shielding of motor
and control cables over a large contact
surface on both sides.
• Distance between control and power
cables at least 10…20 cm (4…8 inch).
• Lay motor and power cable separately.
• If it cannot be avoided, cross control
and power cables in a right angle.
• Install all cables as close as possible
to the mounting plate - ideal in a metal
cable duct.
• Mount COMBIVERT well conducting
with the mounting plate. Remove the
paint beforehand.
You can nd further instructions regarding
the EMC- conform wiring in the Internet
at KEB.
3. Installation and Connection
3.1 Control cabinet installation
Installation and Connection
