Name: Basis
15.12.98
Operation Fundamentals
© KEB Antriebstechnik, 1998
All Rights reserved
Chapter Section
Page Date
4.1.2 Selection of a
Parameter

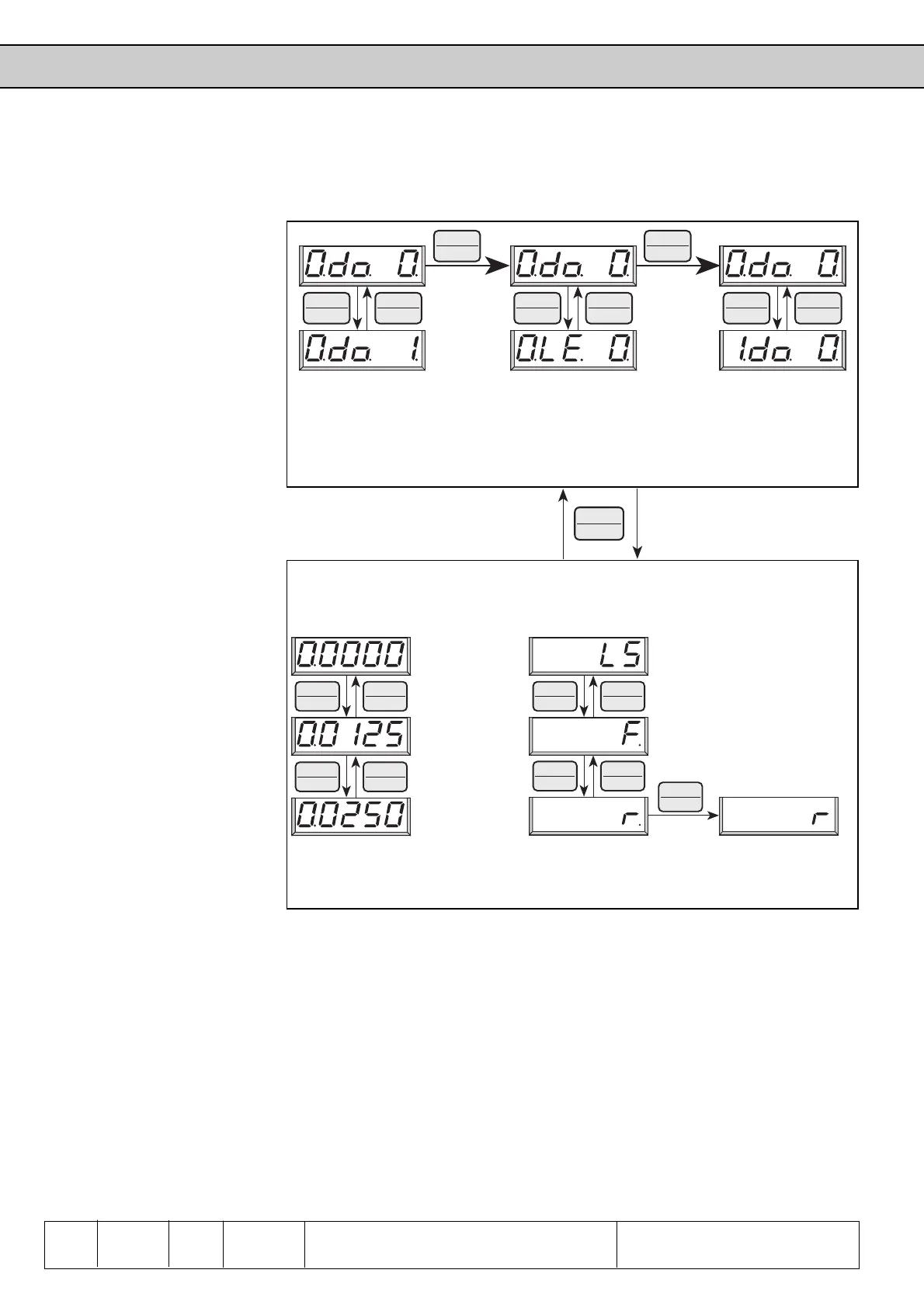

The blinking point indicates the changeable area. By pressing the ENTER-key the
blinking point is shifted.
✻
ENTER
F/R
ENTER
F/R
✻
✻
✻
✻
✻
â–²
START
â–¼
STOP
â–²
START
â–¼
STOP
â–²
START
â–¼
STOP
Select Select Select
parameter number parameter group parameter set
A parameter set number is not displayed
for non-programmable parameters (see 4.1.5)!
Changes between parameter value
FUNCT
SPEED
and parameter designation
Changing of
Standard-Parameters ENTER-Parameters
â–²
START
â–¼
STOP
â–²
START
â–¼
STOP
â–²
START
â–¼
STOP
â–²
START
â–¼
STOP
ENTER
F/R
Parameter values can be changed only, when the parameter set
is not adjusted to „Active parameter set“ (A) ! (see 4.1.6)
For some parameters it is not sensible that the selected values become active
immediately. For that reason they are called ENTER-parameters, they do not become
active until the ENTER-key is pressed.
Example: At digital setting of rotation direction the rotation reverse (r) shall be selected
from standstill (LS). As shown above, the actuation must be done via rotation
forward (F). However, the drive must not start yet, first the rotation direction
reverse has to be selected and confirmed with ENTER (point disappears).
4.1.3 Adjustment of
Parameter Values
4.1.4 ENTER-
Parameter
- Values are
immediately
accepted and
stored non-
volatile!
- During changing a point is
indicated behind the last
digit
- The value is accepted with
ENTER and stored non-
volatile (point disappears)
