5.1.1 Parameter Groups
5.1 Parameter
The frequency inverter KEB COMBIVERT F4-C contains 14 fixed and one free-to-
define parameter group. We have already learned about the free-to-define group (CP).
In the fixed parameter groups the parameters are combined function-related.
5. Parameter

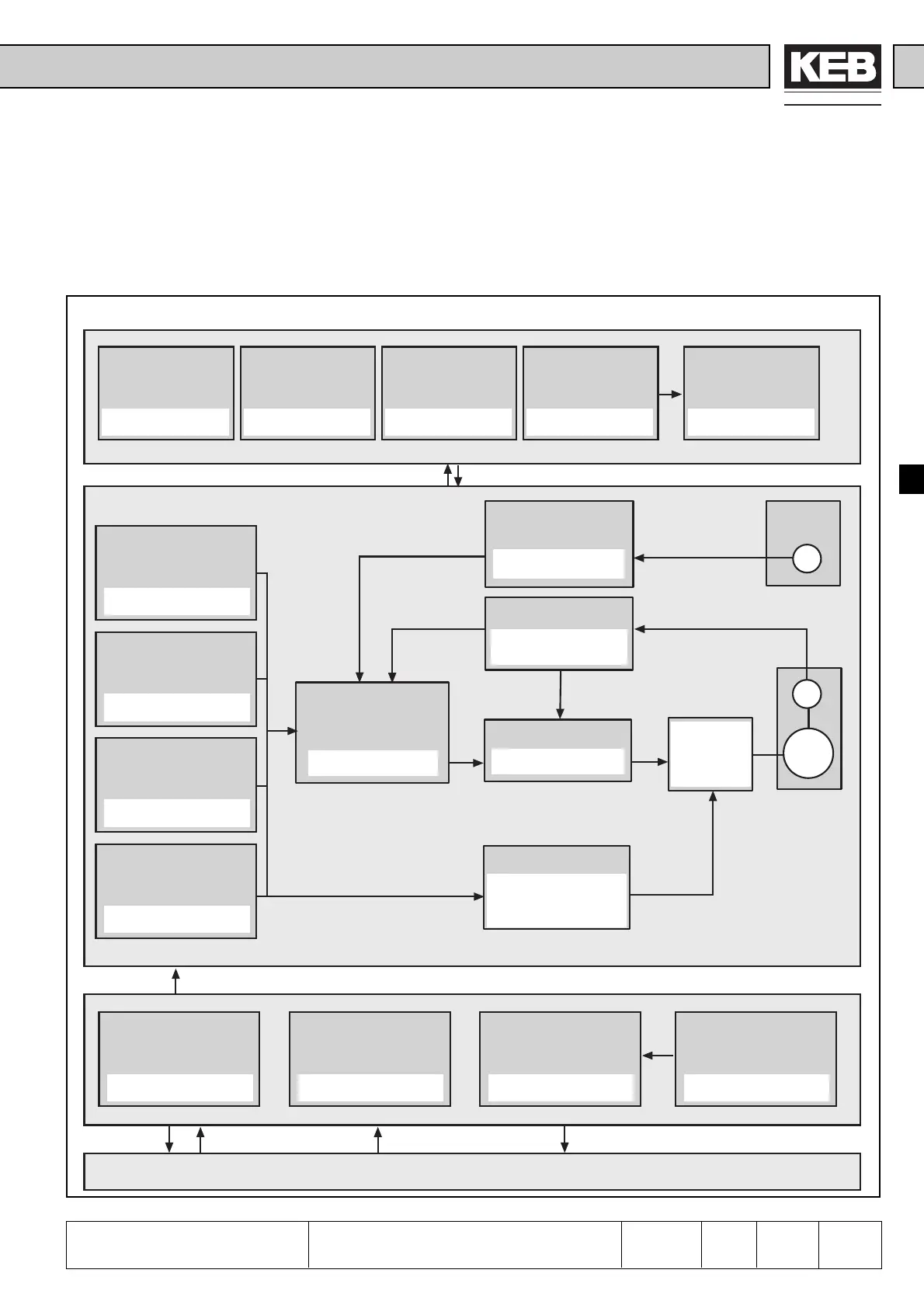

Pic. 5.1.1 Parameter structure
Status Display Inverter
Characteristics
Programming of
Parameter Sets
Bus Interface and
Keyboard
Configuration
User-defined
Parameters
Control Terminal Strip
Analog Inputs Digital Inputs Digital Outputs Switching Level
Setpoint Calculation
and Limiting
Protective and
Keep on running
Functions
Ramp Generator
and S-curves
Speed Control, Flux
Control and Torque
Limition
Rated Motor
Frequency / Boost
U/f-Characteristic
Current Control
Motor Modell
Modulator
Synchronous
Control
Master
Drive
PG
M
3~
PG
ru-Parameter In-Parameter Fr-Parameter ud-Parameter CP-Parameter
An-Parameter di-Parameter do-Parameter LE-Parameter
SP- / An-Parameter
Pn-Parameter
SP-Parameter
CS-Parameter
dS-Parameter
dr-Parameter
ru-Parameter
Sn-Parameter
Positioning
Module
Pc- / Pd-Parameter
