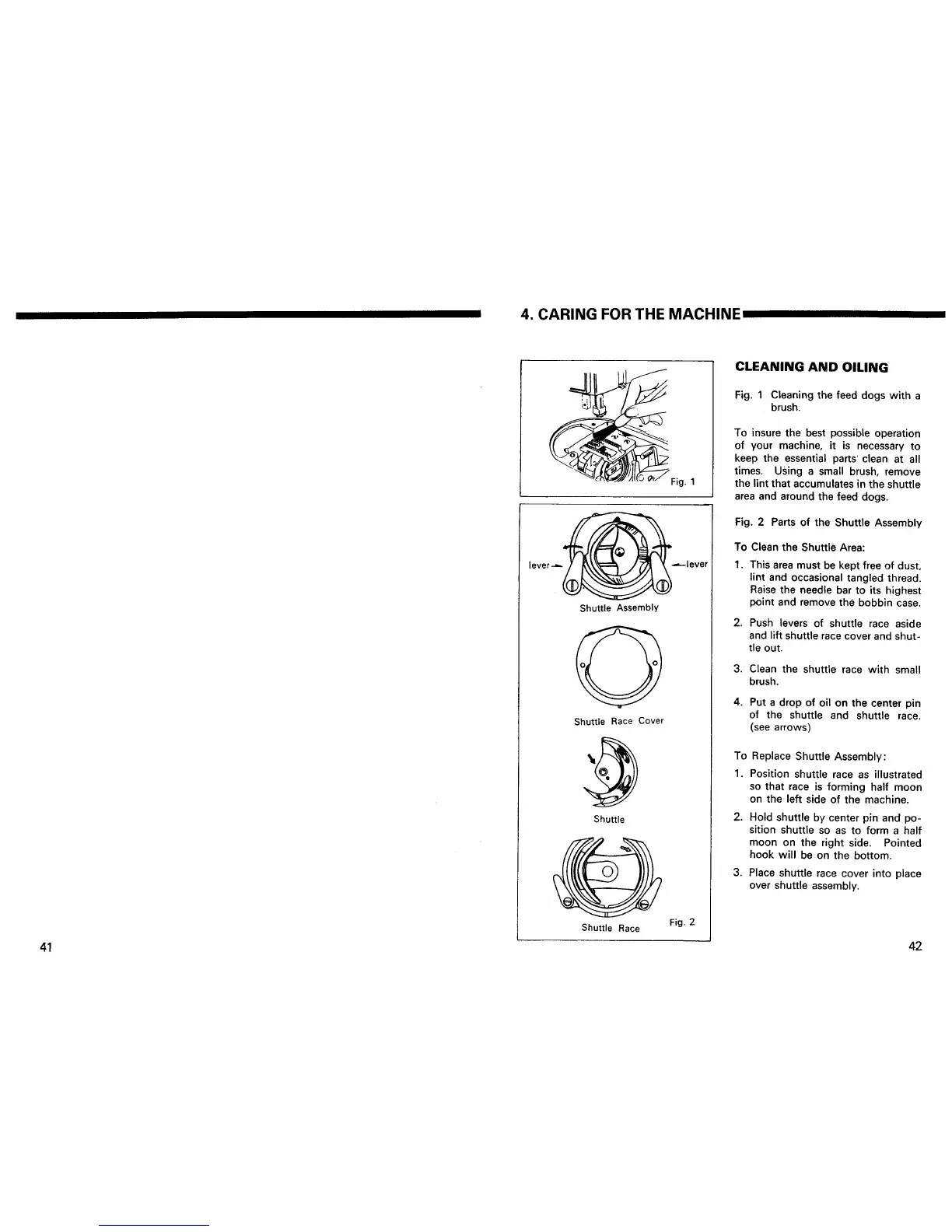

4. CARING FOR THE MACHINE
Fig. 1
evereve
Shuttle Assembly
Shuttle Race Cover
Shuttle
Shuttle Race
Fig. 2
CLEANING AND OILING
Fig. 1 Cleaning the feed dogs with a
brush.
To insure the best possible operation
of your machine, it is necessary to
keep the essential parts" clean at all
times. Using a small brush, remove
the lint that accumulates in the shuttle
area and around the feed dogs.
Fig. 2 Parts of the Shuttle Assembly
To
1.
.
Clean the Shuttle Area:
This area must be kept free of dust,
lint and occasional tangled thread.
Raise the needle bar to its highest
point and remove the bobbin case.
Push levers of shuttle race aside
and lift shuttle race cover and shut-
tle out.
3. Clean the shuttle race with small
brush.
4.
Put a drop of oil on the center pin
of the shuttle and shuttle race.
(see arrows)
To Replace Shuttle Assembly:
1. Position shuttle race as illustrated
so that race is forming half moon
on the left side of the machine.
.
.
Hold shuttle by center pin and po-
sition shuttle so as to form a half
moon on the right side. Pointed
hook will be on the bottom.
Place shuttle race cover into place
over shuttle assembly.
41 42
