Kenmore 17570 User Manual

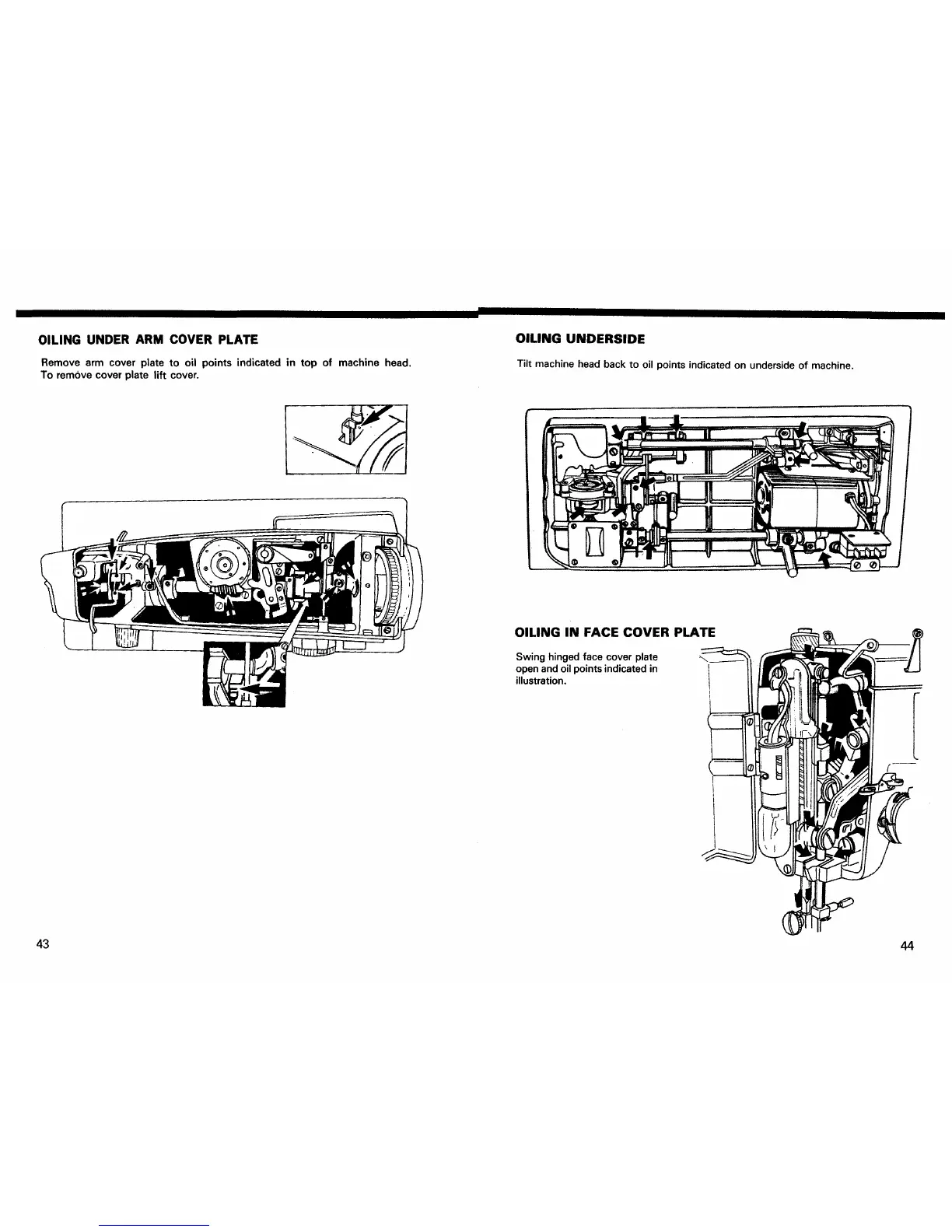

OILING UNDER ARM COVER PLATE
Remove arm cover plate to oil points indicated in top of machine head.
To remove cover plate lift cover.
OILING UNDERSIDE
Tilt machineheadbackto oil pointsindicatedon undersideof machine.
OILING IN FACE COVER PLATE
Swing hinged face cover plate
open and oil pointsindicated in
illustration,
43 44
