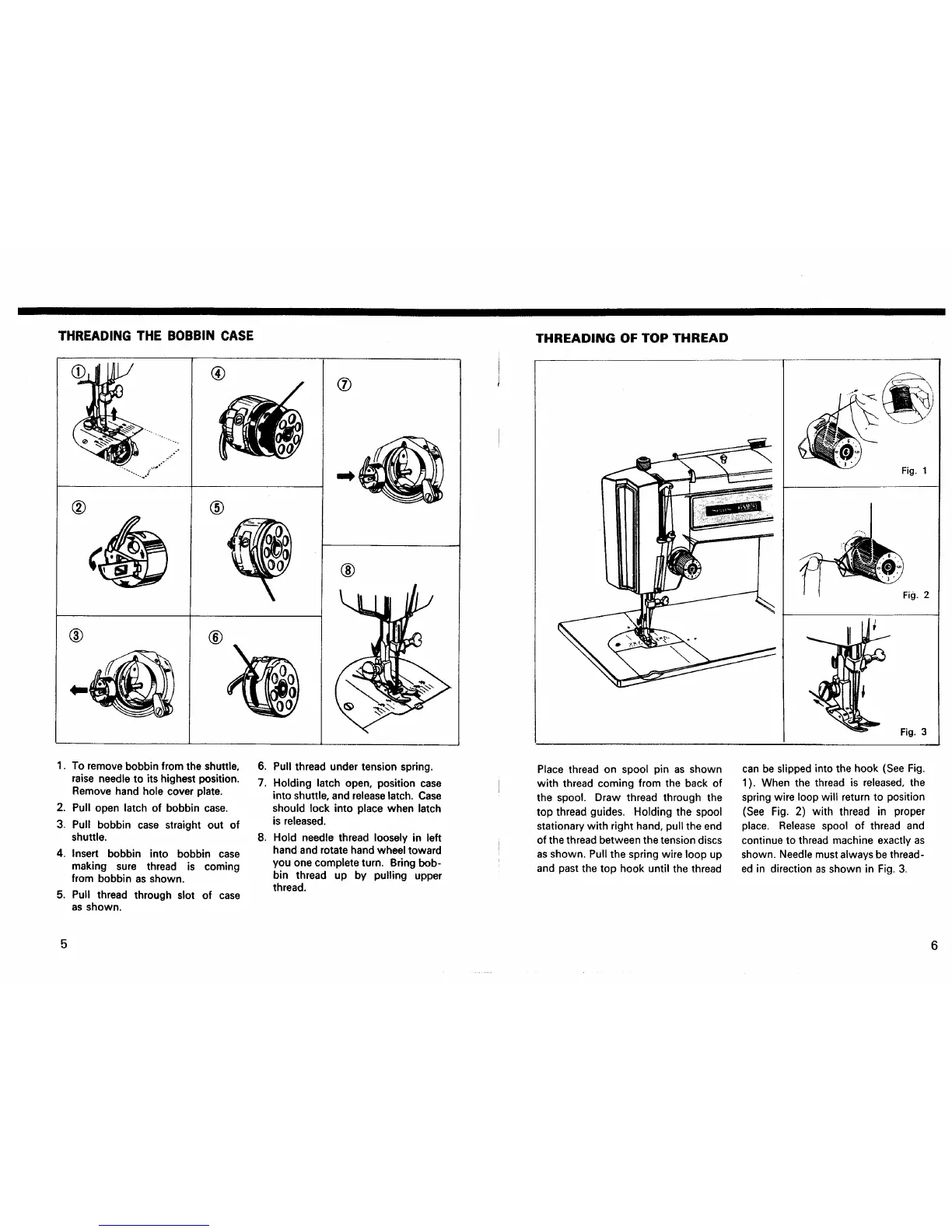

THREADINGTHEBOBBINCASE THREADINGOFTOPTHREAD
®
®
\
®
®
®
r
1. To remove bobbin from the shuttle,
raise needle to its highest position.
Remove hand hole cover plate.
2. Pull open latch of bobbin case.
3. Pull bobbin case straight out of
shuttle.
4. Insert bobbin into bobbin case
making sure thread is coming
from bobbin as shown.
5. Pull thread through slot of case
as shown.
6. Pull thread under tension spring.
7. Holding latch open, position case
into shuttle, and release latch. Case
should lock into place when latch
is released.
8. Hold needle thread loosely in left
hand and rotate hand wheel toward
you one complete turn. Bring bob-
bin thread up by pulling upper
thread.
Fig. 1
Fig. 2
;__ Fig. 3
Place thread on spool pin as shown
with thread coming from the back of
the spool. Draw thread through the
top thread guides. Holding the spool
stationary with right hand, pull the end
of the thread between the tension discs
as shown. Pull the spring wire loop up
and past the top hook until the thread
can be slipped into the hook (See Fig.
1). When the thread is released, the
spring wire loop will return to position
(See Fig. 2) with thread in proper
place. Release spool of thread and
continue to thread machine exactly as
shown. Needle mustalways be thread-
ed in direction as shown in Fig. 3.
5 6
To Next Page
