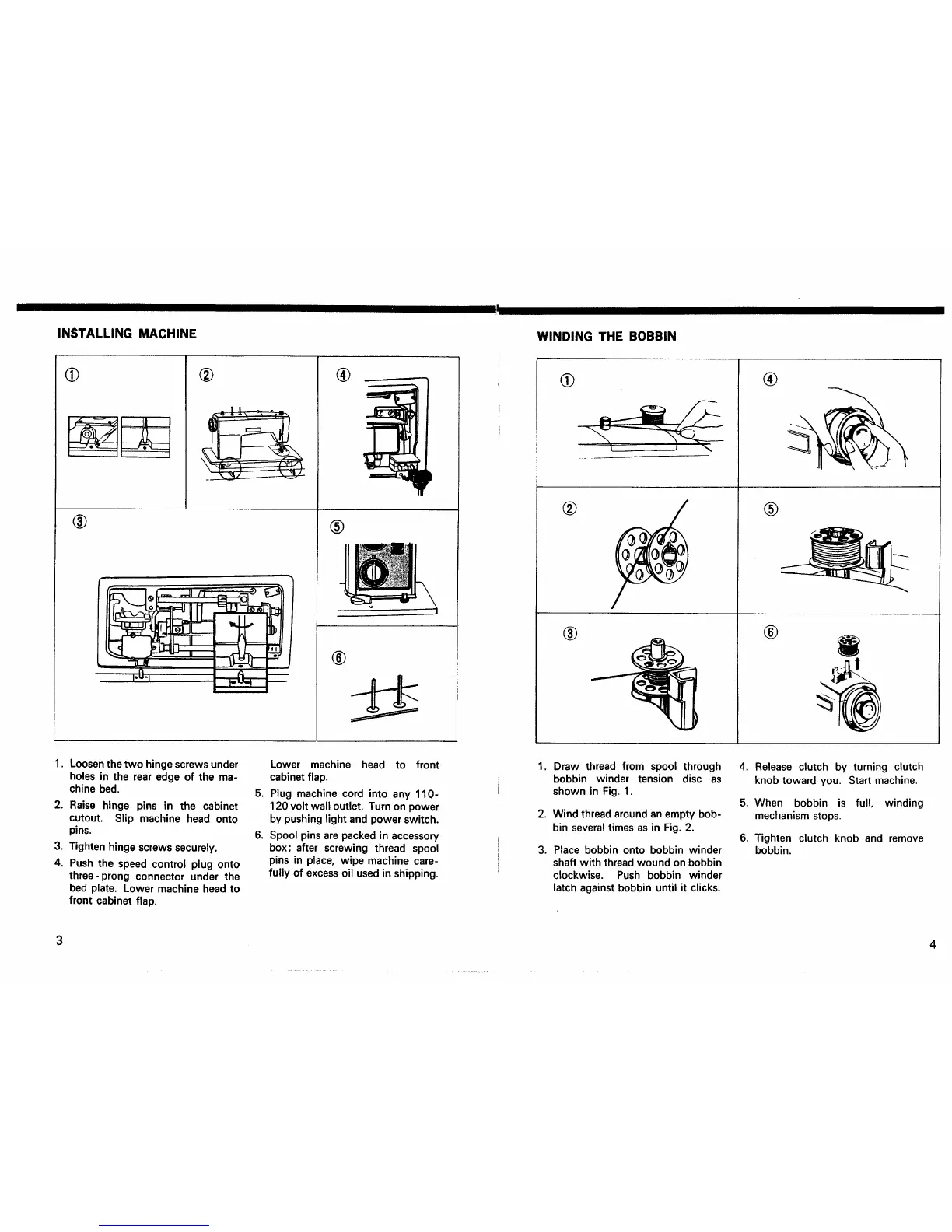

INSTALLINGMACHINE
WINDINGTHEBOBBIN
®
® ®
®
®
®
®
/
®
®
®
i
I,
Loosen the two hinge screws under
holes in the rear edge of the ma-
chine bed.
2. Raise hinge pins in the cabinet
cutout. Slip machine head onto
pins.
3. Tighten hinge screws securely.
4. Push the speed control plug onto
three-prong connector under the
bed plate. Lower machine head to
front cabinet flap.
Lower machine head to front
cabinet flap.
5. Plug machine cord into any 110-
120 volt wall outlet. Turn on power
by pushing light and power switch.
6. Spool pins are packed in accessory
box; after screwing thread spool
pins in place, wipe machine care-
fully of excess oil used in shipping.
1. Draw thread from spool through
bobbin winder tension disc as
shown in Fig. 1.
2. Wind threadaroundanempty bob-
bin severaltimesas in Fig.2.
3. Place bobbin onto bobbin winder
shaft with thread wound on bobbin
clockwise. Push bobbin winder
latch against bobbin until it clicks.
4. Release clutch by turning clutch
knob toward you. Start machine.
5. When bobbin is full, winding
mechanism stops.
6. Tighten clutch knob and remove
bobbin.
