4-2

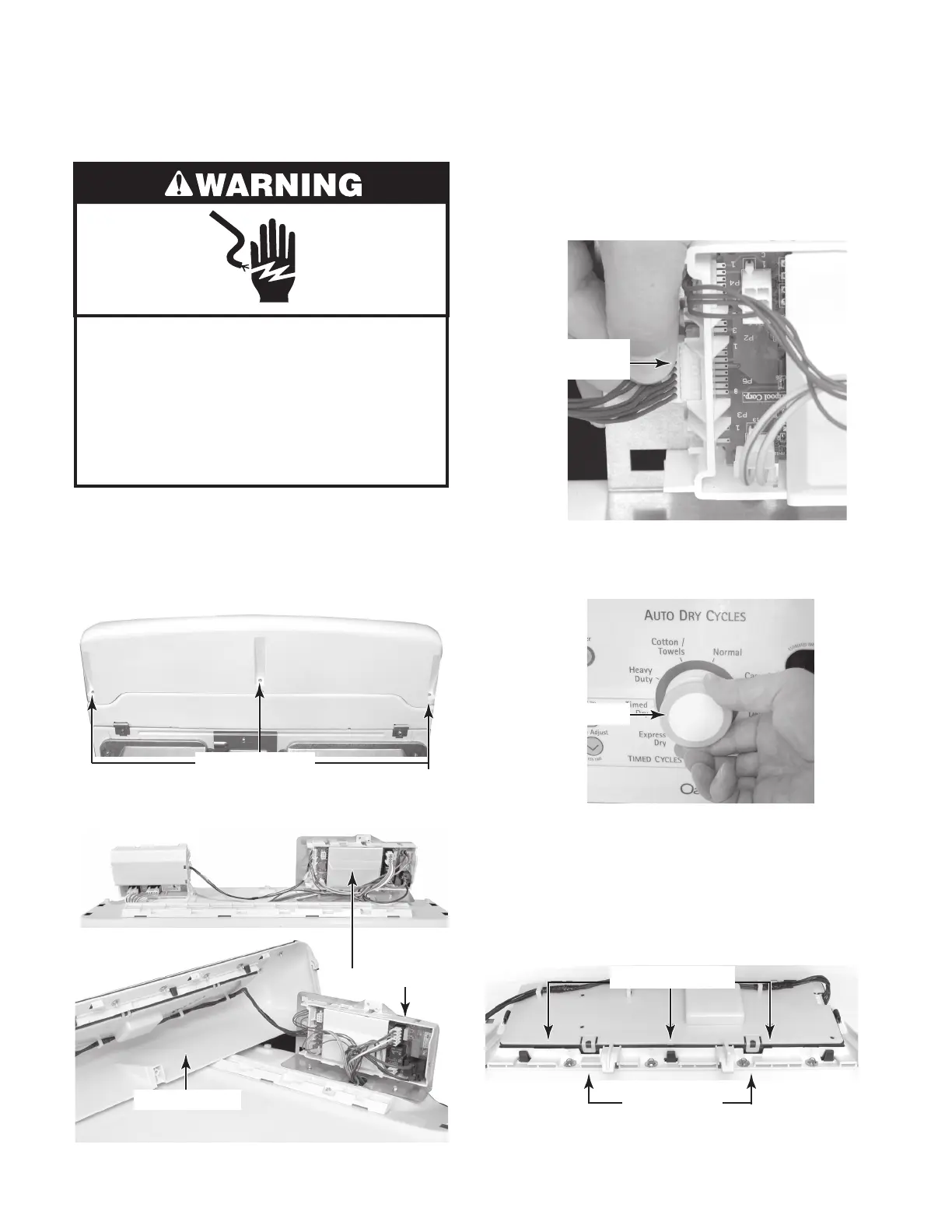

REMOVING THE USER INTERFACE BOARD,
THE MACHINE CONTROL, & MOTOR CONTROL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug dryer or disconnect power.
2. Turn off gas supply to dryer.
3. Remove the three mounting screws from
the rear of the console.
5. Disconnect the user interface board cable
connector from machine control board
connector P5.
6. To remove the user interface board:
a) Pull the knob off the control shaft.
b) The user interface assembly is held
to the console insert panel by three
screws and two locking tabs. After the
screws are removed, lift each of the
locking tabs to remove the back cover
of the user interface assembly.
Console Screws
Machine Control
Connector P5
Control Knob
UI Cover Screws
Locking Tabs
4. Lift the console off the cabinet.
User Interface
Machine Control
Motor Control
To Next Page
