4-12

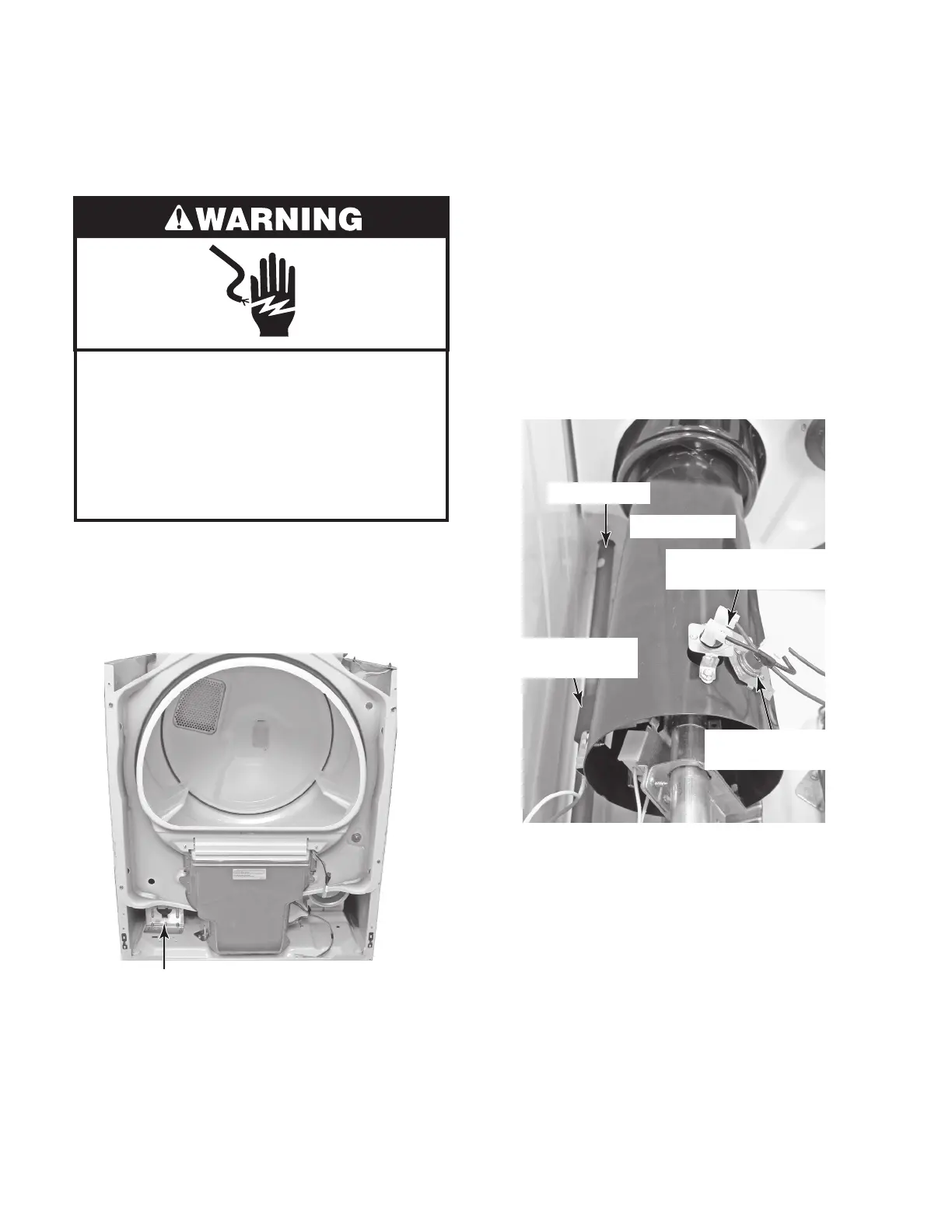

REMOVING THE HIGH-LIMIT THERMOSTAT, THERMAL
CUTOFF, FLAME SENSOR, AND GAS BURNER ASSEMBLY
(GAS MODELS ONLY)
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug dryer or disconnect power.
2. Turn off gas supply to dryer.
3. Remove the cabinet front (see page 4-6
for the procedure).
Flame Sensor
(BU & WH Wires)
High-Limit Thermostat
(RD & BK Wires)
Thermal Cutoff
(BU & BK Wires)
Gas Manifold
4. Remove the belt and drum from the dry-
er (see page 4-15 for the procedure).
5. To remove the high-limit thermostat,
thermal cutoff, or flame sensor:
a) Remove the two wires from the termi-
nals.
b) Remove the hex-head screw(s) and
remove the component from the
burner venturi.
Burner Venturi
High-Limit Thermostat, Thermal Cutoff,
Flame Sensor, & Gas Burner
To Next Page
