Kenmore Oasis 110.67087600 User Manual

6-18
Gas Dryers
DISPLAY FAULT CODES
The fault codes below would be indicated
when attempting to start a drying cycle or af
-
ter activating the diagnostic test mode.
DISPLAY DESCRIPTION EXPLANATION / RECOMMENDED PROCEDURE
PF
Power
Failure
PF flashes to indicate that a power failure
occurred while the dryer was running. Press
START to continue the cycle, or press STOP to
clear the display.
F-01
Primary
Control
Failure
F-01 flashes when there is a primary control
failure. Replace the machine control electronics.
See Accessing & Removing the Electronic
Assemblies.
F-02
Keypad/
User Interface
Failure
F-02 flashes when there is a stuck button or user
interface mismatch. This fault code will ONLY
appear when in the diagnostic test mode. See
TEST #6.
F-22
Exhaust
Thermistor
Open
F-22 flashes if the exhaust thermistor is open.
See TEST #4
a.
F-23
Exhaust
Thermistor
Shorted
F-23 flashes if the exhaust thermistor has
shorted. See TEST #4a.
F-26
Motor Drive
System Failure
F-26 flashes if there is a motor drive system
failure. See TEST #3.
F-28
Moisture
Sensor Open
F-28 flashes if the moisture sensor strip is open.
This fault code will ONLY appear when in the
diagnostic test mode. See TEST #5.
F-29
Moisture
Sensor
Shorted
F-29 flashes if the moisture sensor strip has
shorted. This fault code will ONLY appear when in
the diagnostic test mode. See TEST #5.
F-30
Restricted
Airflow
Condition
F-30 flashes if a restricted airflow condition
exists. This fault code will ONLY appear when in
the diagnostic test mode. Check to make sure the
lint screen is clean, the door seal is in place and
the vent is not obstructed.
F-40
Communication
Error
F-40 flashes if the communication between the
machine control and motor control is lost. See
TEST #3b.
F-41
Blower Motor
Failure
F-41 flashes when there is a blower motor failure.
See TEST #3b.
F-42
Undervoltage
Failure
F-42 flashes if the motor control detects a voltage
less than 90 VAC. See TEST #1, and
DIAGNOSTIC: Displaying Line Voltage.
F-43
Undervoltage
Warning
F-43 flashes if the motor control detects a low
voltage condition. The dryer will continue to run at
a set blower speed. See TEST #1, and
DIAGNOSTIC: Displaying Line Voltage.
F-44
Motor Control
Failure
F-44 flashes when there is a motor control
electronics failure. See TEST #3b.
F-45
Motor Control
Speed Sensor
Error
F-45 flashes when there is a motor control
electronics speed sensor failure. See TEST #3b.
F-46
Blower Motor
Error
F-46 flashes if the motor control detects an
over-current or an over-torque condition. See
TEST #3b.
DISPLAY DESCRIPTION EXPLANATION / RECOMMENDED PROCEDURE
Moisture Sensor
Strips
Door
Switch
Drum Light
Assembly
•
See Removing
the Back Panel
to access:
See Removing the
Fr
ont Panel/Drum Assembly
to access:
Moisture Sensors
Thermal Cut-off
•
•
•
•
•
•
•
Exhaust Thermistor
High Limit Thermostat
Heater Assembly
Thermal Fuse
Blower Motor (Dual Motor Model)
Heater Assembly
Drive Motor
•
•
Belt Switch
•
Machine Control Electronics
•
User Interface Assembly
•
Motor Control Electronics
(Dual Motor Model)
See Accessing & Removing the
Electronic Assemblies to access:
Blower Motor

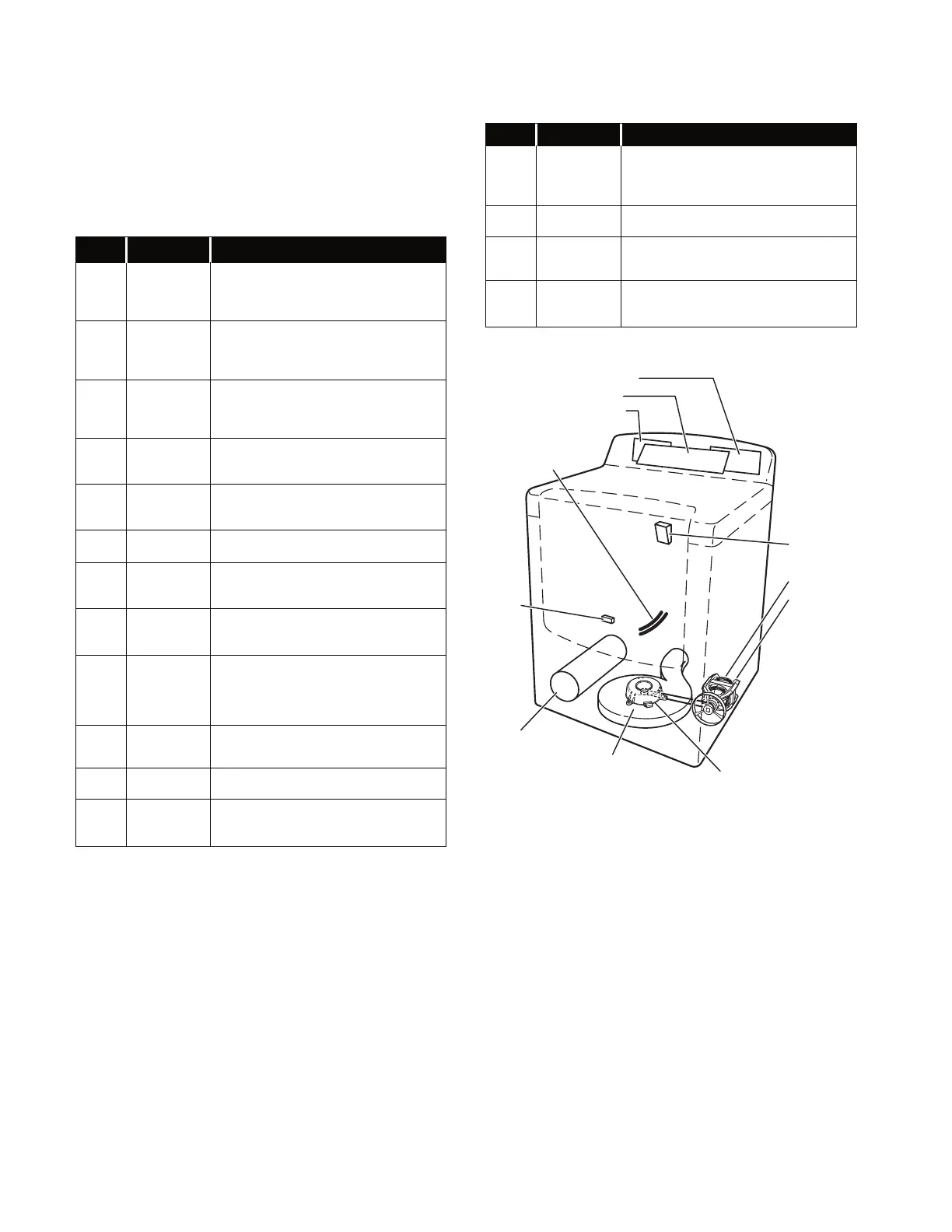

Figure 1.
Component Locations
(Dual Motor Model)
