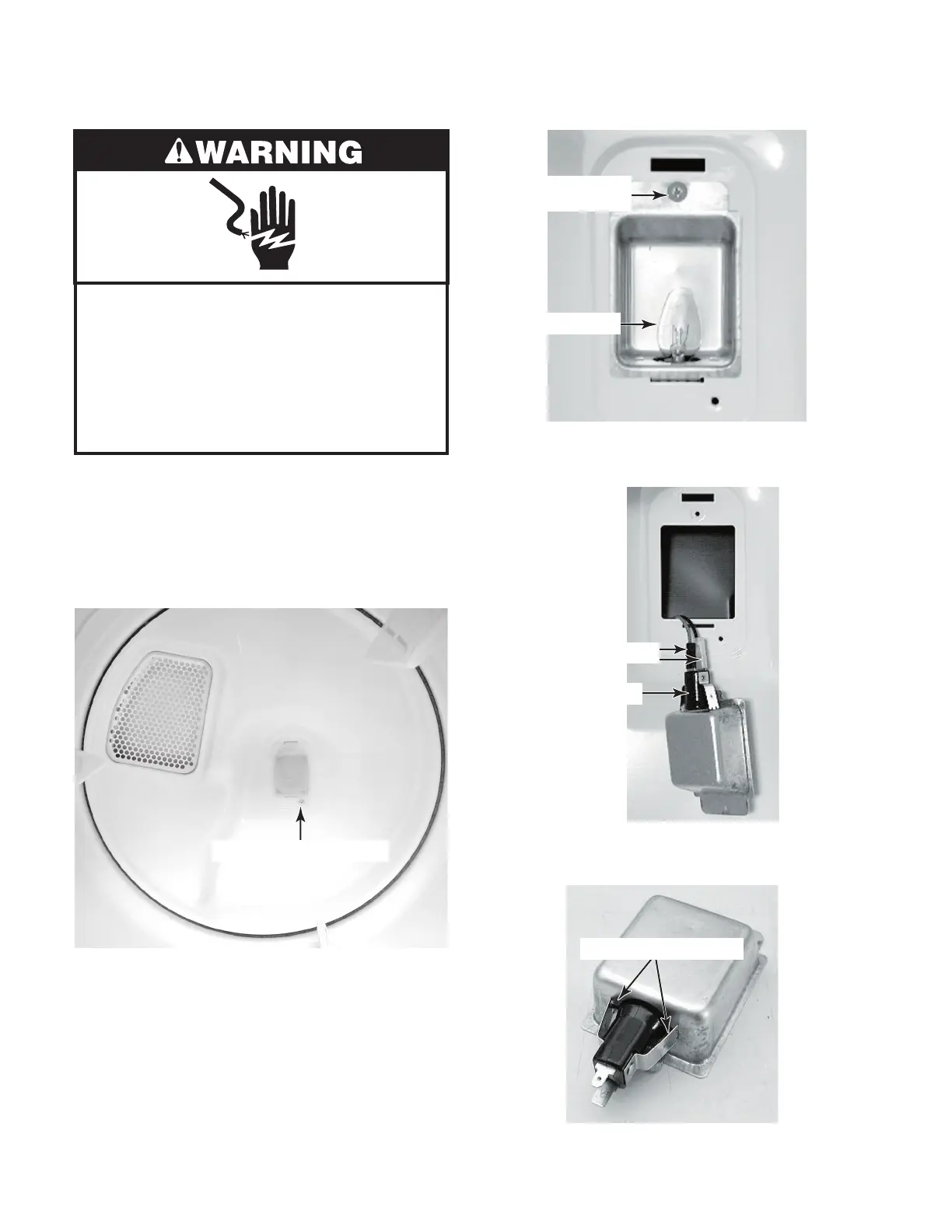

REMOVING THE DRUM LIGHT ASSEMBLY
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug dryer or disconnect power.
2. Turn off gas supply to dryer.
3. Open the dryer door.
4. Remove the screw from the drum light
lens and remove the lens.
Drum Light Lens Screw
5. Remove the bulb from the drum light
socket (see the top right photo).
6. Remove the screw from the drum light
holder and pull it forward so you can ac
-
cess the wires.
Drum Light
Holder Screw
Drum Bulb
7. Disconnect the wire connectors from the
light socket terminals.
Socket Wires
8. Squeeze the locking arms and remove
the socket from the drum light holder.
Socket
Socket Locking Arms
To Next Page
