6-1
SECTION 6
DIAGNOSTICS & TROUBLESHOOTING
Electric Dryers
DISPLAY DESCRIPTION EXPLANATION / RECOMMENDED PROCEDURE
PF
Power
Failure
PF flashes to indicate that a power failure
occurred while the dryer was running. Press
START to continue the cycle, or press STOP to
clear the display.
AF
Restricted
Airflow
Condition
AF flashes if a restricted airflow condition exists.
Check to make sure the lint screen is clean, the
door seal is in place and the vent is not
obstructed.
F-01
Primary
Control
Failure
F-01 flashes when there is a primary control
failure. Replace the machine control electronics.
F-02
Keypad/
User Interface
Failure
F-02 flashes when there is a stuck button or user
interface mismatch. This fault code will ONLY
appear when in the diagnostic test mode.
F-22
Exhaust
Thermistor
Open
F-22 flashes if the exhaust thermistor is open.
F-23
Exhaust
Thermistor
Shorted
F-23 flashes if the exhaust thermistor has
shorted. See TEST #4a.
F-24
Inlet
Thermistor
Open
F-24 flashes if the inlet thermistor is open.
This fault code will ONLY appear when in the
F-25
Inlet
Thermistor
Shorted
F-25 flashes if the inlet thermistor is shorted.
This fault code will ONLY appear when in the
F-26
Motor Drive
System Failure
F-26 flashes if there is a motor drive system
F-28
Moisture
Sensor Open
F-28 flashes if the moisture sensor strip is open.
This fault code will ONLY appear when in the
F-29
Moisture
Sensor
Shorted
F-29 flashes if the moisture sensor strip has
shorted. This fault code will ONLY appear when in
F-30
Restricted
Airflow
Condition
F-30 flashes if a restricted airflow condition
exists. This fault code will ONLY appear when in
the diagnostic test mode. Check to make sure the
lint screen is clean, the door seal is in place and
the vent is not obstructed.
See Accessing & Removing the Electronic
Assemblies.
See TEST #6.
See TEST #4a.
diagnostic test mode. See TEST #4a.
diagnostic test mode. See TEST #4a.
failure. See TEST #3a.
diagnostic test mode. See TEST #5.
the diagnostic test mode. See TEST #5.
F-40
Communication
Error
F-40 flashes if the communication between the
machine control and motor control is lost. See
TEST #3b.
F-41
Blower Motor
Failure
F-41 flashes when there is a blower motor failure.
See TEST #3b.
F-42
Undervoltage
Failure
F-42 flashes if the motor control detects a voltage
less than 90 VAC. See TEST #1, and
DIAGNOSTIC: Displaying Line Voltage.
Moisture Sensor
Strips
Door
Switch
Drum Light
Assembly
•
See Removing
the Back Panel
to access:
See Removing the Front Panel/Drum Assembly to access:
Moisture Sensors
Thermal Cut-off
• •
• •
•
•
• •
Exhaust Thermistor
High Limit Thermostat
Heater Assembly
Thermal Fuse
Inlet Thermistor Blower Motor (Dual Motor Model)
Heater
Assembly
Drive Motor
•
•
Belt Switch
•
Machine Control Electronics
User Interface Assembly
Motor Control Electronics
(Dual Motor Model)
•
•
See Accessing & Removing the
Electronic Assemblies to access:
Blower Motor
(Dual Motor
Model)

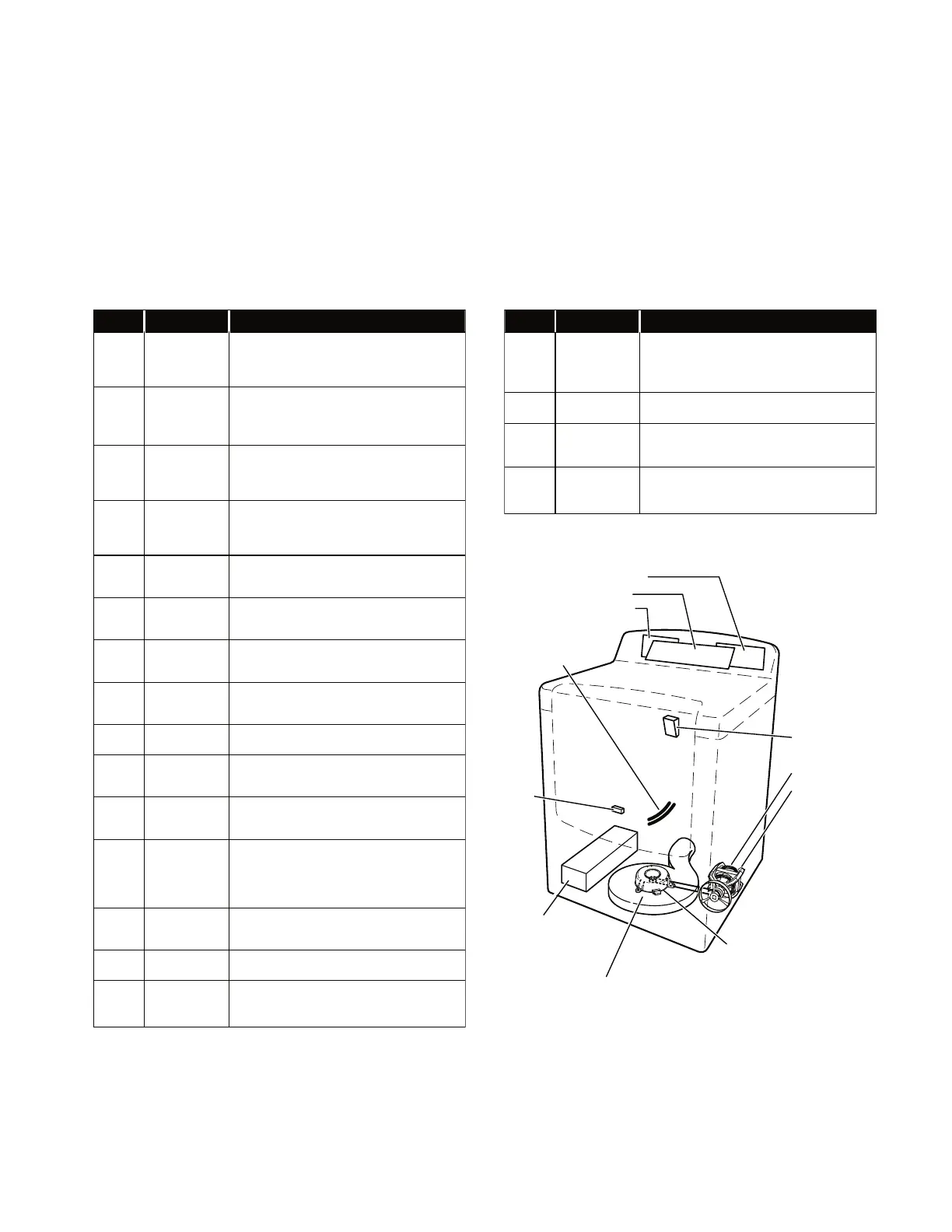

Figure 1.
Component locations.
DISPLAY FAULT CODES
The fault codes below would be indicated when attempting to start a drying cycle or after activat-
ing the diagnostic test mode.
F-43
Undervoltage
Warning
F-43 flashes if the motor control detects a low
voltage condition. The dryer will continue to run at
a set blower speed. See TEST #1, and
DIAGNOSTIC: Displaying Line Voltage.
F-44
Motor Control
Failure
F-44 flashes when there is a motor control
electronics failure. See TEST #3b.
F-45
Motor Control
Speed Sensor
Error
F-45 flashes when there is a motor control
electronics speed sensor failure. See TEST #3b.
F-46
Blower Motor
Error
F-46 flashes if the motor control detects an
over-current or an over-torque condition. See
TEST #3b.
DISPLAY DESCRIPTION EXPLANATION / RECOMMENDED PROCEDURE
