Installation and ConnectionInstallation and Connection

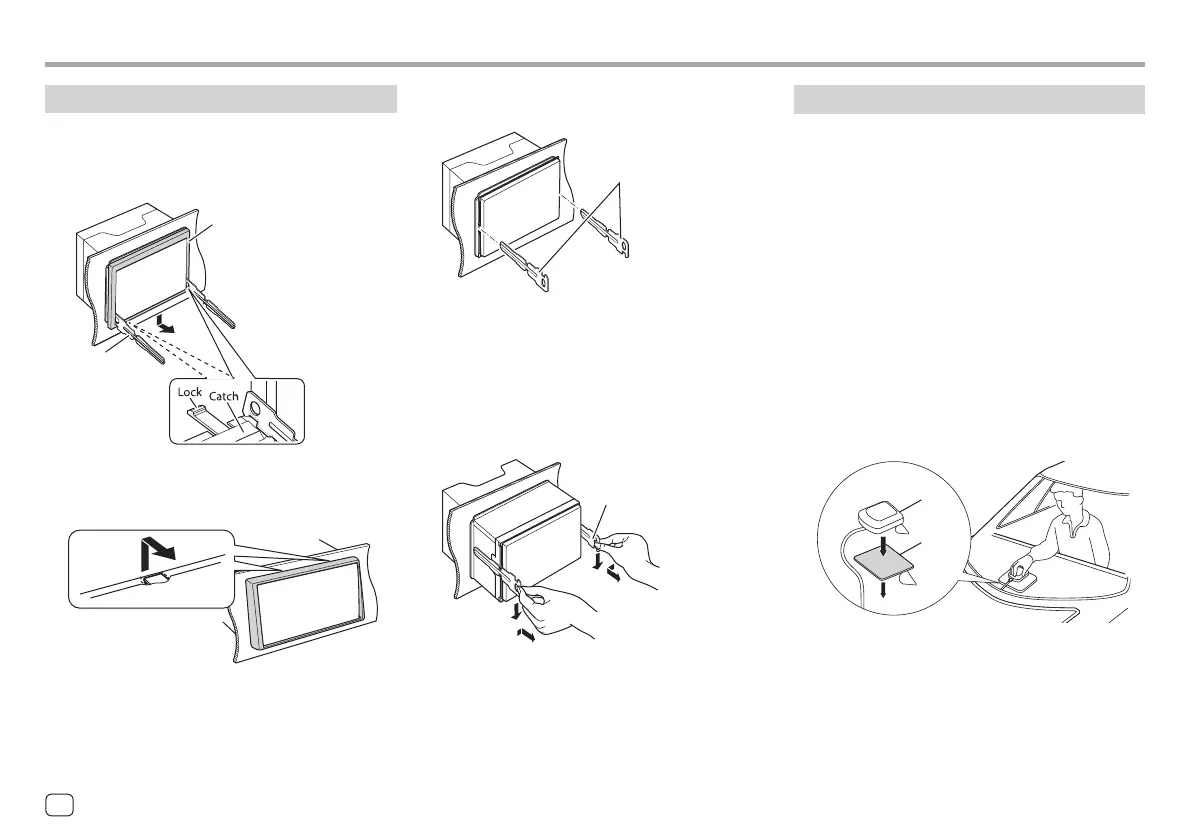

Removing the unit
1 Remove the trim plate ([) by inserting the
two extraction keys (
]) as illustrated.
[
]
2 When the lower level is removed, remove
from the upper two catches of the trim
plate (
[) .
The frame can be removed from the top side in the
same manner.
3 Insert the extraction keys (]) deeply into
the slots on each side.
]
4 Lower the extraction keys (]) toward the
bottom, and pull out the unit halfway
while pressing towards the inside.
Be careful to avoid injury from the catch pins on
the extraction key.
]
5 Pull the unit all the way out with your
hands, being careful not to drop it.
Installing the supplied GPS aerial
GPS aerial is installed inside of the car. It should be
installed as horizontally as possible to allow easy
reception of the GPS satellite signals.
1 Clean your dashboard or other surface.
2 Remove the separator of the metal plate
(
\).
3 Press the metal plate (\) down firmly
on your dashboard or other mounting
surface.
You can bend the metal plate (\) to conform to a
curved surface, if necessary.
4 Remove the separator of the GPS aerial
(
‘), and stick the aerial to the metal plate
(
\).
‘
\
50 ENGLISH
00DMX7722DABSE.indb5000DMX7722DABSE.indb50 2022/10/1716:202022/10/1716:20
