This section is for the professional installer.
For safety’s sake, leave wiring and mounting to professionals. Consult the
car audio dealer.
WARNING
• The unit can only be used with a 12V DC power supply, negative ground.
• Disconnect the battery’s negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car
chassis or Ground wire (black) to prevent a short circuit.
• To prevent short circuit:
– Insulate unconnected wires with vinyl tape.
– Be sure to ground this unit to the car’s chassis again after installation.
– Secure the wires with cable clamps and wrap vinyl tape around the wires
that comes into contact with metal parts to protect the wires.
CAUTION
• Install this unit in the console of your vehicle. Do not touch the metal parts
of this unit during and shortly after use of the unit. Metal parts such as the
heat sink and enclosure become hot.
• Do not connect the
wires of speakers to the car chassis or Ground wire
(black), or connect them in parallel.
• Mount the unit at an angle of less than 30°.
• If your vehicle wiring harness does not have the ignition terminal, connect
Ignition wire (red) to the terminal on the vehicle’s fuse box which provides
12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers,
etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car’s chassis,
then replace the old fuse with one that has the same rating.
Installation/Connection
Basic procedure
1 Remove the key from the ignition switch, then disconnect the
terminal of the car battery.
2 Connect the wires properly.
See “Wiring connection” on page30.
3 Install the unit to your car.
See “Installing the unit (in-dash mounting)” on page 29.
4 Connect the terminal of the car battery.
5 Press B SRC to turn on the power.
6 Reset the unit. (Page4)

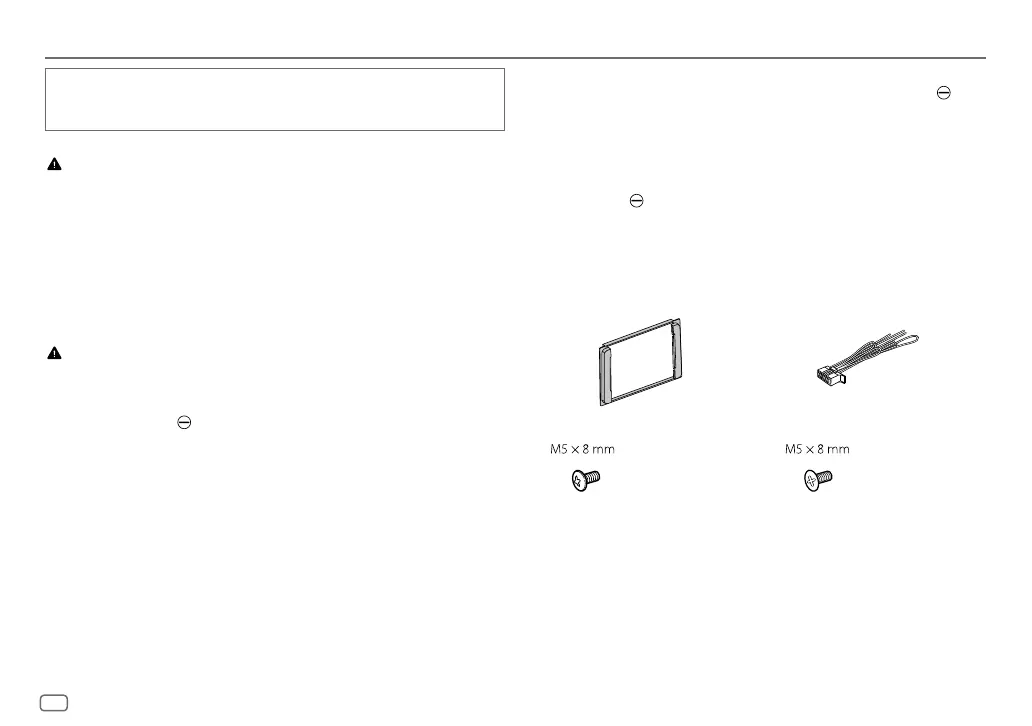

Part list for installation
(A) Trim plate (only for Toyota car) ( ×1 ) (B) Wiring harness ( ×1 )
(C) Round head screws ( ×6 )
( )
(D) Flat head screws ( ×6 )
( )
JS_KWD_DPX_M3200BT_MN_EN00.indd 28JS_KWD_DPX_M3200BT_MN_EN00.indd 28 8/9/2019 10:07:04 AM8/9/2019 10:07:04 AM

Kenwood DPX-M3200BT Specifications

General

USB version	2.0
ISO connector	Yes
Bluetooth range	10 m
Bluetooth version	4.2
Bluetooth profiles	A2DP, AVRCP, PBAP
Line outputs (RCA)	2
USB ports quantity	1
DIN size	2 DIN
Impedance	40 Ω
Clock mode	24h
Output power	50 W
Product color	Black
Volume control	Touch
Frequency range	30 - 15000 Hz
Disc types supported	-
Audio output channels	4.0 channels
Signal-to-Noise Ratio (SNR)	40 dB
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Display type	LCD
On Screen Display (OSD) languages	DUT, ENG, ESP, FRE
Cables included	DC
Operating temperature (T-T)	-10 - 60 °C
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	24

Weight and Dimensions

Depth	158 mm
Width	182 mm
Height	111 mm
Weight	1700 g
