B3000 SERVICE MANUAL
60-200807-000, REV C
28
II. Construction
1.
The Modules

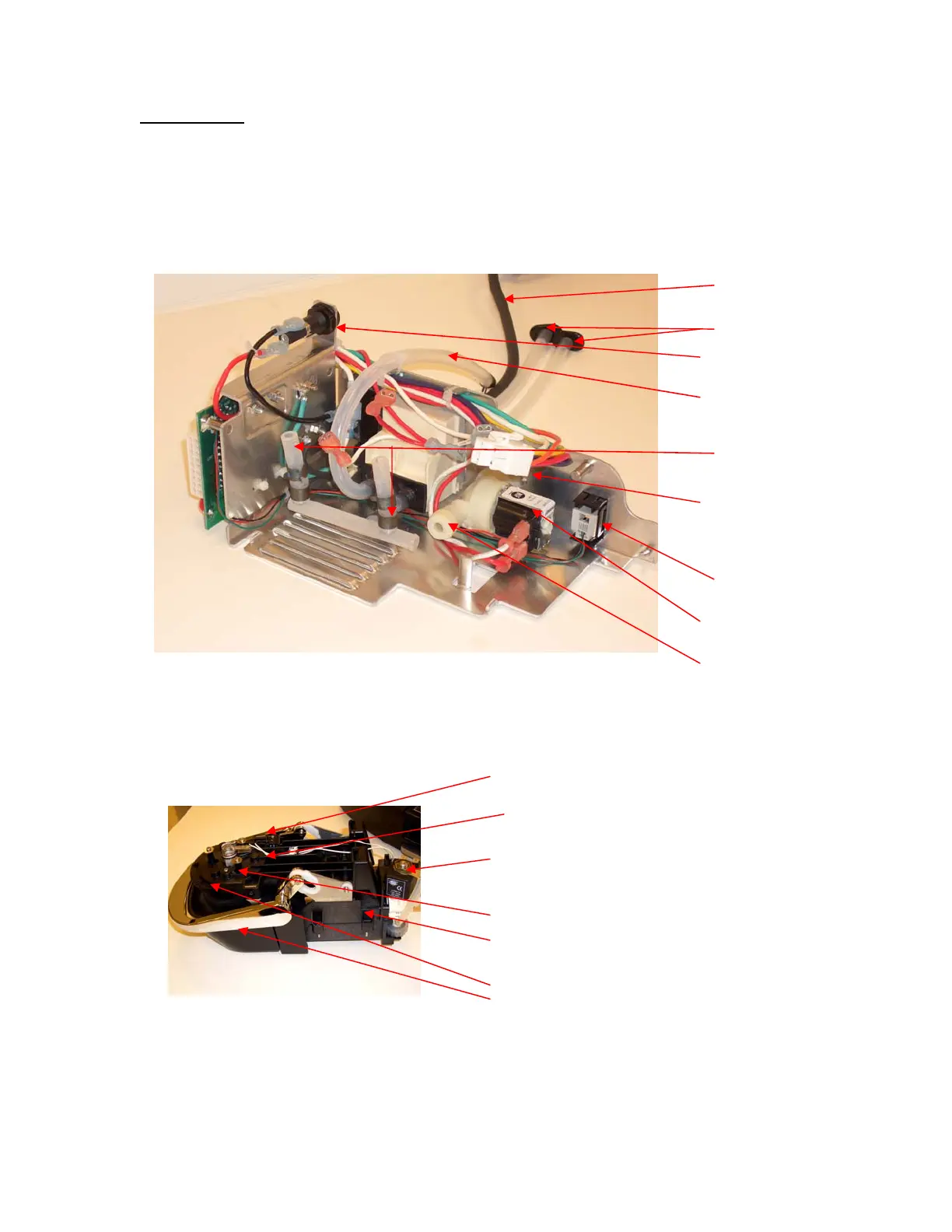

What follows are images of the individual modules to
show their general confi
guration. Not all of the
parts in the module are listed.
A.
Power
– located at lower rear of brewer:
B.
Puncture Mechanism
– located at the upper right front of brewer:
PIVOT PLATE
SENSOR HARNESS ASSEMBLY
MICRO SWITCH
HOT WATER DISPE
NSE VALVE
PRESSURE
PLATE
FRAME PUNCTURE MECHANISI
M
ENTRANCE NEEDLE AS
SEMBLY
HANDLE
POWER CORD
DRAIN TUBES
FUSE HOLDER
COLD WATER TANK
DRAIN TUBE
WATER PUMP
MANIFOLD
HOT WATER TANK
HARNESS
COIN
CHANGER
CONNECTION
INLET VALVE
TUBE CONNECTOR
(CWT)
27
29
Table of Contents
Default Chapter
3
Table of Contents
3
Operation
5
B3000 Brewer Overview, Brewer Schematic / Schematic Legend
5
B3000 Brewer Water Flow Mechanisms
6
Water Filling
6
The Cold Water Tank
6
The Hot Water Tanks
6
Dispensing Hot Water
7
Brewer Schematic
8
Brewer Schematic Legend
9
Brewer External Components
10
The Keurig K-Cup Portion Pack
12
Appliance Safety
13
Power Supply
13
Brewer Setup
13
Unpacking Instructions
13
Filter Requirements
14
Getting Started
14
User Interface & Brewing Procedure
15
Priming the Brewer
15
Menu Mode
19
To Enter the MENU MODE
19
Draining the Brewer
26
Emptying the K-Cup bin
27
Construction
28
The Modules
28
Power
28
Puncture Mechanism
28
Hot Water Tank
29
Cold Water Tank
29
Control Panel
30
Cold Water Pump
30
Front Door
31
Drip Tray
31
Bin Full Sensor Harness (Part of Wire Harness Module)
31
Main Pcb
32
Replacement Part Numbers List
33
Servicing
34
Preventive Maintenance
34
Troubleshooting
34
Diagnostics/Error Codes
35
Removing/Installing Modules
36
Removal of Back and Side Panels
36
Power Module
37
Puncture Mechanism Module
41
Hot Water Valve Assembly
44
Hot Water Tank Module
46
Cold Water Tank Module
49
Cold Water Pump Module
52
Control Panel Module
54
Front Door Module
56
Main Pcb Module
58
Bin Full Sensors
59
To Remove the RIGHT Side bin Sensor
60
De-Scaling Your Brewer
62
De-Scaling Procedures
62
Fill and Clean
62
Sanitizing / Cleaning the Puncture Mechanism
64
Sanitizing/Cleaning the B3000 Inlet Needle and Gasket
64
Accessories
72
Introduction
73
Coin Changer Accessory
73
The B3000 Coin Changer Accessory
74
Installing the Coin Mechanism
77
Procedure for Setting the Brewer to Coin Operation
79
Platform Unit
82
Contents of the Platform Kit #5558
82
Brewer Placed on Platform
82
Install Chute
83
Chute in Position
83
Completed Assembly
84
BIT Testing
85
Manufacturing Built in Test (BIT)
85
