B3000 SERVICE MANUAL
60-200807-000, REV C 56
I. FRONT DOOR MODULE (Located at the bottom of the brewer in the front).
NOTE: To remove the Front Door Module you MUST first remove the Control Module screws and
gently push the module up from the chassis to allow the TOP hinge pin to be removed. You do not need
to remove the Control Module or disconnect any connections.

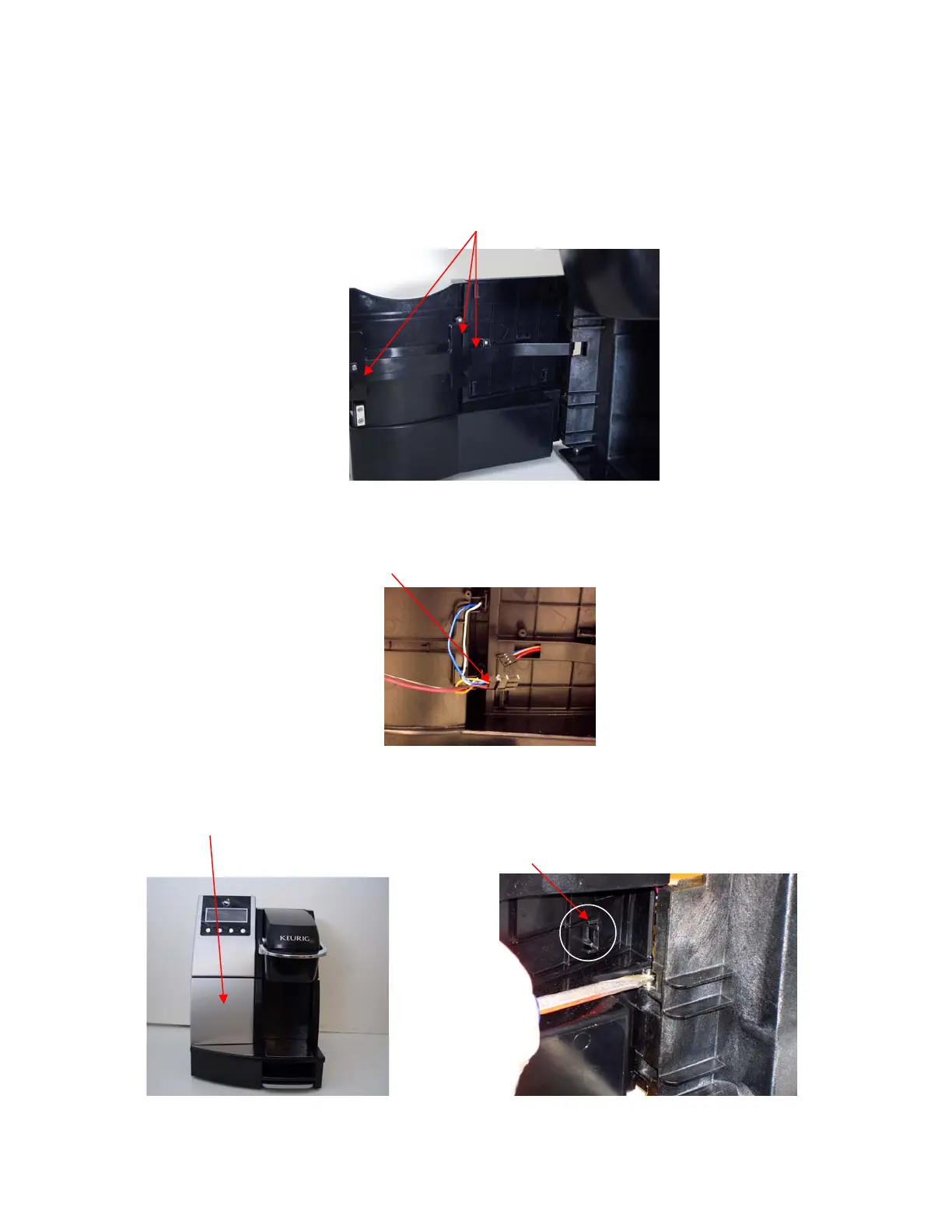

1. Open the K-Cup bin door. Locate the wire harness cover plate and the three screws that secure
this cover
2. Remove the screws and cover plate.
3. Disconnect the cup sensor harness connection.
4. Open the Bin Door in order to remove the front decorative cover plate by releasing the plastic
tabs on the back of the plate.
One of five tabs
