B3000 SERVICE MANUAL
60-200807-000, REV C 44
D. HOT WATER VALVE ASSEMBLY (Located at the back of the Puncture Mechanism)
See REMOVAL of OUTER PANELS (page 36). After completion of panel removal, the technician
must attach an ESD wrist strap to themselves and the metal base plate of the brewer.
See REMOVAL of PUNCTURE MECHANISM (page 41).

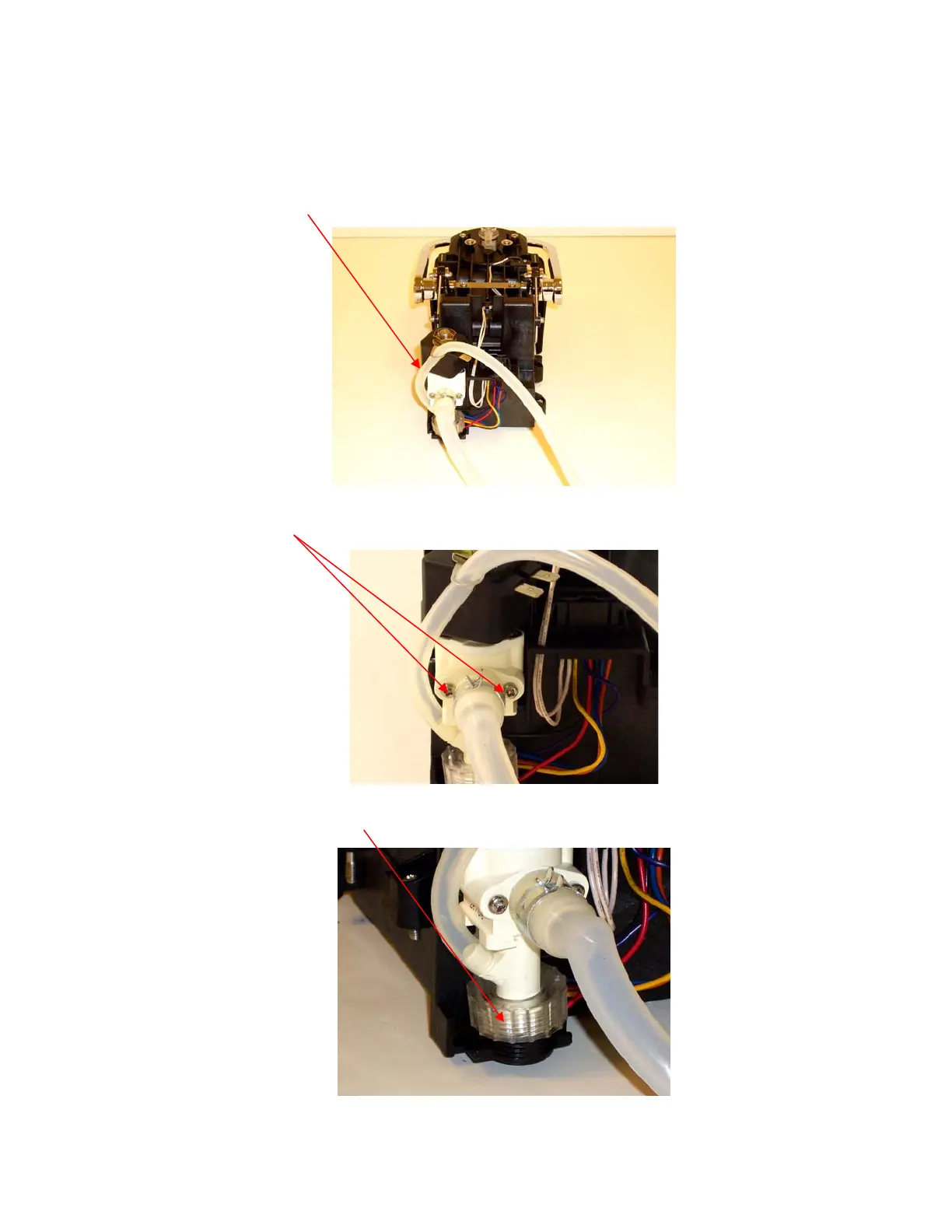

1. Locate the Hot Water Valve on the back of the Puncture Mechanism.
2. Remove the two self tapping Phillips screws.
3. Loosen the large plastic nut at the bottom of the valve assembly.
To Next Page
