B3000 SERVICE MANUAL
60-200807-000, REV C 54
H. CONTROL PANEL MODULE (Located on the left front of the brewer)
CAUTION: The technician must attach an ESD wrist strap to themselves and the metal base
plate of the brewer or earth ground when replacing this module.
1. Open the K-Cup Bin door.

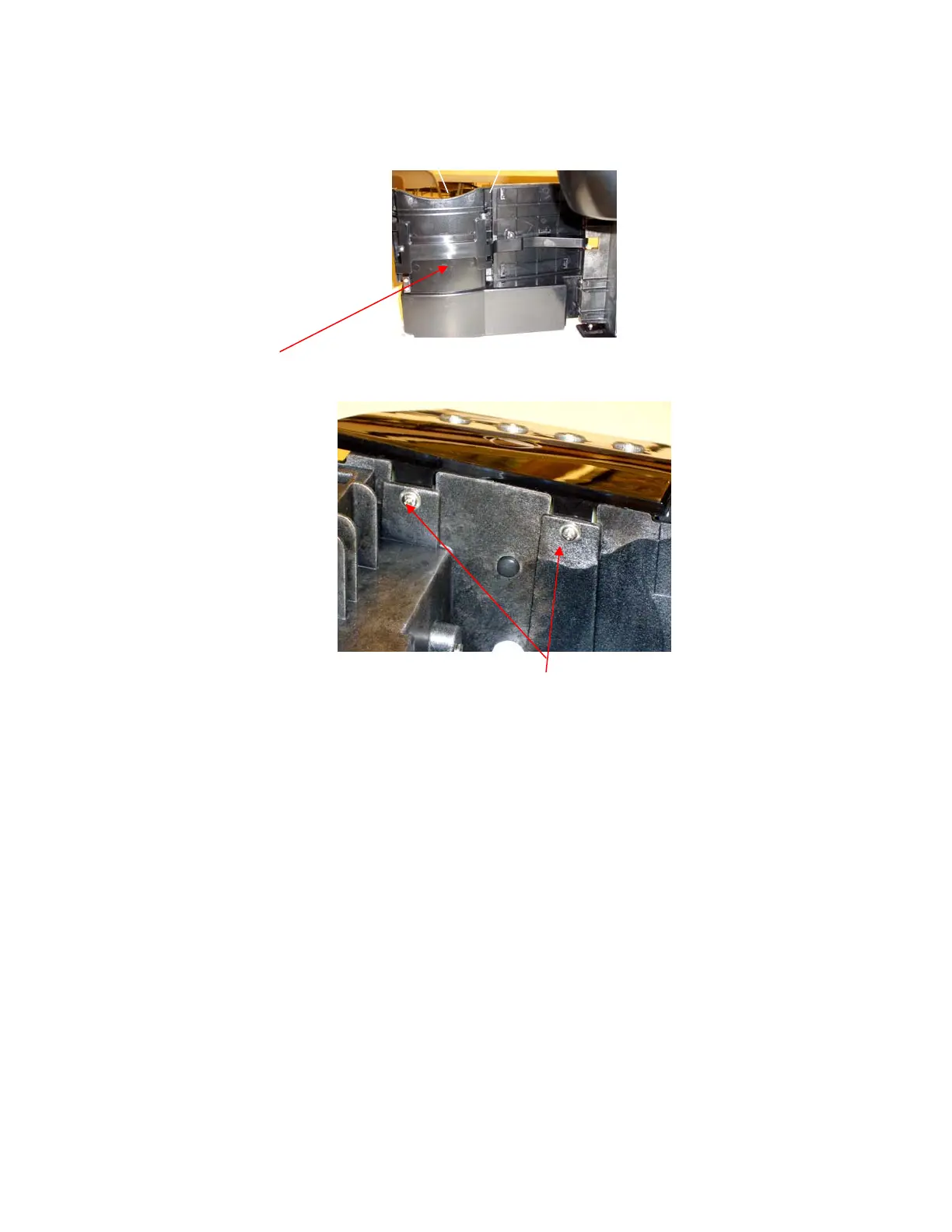

2. Tip the brewer back slightly and locate the two screws under the Control Panel. Remove these
screws completely.
3. Gently pull out and up on the module to remove from the brewer.
4. Look at the back of the Control Panel module, you will see the wire harness connector and a
hose union.
