B3000 SERVICE MANUAL
60-200807-000, REV C 36
4. Removing/Installing Modules
The B3000 brewing system is modular in design. This design facilitates ease of repair at customer
locations. There are no component level repair capabilities for this brewer.
The following describes the removal of each of the modules.
NOTE: BOTH THE HOT AND COLD WATER TANKS MUST BE DRAINED
AND THE UNIT UN-PLUGGED BEFORE ANY MODULE IS REMOVED.

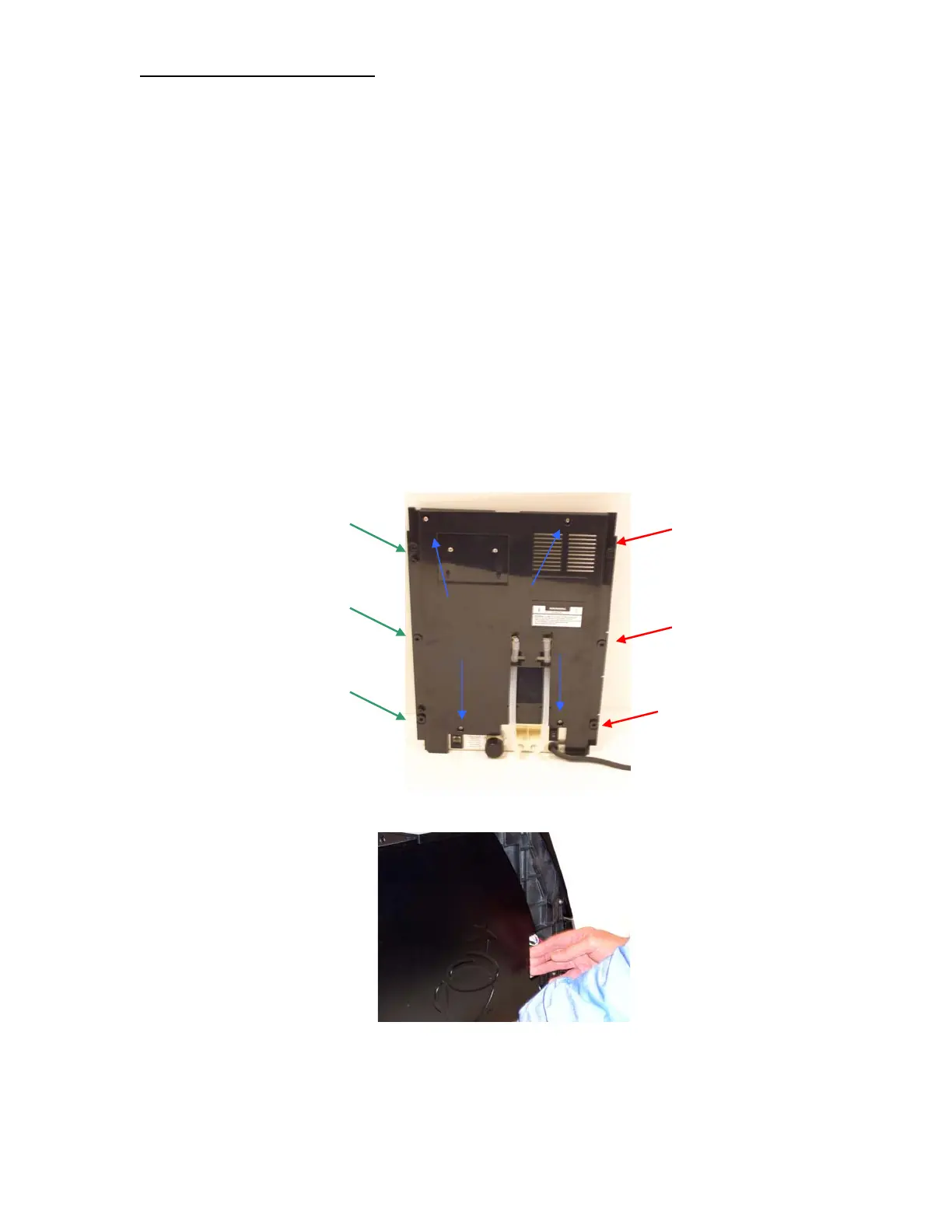

A. REMOVAL of BACK and SIDE PANELS
For Right side panel removal, locate the three screws on the left side of the back panel loosen the screws
and pull side panel back for removal.
For Left side panel removal, locate the three screws on the right side of the back panel loosen the screws
and pull side panel back for removal.
For Back Panel removal when both side panels are removed loosen the four screws on the back panel
and remove.
NOTE: All screws are captive they cannot be removed from panels
Left side
Right side
