4-20 DK35/40/450L
SEAT BELT ADJUSTMENT
1. Check if the seat belt is not twisted.
Then place the belt and the latch plate
vertically and adjust the belt length so
that there is enough space in a size of
the fist between the waist and the belt.
2. Insert the latch plate into the buckle
until it clicks. Position the lap belt por-
tion as low as possible across your
hips, not across your abdomen. This
lets your strong pelvis bones take the
force of a crash.
3. Press the button on the buckle to re-
lease the seat belt.
(EU TYPE)
615O443A

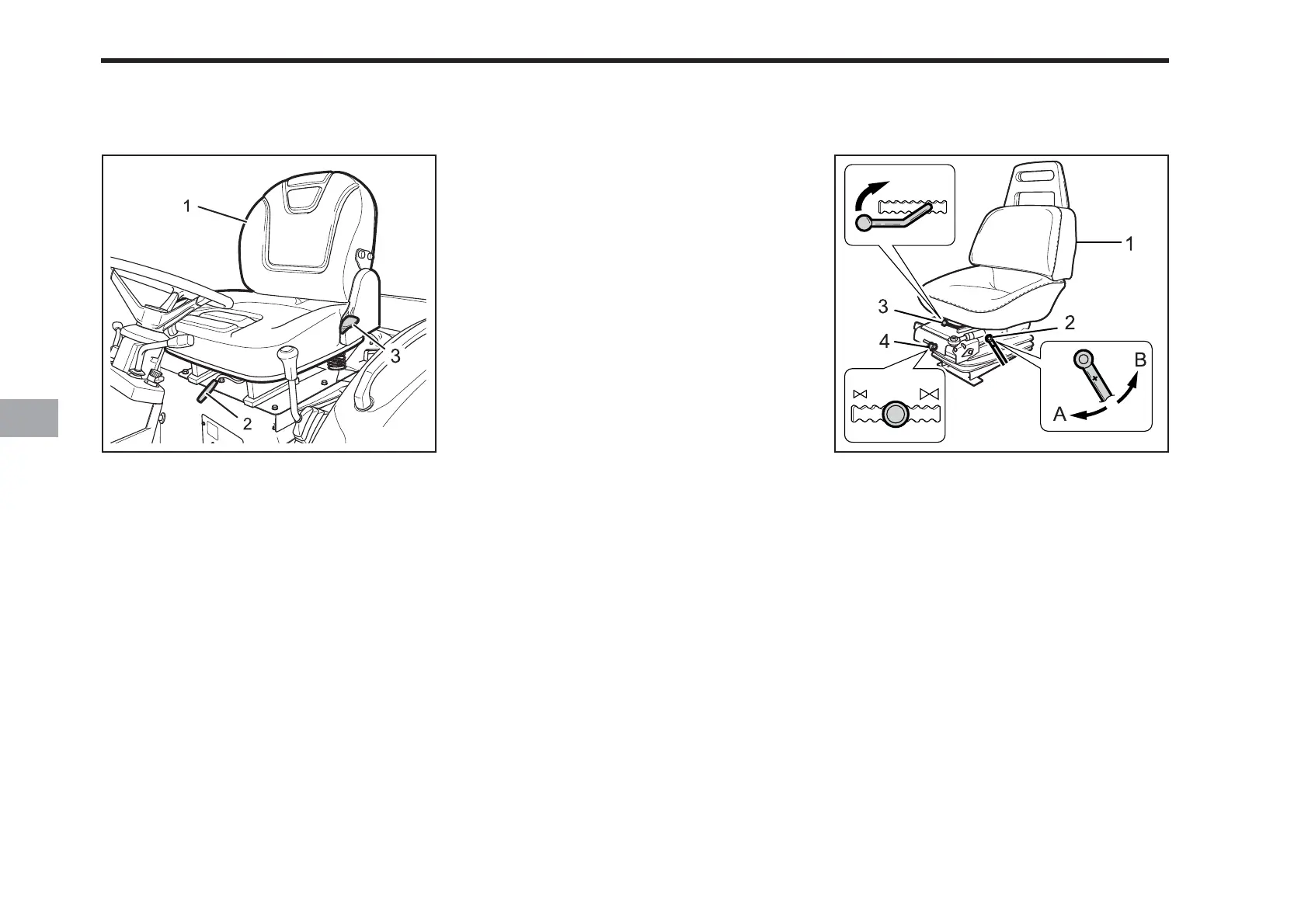

(1) Seat.
(2) The lever which control the seat position
(up or down) in accordance with operator’s
weights. Use the lever when you change
the seat position.
(3) When you change the seat position (front or
rear), pull the lever up and push or pull the
seat to front or rear direction.
(4) When you change the suspension of the
seat, you can adjust the suspension of the
seat using the lever. Pull the lever front
direction and move the lever left or right.
(A) (+) Heavy (B) (-) Light
The operator’s seat can be adjusted for-
ward and backward in 100 mm (3.9 in.)
range by pulling the seat sliding lever.
The seat has been especially designed
so that it can be adjusted three stages,
forward or backward, to fit the physique
of the operator.
615O442A
SEAT
(1) Seat (2) Seat Ajusting Lever
(3) Seat Reclining Lever
SEAT SLIDING ADJUSTMENT
To adjust the seat sliding, move the seat
to the desirable position while pulling the
lever located under the front of the seat.
After adjustment, gently rock in the seat
to make sure it is securely locked.
SEATBACK RECLINING ADJUSTMENT
To adjust the seatback reclining angle,
lean forward and pull the lever upwards.
Pull the lever upwards, adjust the
seatback angle then release the lever.
After adjustment, check if the lever is
returned to the original position and seat
is securely locked.
(USA, AU TYPE)
