9.2 Installation of recoil starter

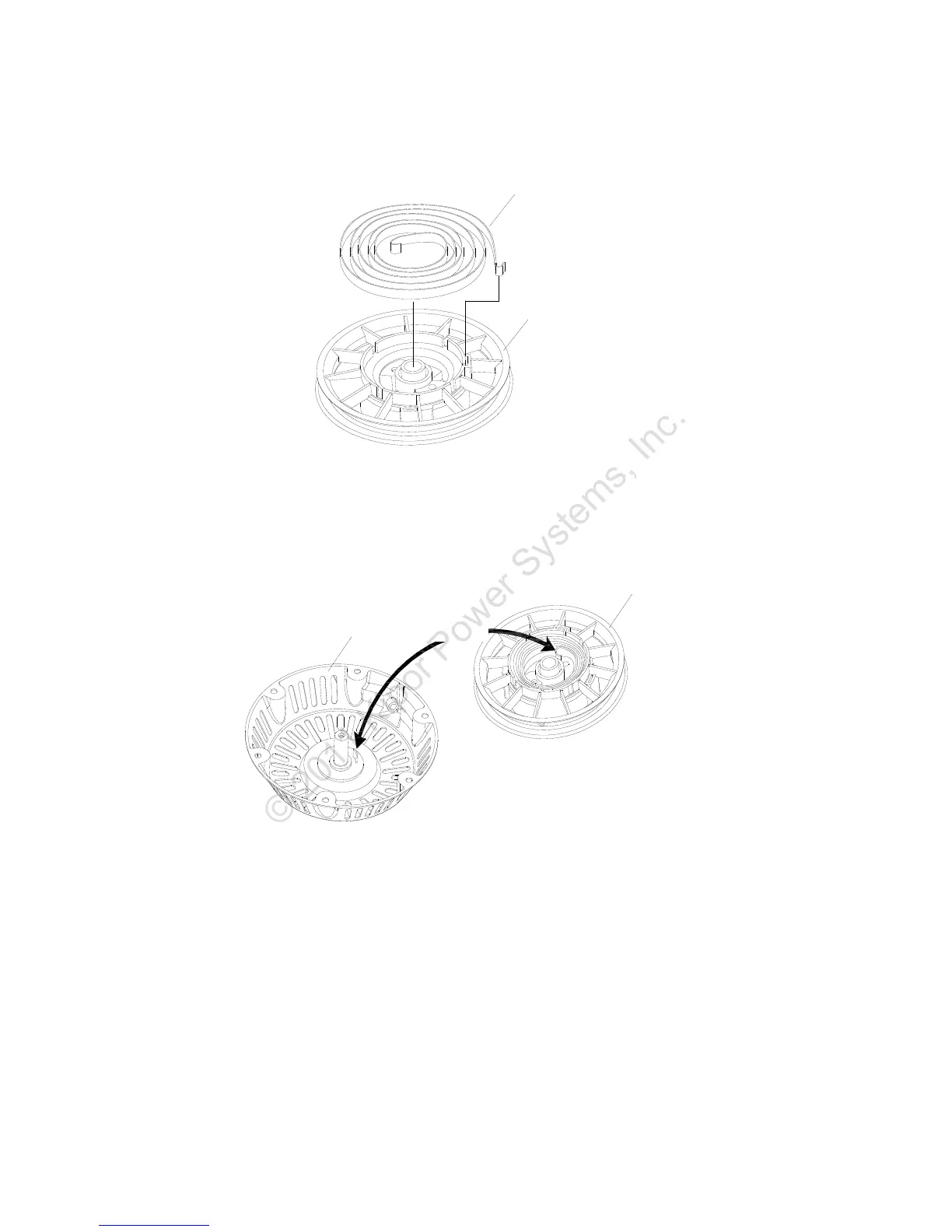

(1) Set the spring into the starter reel, and hang the spring outer hook inside the reel groove.
弹簧
起动器卷轴
(2) Smear lubrication grease on the starter outer shell claw, install the starter reel. Revolve the
reel anticlockwise to hang the spring inner hook on the starter outer shell claw.
起动器卷轴
起动器外壳
(3) Make a knot at one end of the rope, pass the other end through the reel hole. Wind the reel
anticlockwise 4 turns to fix the reel.
Spring
Starter reel
Starter reel
Starter shell
