(4) Main winding

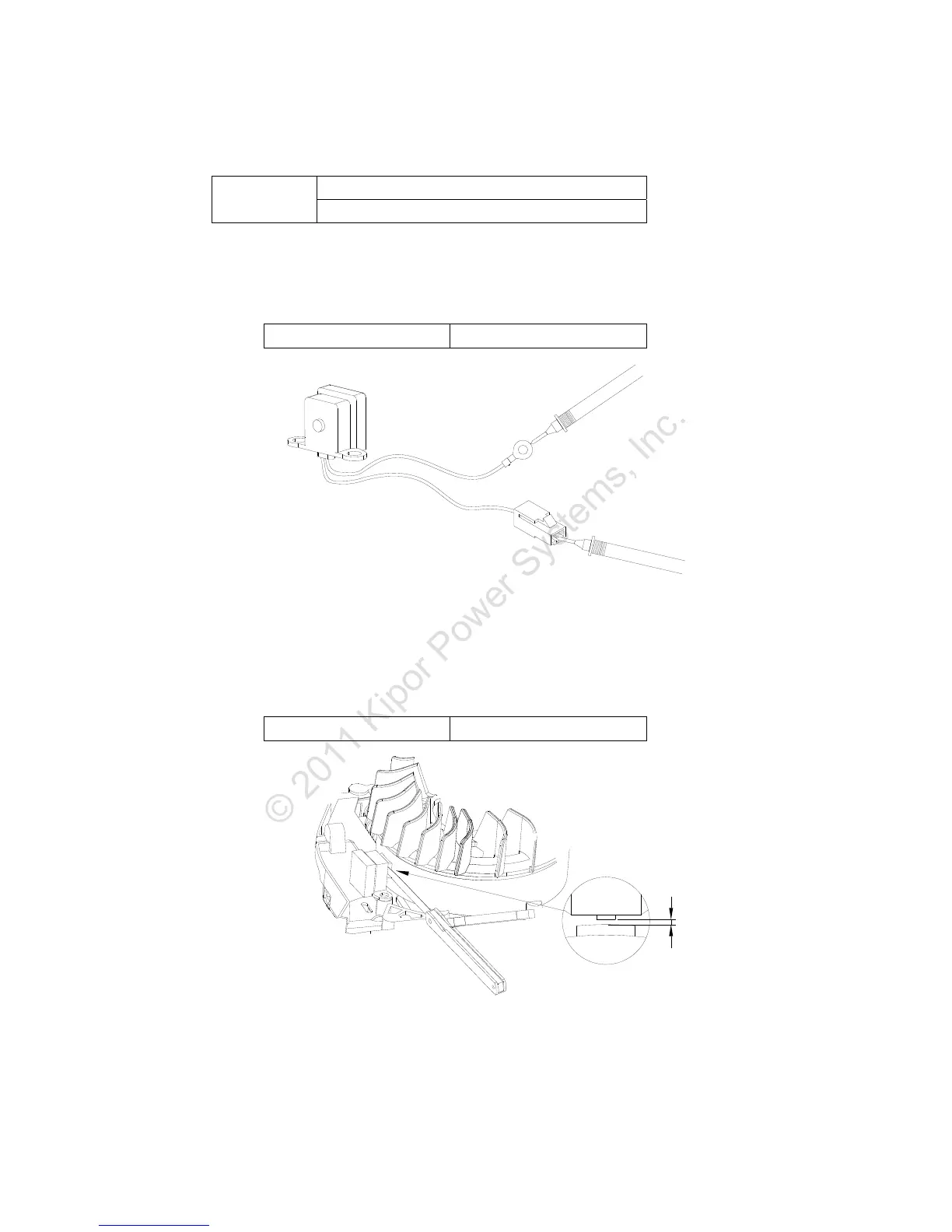

Measure the resistance among the main winding terminals.
Resistance
Black-Black-Black
1.35~1.75
(5) Trigger
Attach the two testers in the trigger, and measure its resistance.
Trigger resistance 80-130Ω
10.3 Adjustment
Adjust the clearance between trigger and the projection part of rotor.
Trigger clearance 0.50-0.75mm
Insert a feeler gauge between the trigger and the projection part of the rotor; loosen the trigger
fixed plate bolt to adjust the clearance slightly. Never move the plastic part of trigger.
