Kipor IG2000P Shop Manual

65
10. Generator/ Trigger

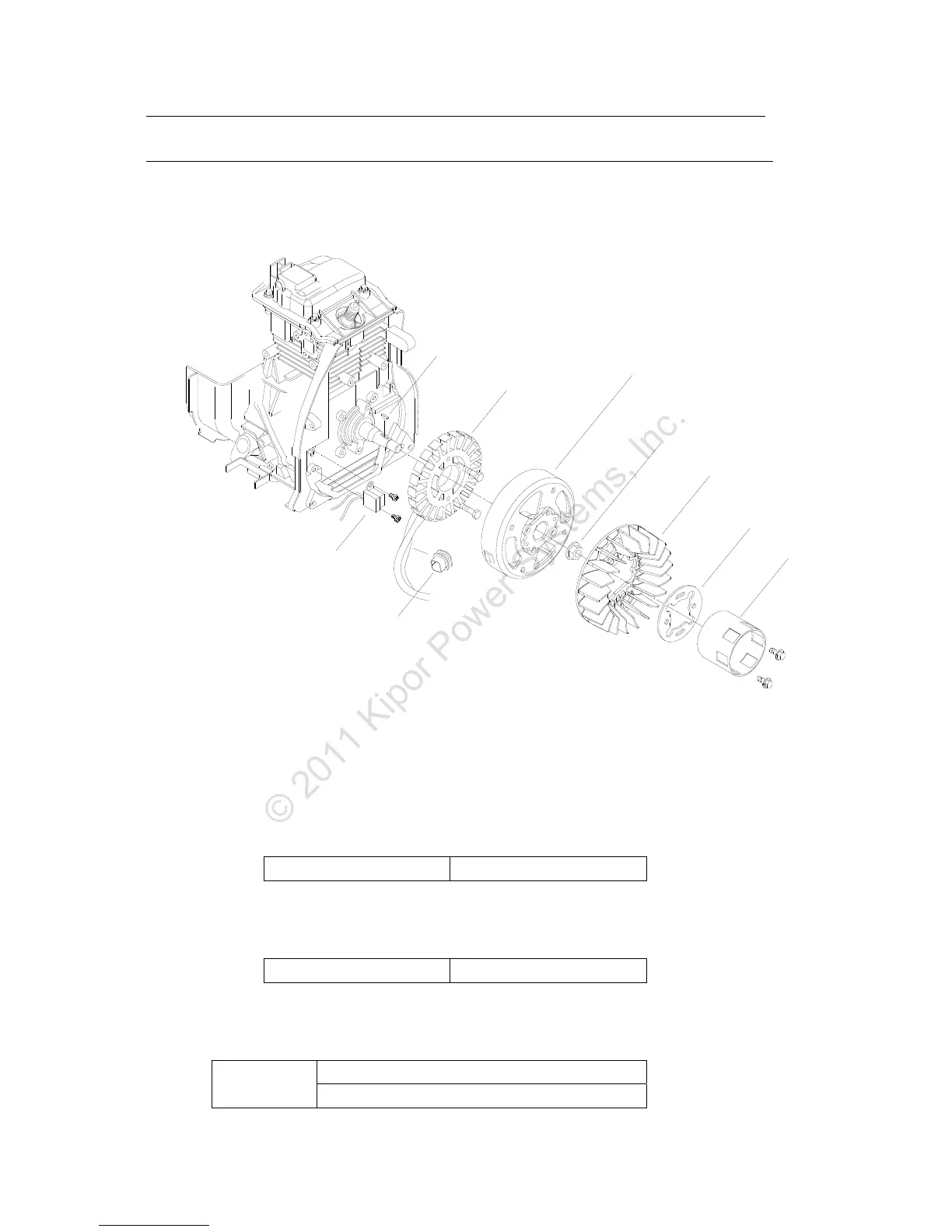

10.1 Alternator
Disassembly/Reassembly
电机定子
组装：
安装电机转子时清除
锥面部分油污和脏物。
M12
X1.25 70-80 N.m
风叶轮
风叶轮压板
启动拉轮
电机转子
飞轮螺母
组装：
检查安装是否正确，
注意不要漏装。
半圆键
脉冲线圈
（触发头）
电机线密封圈
10.2 Inspection
(1) Ignition winding
Measure the resistance between the green terminal and yellow/green terminal.
Resistance 0.40-0.55Ω
(2) Outer charging winding
Measure the resistance between the two blue terminals.
Resistance 0.12-0.15Ω
(3) Sub winding
Measure the resistance between the two sub winding terminals.
Resistance
White-White
0.15~0.30
Key
Rotor
Stator
Flywheel nut
M12X1.25 70-80 N.m
Fan
Fan pressure plate
Pull wheel
Seal ring
Pulse coil (trigger)
