Disassembly and reassembly of diesel engine
1. Basic procedure of disassembly
(1) Prepare necessary room or container to store parts before disassembly, put each kind of bolt
and screw as well as related parts together, in order to prevent possible mistaken.
(2) Make sure what problem there is before disassembling; avoid mistaken disassembly.
1.1 Disassemble muffler weldment
(1) Loosen the four M8 nuts which fix the muffler weldment.
(2) Remove the muffler weldment from the cylinder cover.

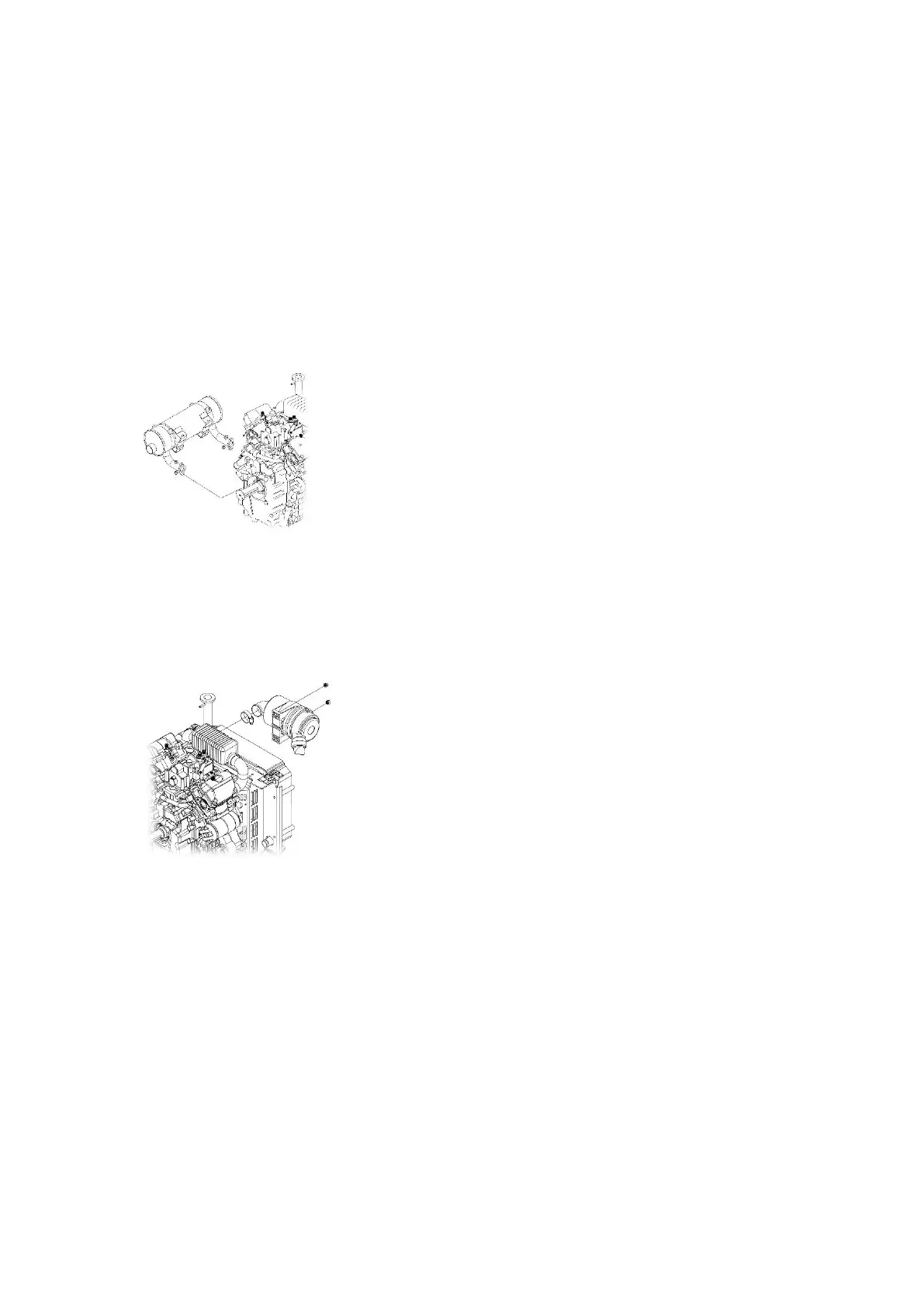

Refer to picture 11
picture 11
1.2 Disassembly the air filter assembly
(1) Loosen the two M8 nuts which fix the air filter seat.
(2) Loosen the hoop of the connection hose.
(3) Remove the air filter assembly.
Refer to picture 12
picture 12
1.3 Disassemble the heat abstraction water tank and overflow tank parts
(1) Loosen the four M8X10 bolts and nuts which fix the heat abstraction water tank parts
(2) Loosen the hoop which fixes the inlet/outlet hose of heat abstraction water tank
(3) Remove the heat abstraction water tank parts
(4) Remove the overflow tank.
Refer to picture 13
