Kipor KM2V80 User Manual

rockshaft diameter
0.045

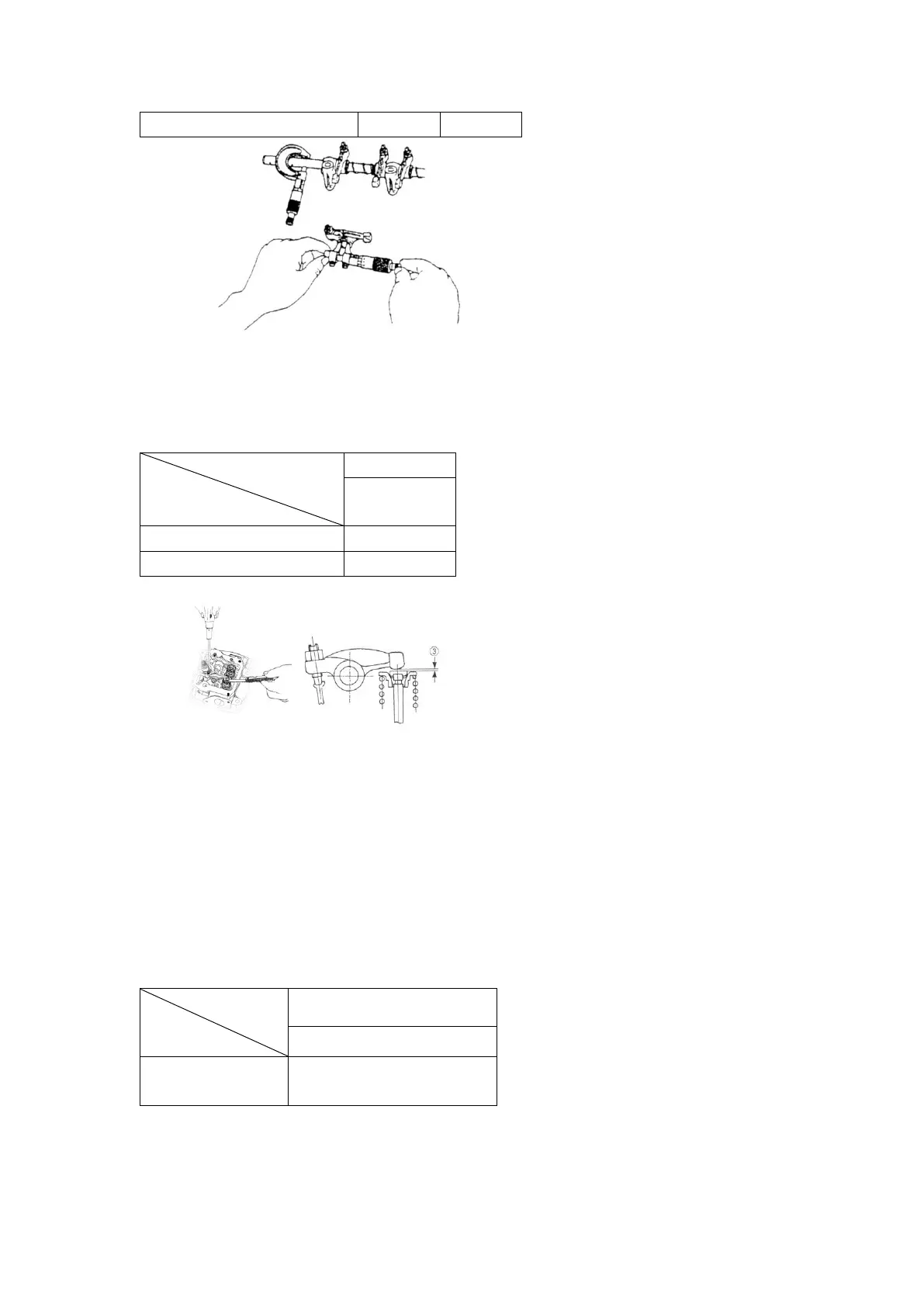

Picture 36 Measure lube oil clearance between rockshaft and valve rocker arm hole
1.6 Adjust valve clearance
Adjust valve clearance when the generator is at cooling state. Refer to picture 37
Table 10 Clearance of inlet and exhaust valve
Model
Item
KM2V80
Standard
Inlet valve clearance
0.10～0.15
Exhaust valve clearance
0.10～0.15
Picture 37 Adjust valve clearance
1.7 Measure cylinder compression clearance height
(1)Disassemble cylinder cover, put fuse ф1.5×10mm of the same height on the four points of
piston top, reassemble cylinder cover, screw on cylinder cover bolts according to the stipulated
order and torque.
(2)Revolve crankshaft in anticlockwise direction, flat fuse, disassemble cylinder cover and take
out the flat fuse, and measure its thickness. Take the average valve of four fuses as cylinder
compression clearance. Refer to picture 38.
Table 11 Piston top clearance
Model
Item
KM2V80
Standard
Piston top
clearance
0.88～1.20
