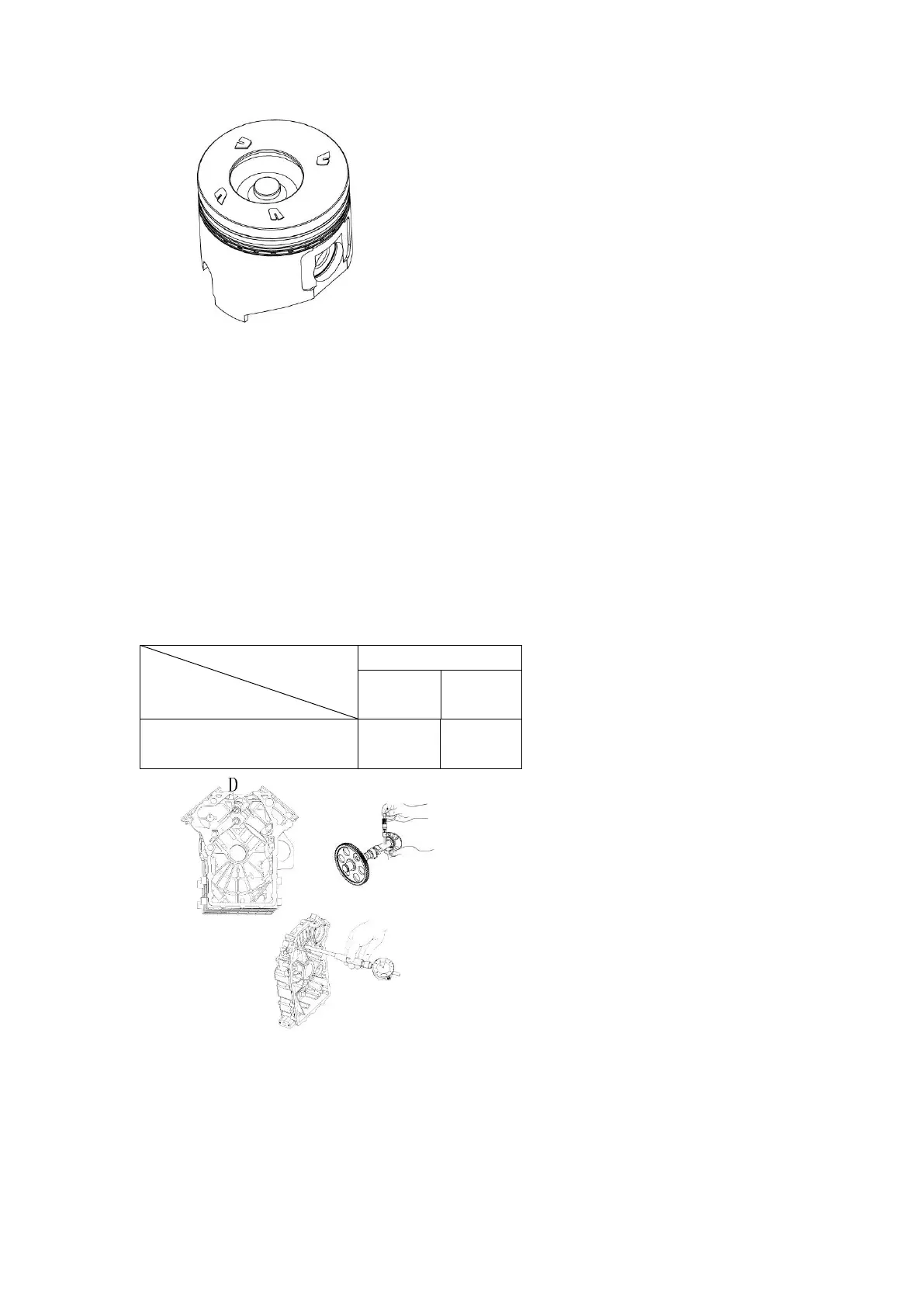

Picture 38 Measure piston top clearance
2 Camshaft parts
2.1 Lube oil clearance of camshaft axial diameter
Measure the camshaft journal with outside micrometer, measure inside diameter of camshaft
hole with inside diameter lever meter, account the lube oil clearance. If the measured valve
exceeds the limitation valve, please change camshaft. Refer to picture 39.
Table 12 Fitting clearance between camshaft aperture and camshaft axial diameter
Model
Item
KM2V80
Standard
Service
limitation
Camshaft aperture and
camshaft axle diameter
0.032-
0.061
0.15
Picture 39 Measure lube oil clearance of camshaft axial diameter
2.2 Height of cam
Measure the height of cam at its top point with outside micrometer, if the measured height
exceeds the limitation valve, please change for a new camshaft. (Height for inlet/exhaust cam is
31.13
+0.03
-0.50
). Refer to picture 40.
