1.17 Disassemble the camshaft bearing cover and oil supplying camshaft.
(1) Loosen the two M6X16 inner hexagonal bolts which fix the camshaft bearing cover
(2) Remove the camshaft bearing cover and oil supplying camshaft.
(3) Screw on the bearing cover.

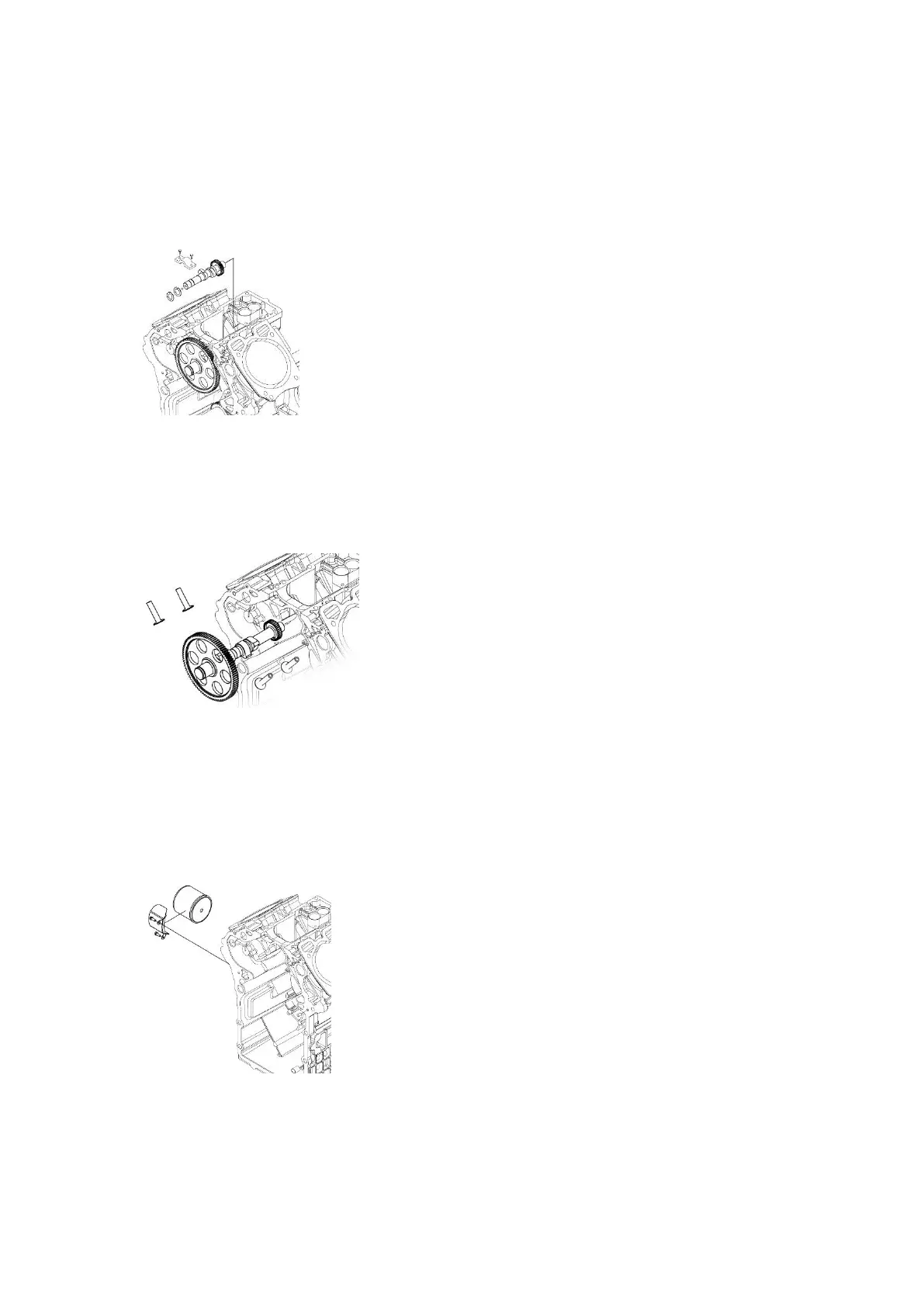

Refer to picture 27
picture 27
1.18 Disassemble the camshaft and valve tappet
(1) Draw out the camshaft parts from the crankcase.
(2) Take out the four valve tappets.
Refer to picture 28
picture 28
1.19 Disassemble the oil filter baffler weldment and oil filter parts
(1) Loosen the two M6X12 bolts which fix the oil filter baffler weldment and remove the oil filter
baffler weldment.
(2) Loosen the oil filter parts with a special spanner and remove the oil filter parts.
Refer to picture 29
picture 29
1.20 Disassemble the piston connection rod assembly
(1) Loosen the connection rod bolts of 1
st
cylinder and 2
nd
cylinder to remove the connection rod
cover.
To Next Page
