Kipor KM2V80 User Manual

Table 23 Clearance between rotor pump shaft hole and rotor pump shaft
Model
Item
KM2V80
Standard
Maintenance
limitation
Clearance
between rotor
pump shaft
hole and rotor
pump shaft
0.016～0.045
0.10

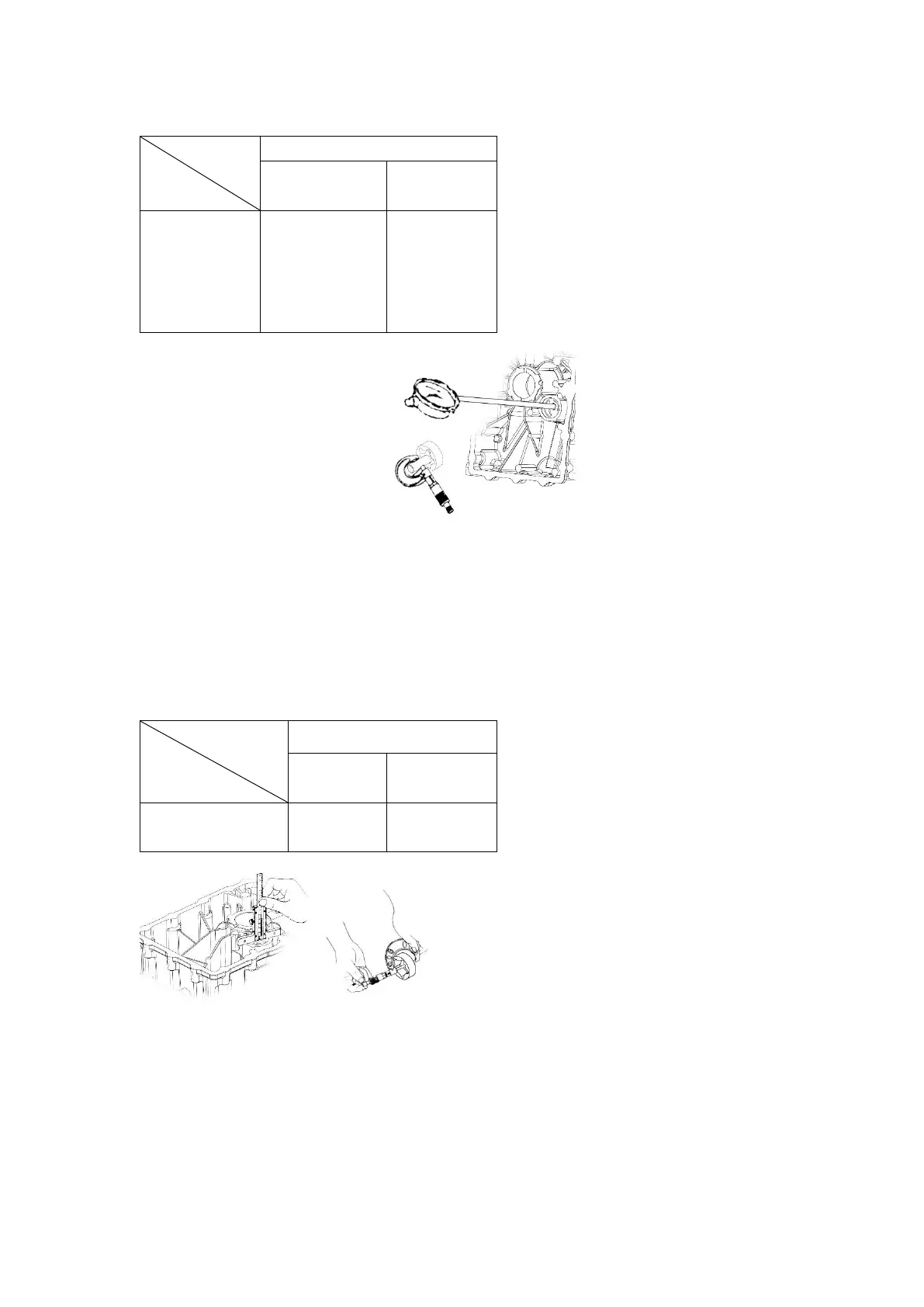

Picture 51 Measure the clearance between rotor pump shaft hole and rotor pump shaft
6.3 Axial clearance of oil pump
(1) Measure the depth of oil pump hole on the crankcase cover with depth meter.
(2) Measure the axial thickness of inner/outer rotor with outside micrometer.
(3) Account the axial clearance. If the measured value exceeds the limitation value, please
change the oil pump rotor parts. Refer to picture 52.
Table 24 Axial clearance of oil pump
Model
Item
KM2V80
Standard
Maintenance
limitation
Axial clearance of
oil pump
0.04～0.10
0.15
Picture 52 Axial clearance of oil pump
7. Cooling system
