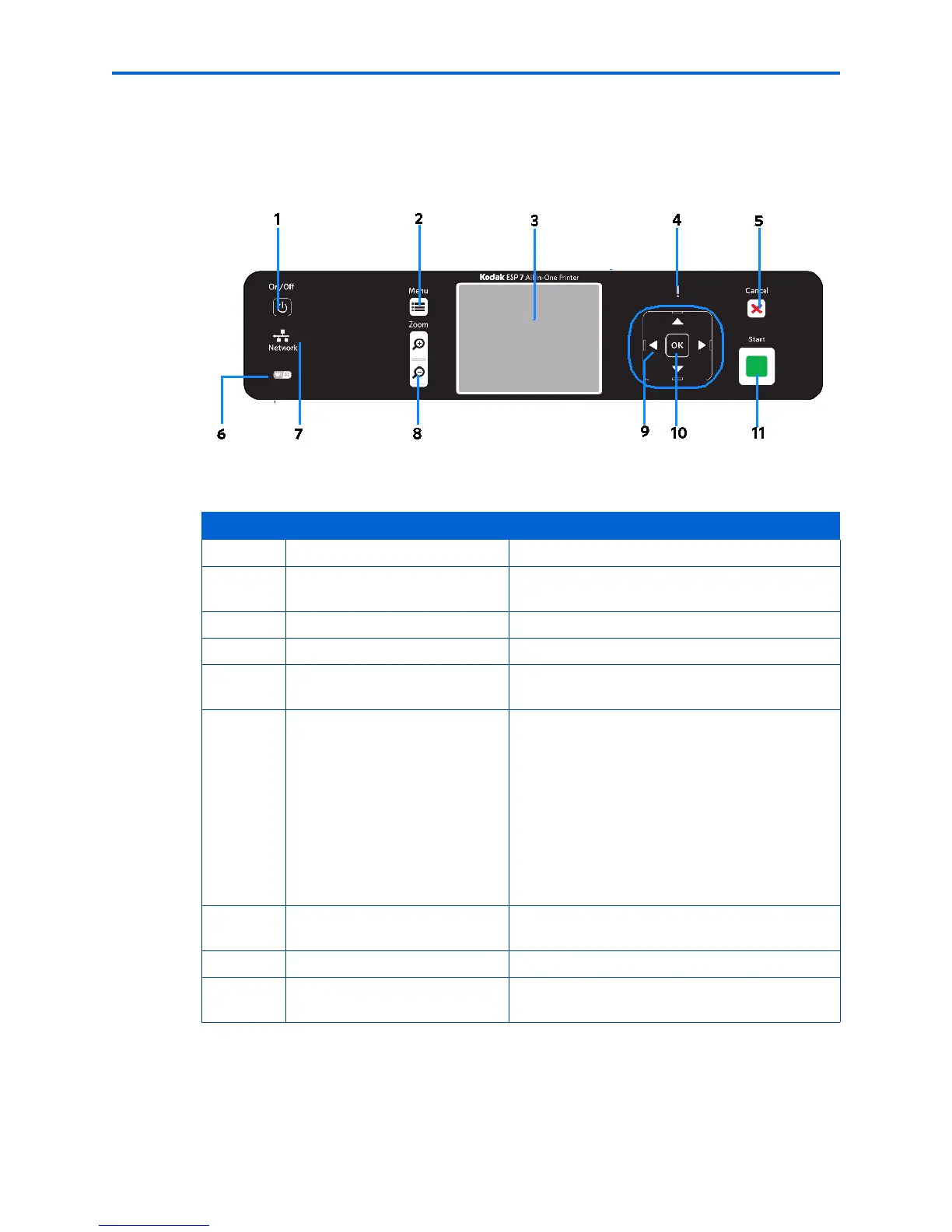

Control panel layout
The legend describing the numbered parts of the control panel illustration is in the table
below.
Number Name Description
1 On/Off button Powers the printer ON or OFF.
2 Menu button Displays the menu, and toggles between
parameters screens and preview screens.
3 Screen Displays photos, messages, status, and menus.
4 Attention light Blinks or flashes when an error occurs.
5 Cancel button Cancels the current operation and control panel
navigation, and returns you to the menu.
6 Wireless network status light When lit, signals that a wireless (Wi-Fi)
network connection is active. If the LED is
illuminated, you may not be connected to the
network yet. Go to Network Settings, View
Network Configuration, and verify that it says it
is Network and Connected.
Blinks when searching for an available Wi-Fi
network within range, or when the existing
signal is too weak to transmit or receive
wireless signals.
7 Ethernet network status light When lit, signals that an Ethernet network
connection is active.
8 Zoom buttons Lets you zoom in and out of a photo.
9 4-way navigation buttons Enable you to navigate menus and photos, and
pan around a zoomed photo.
