Kohler 6VSG User Manual

TP-6843 12/21 19
1.7 Service Views
1. Exhaust air outlet
2. Air cleaner
3. Oil fill
4. Oil drain
5. Oil drain valve
6. Oil filter
7. Muffler
8. Alternator air inlet
9. Customer connection blocks (located behind panel)
10. Electrical inlet access panel
11. Engine starting battery location (battery not included)
12. Lifting hole
13. Controller
14. Engine certification label
15. Load circuit breaker
16. Oil dipstick
17. Exhaust outlet
18. Fuel inlet
19. Electrical inlet
20. Battery cables (included)
21. Nameplate

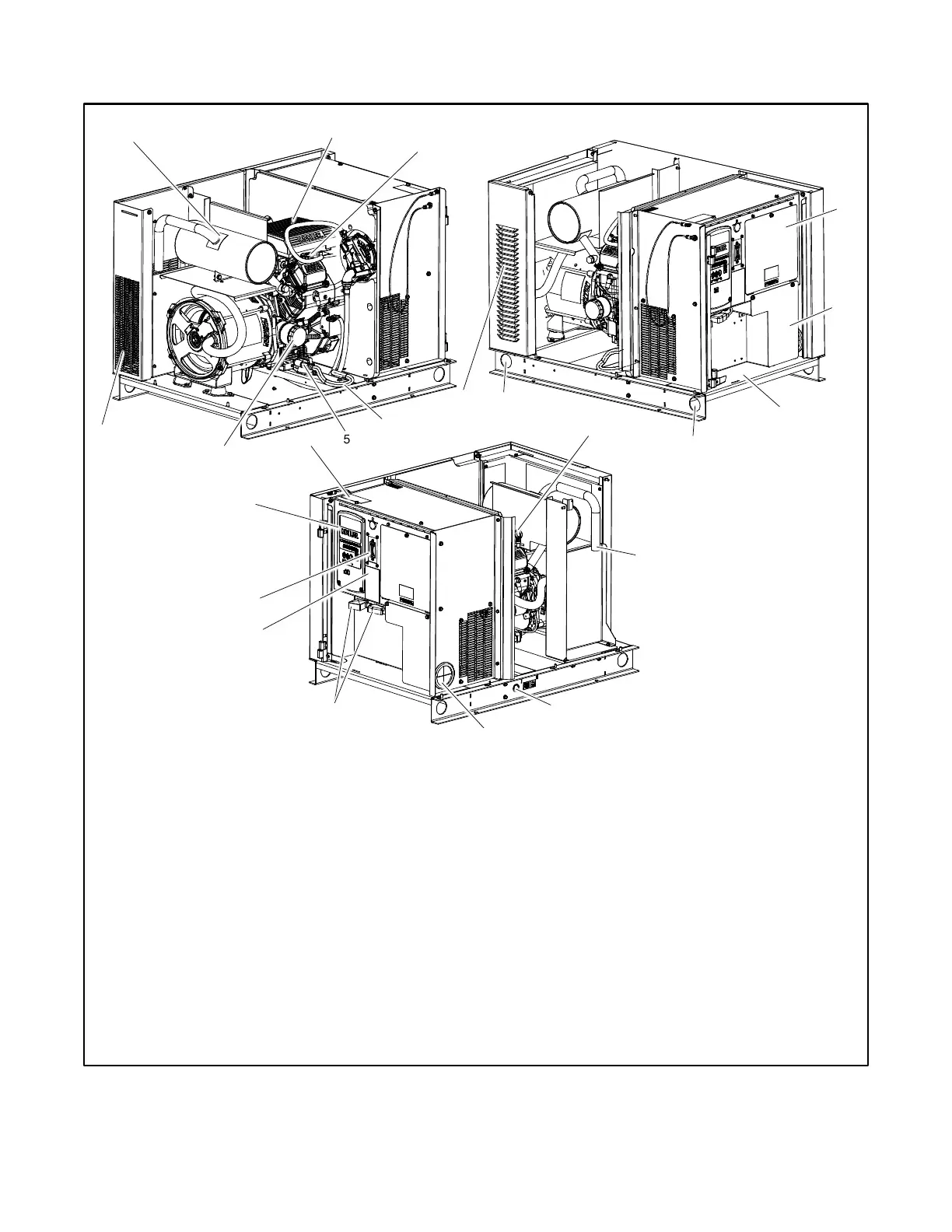

Figure 5 Service View (see the next figures for optional kit components)
