Figure 14 VSC User Interface
3.2.1 Controller Keypad
The RUN, OFF, and AUTO buttons control the generator set as described in Figure 15. Use the Select, Up arrow, and Down
arrow buttons to navigate through the menus and change settings, if necessary. See Section 2.4 for operation instructions.
Button
Button Function
RUN
Starts the generator set. The engine start time delay is ignored.
OFF
Stops the generator set. The cooldown time delay is ignored.
During the engine crank cycle, pressing OFF will stop the crank cycle.
Press OFF to clear faults and reset the controller.
AUTO
Places the generator set in Automatic (standby) mode.
Down arrow
Use to navigate through menus and change settings. This manual contains instructions to navigate the controller menus
and adjust settings on the VSC controller.
Select
Up arrow

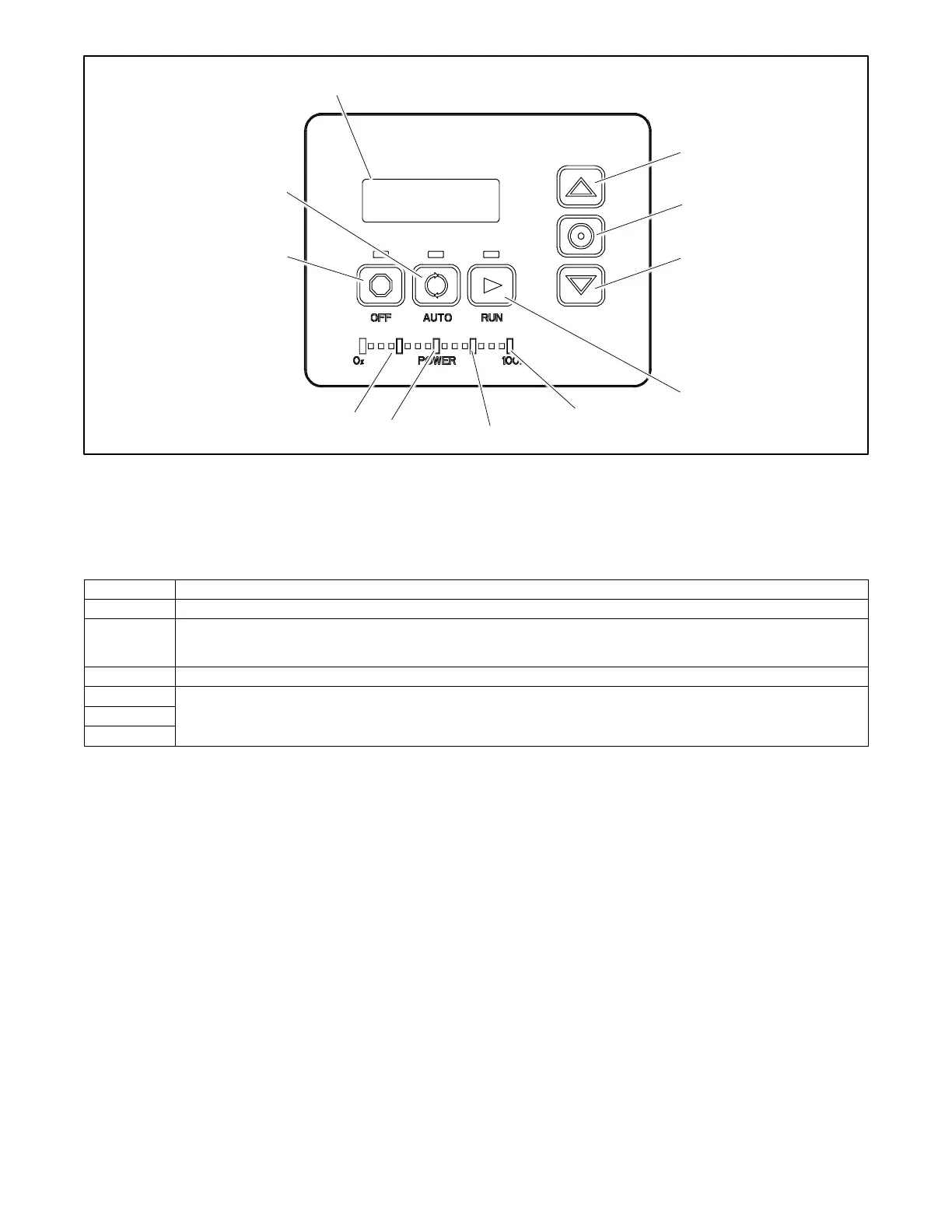

Figure 15 VSC Controller Pushbutton Operation
75% load LED
2-line LCD display
Up button
Select button
Down button
RUN button and LED
100% load LED
50% load LED
25% load LED
AUTO button and LED
OFF button and LED
KPS_050
GM81498
