Kohler Command PRO CH745 User Manual

Specifi cations
524 690 01 Rev. K KohlerEngines.com

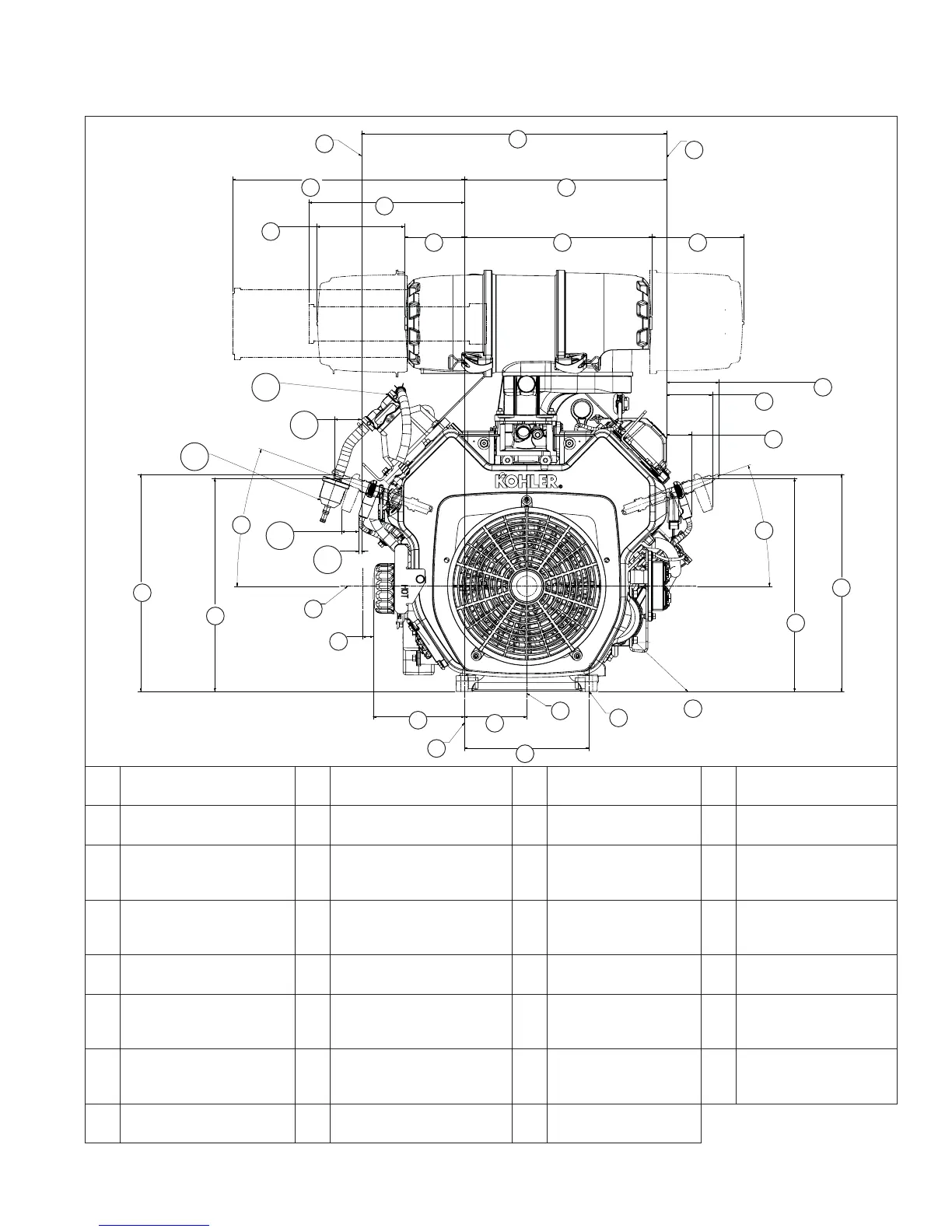

Engine Dimensions with Heavy-Duty Air Cleaner-Flywheel Side
A Valve Cover B 451.16 mm (17.762 in.) C Fuel Pump D
342.52 mm
(13.485 in.)
E 230.20 mm (9.063 in.) F 130.0 mm (5.118 in.) G
88.28 mm
(3.475 in.)
H
298.93 mm
(11.769 in.)
I 277.22 mm (10.914 in.) J 135.0 mm (5.315 in.) K
77.17 mm
(3.038 in.) Spark Plug
Removal
L
67.19 mm
(2.645 in.) Spark
Plug Boot Removal
M
37.15 mm
(1.463 in.) Spark Plug
Boot
N
320.89 mm
(12.633 in.) Spark Plug
Removal
O
315.14 mm
(12.407 in.) Spark
Plug Boot Removal
P 20°
Q
Engine Mounting
Surface
R
4X Ø 10.3 mm
(0.406 in.)
S 184.20 mm (7.252 in.) T Engine Center Line
U 92.10 mm (3.626 in.) V
Center Line Mounting
Hole "A"
W 134.80 mm (5.307 in.) X
15.70 mm
(0.618 in.) Oil Filter
Removal
Y Crankshaft Center Line Z
315.25 mm
(12.412 in.) Spark Plug
Boot Removal
AA
4.12 mm (0.182 in.)
Spark Plug Boot
AB
25.46 mm
(1.002 in.) Spark
Plug Boot Removal
AC Fuel Filter AD
39.66 mm (1.562 in.)
Spark Plug Removal
AE Fuel Pump
F
E
G
H
I
K
L
N
O
M
P
Q
R
S
T
A
B
D
C
J
U
V
X
W
N
Y
Z
AD
AA
AB
AC
P
AE

Kohler Command PRO CH745 Specifications
