Kohler Command PRO CH745 User Manual

Specifi cations
724 690 01 Rev. K KohlerEngines.com

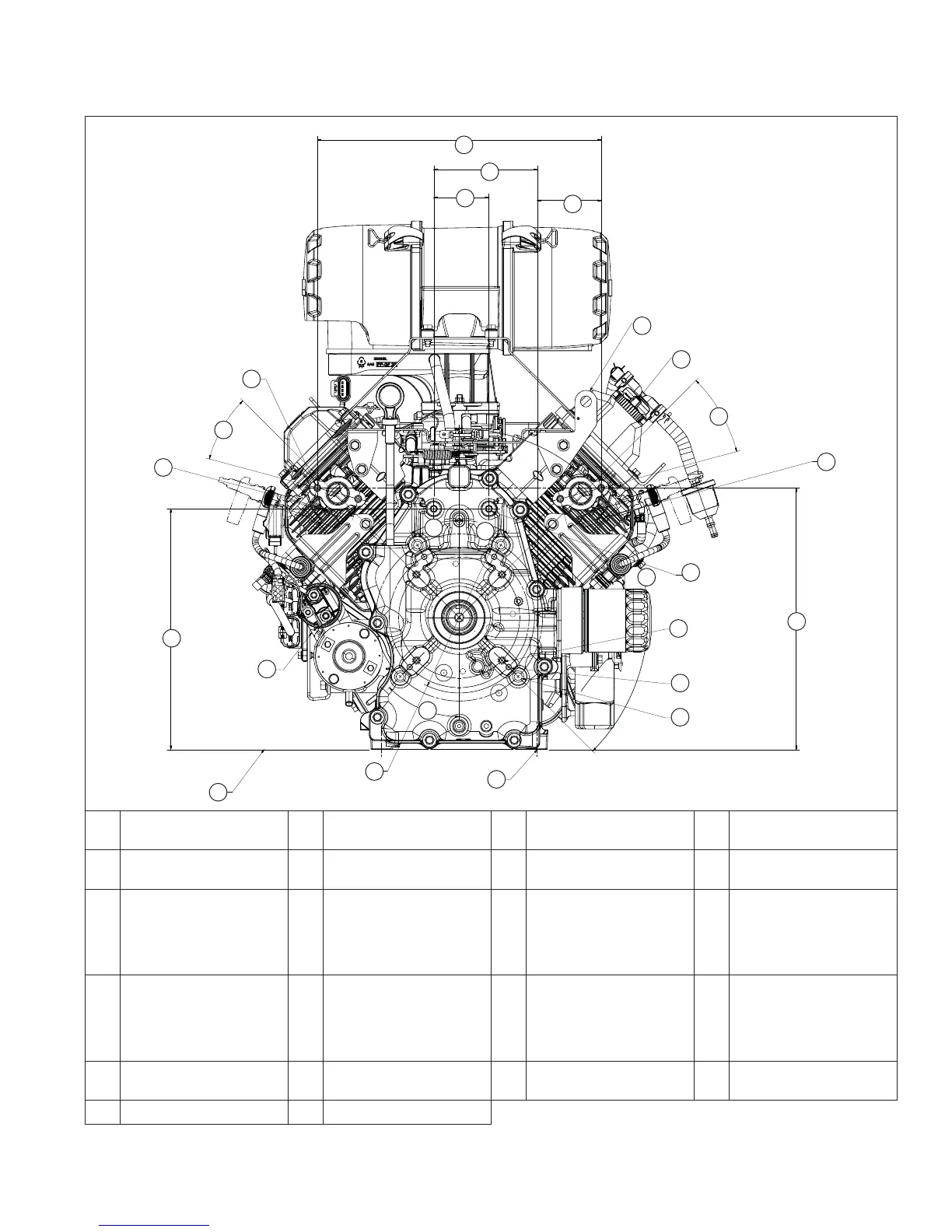

Engine Dimensions with Heavy-Duty Air Cleaner-PTO Side
B
A
C
E
F
D
G
H
I
J
L
K
M
N
P
O
Q
S
R
U
T
V
G
A 335.04 mm (13.19 in.) B 122.10 mm (4.807 in.) C
65.0 mm (2.559 in.)
Muffl er Mounting
D 75.42 mm (2.969 in.)
E Lift Strap F Oil Fill Location G 30° H
50.00 mm (1.969 in.)
Exhaust Port #2
I
2 X 306.24 mm
(12.136 in.)
J
2 X M8 X 1.25
20.5 mm
(0.807 in.) Deep
K 135° L
5/16-24 UNC-2B in.
17 mm (0.669 in.)
Deep
127 mm (5.0 in.)
B.C.
M
3/8-16 UNC-2B in.
21 mm (0.827 in.)
Deep
165.1 mm (6.5 in.)
B.C.
N
7/16-14 UNC-2B in.
21 mm (0.827 in.)
Deep
165.1 mm (6.5 in.)
B.C.
O
Center Line Mounting
Hole "A"
P
177.8 mm (7.0 in.)
Pilot Diameter
Q
Engine Mounting
Surface
R Solenoid Shift Starter S
283.58 mm (11.164 in.)
Muffl er Mounting
T
50.00 mm (1.969 in.)
Exhaust Port #1
U M8 X 1.25 4 Studs V 45°
G
G
