24 690 37 Rev. BKohlerEngines.com20
Air Cleaner/Intake
AIR CLEANER
These systems are CARB/EPA certied and components
should not be altered or modied in any way.

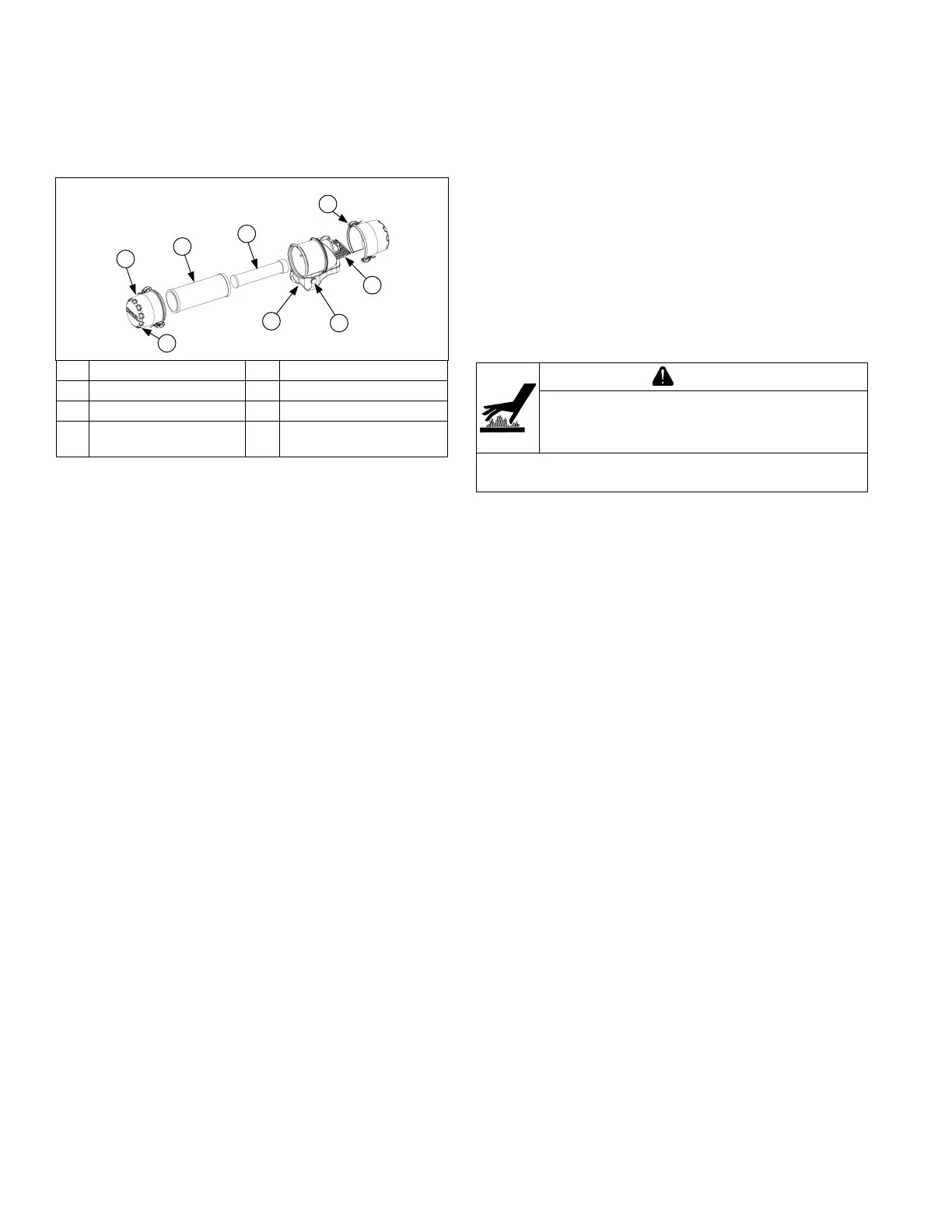

Air Cleaner Components
1. Unhook retaining clips and remove end cap(s).
2. Check and clean inlet screen (if equipped).
3. Pull air cleaner element out of housing and replace.
Check condition of inner element; replace when dirty.
4. Check all parts for wear, cracks, or damage, and that
ejector area is clean.
5. Install new element(s).
6. Reinstall end cap(s) with dust ejector valve/screen
down; secure with retaining clips.
BREATHER TUBE
Ensure both ends of breather tube are properly
connected.
AIR COOLING
WARNING
Hot Parts can cause severe burns.
Do not touch engine while operating or just
after stopping.
Never operate engine with heat shields or guards
removed.
Proper cooling is essential. To prevent over heating,
clean screens, cooling ns, and other external surfaces
of engine. Avoid spraying water at wiring harness or any
electrical components. Refer to Maintenance Schedule.
NOTE: Operating engine with loose or damaged air
cleaner components could cause premature
wear and failure. Replace all bent or damaged
components.
NOTE: Paper element cannot be blown out with
compressed air.
A Air Cleaner Housing B End Cap
C Element D Inner Element
E Ejector Area F Inlet Screen
G
Retaining Clip
H
Filter Minder (Optional)
or Plug
B
C
D
H
F
E
G
A
