WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.

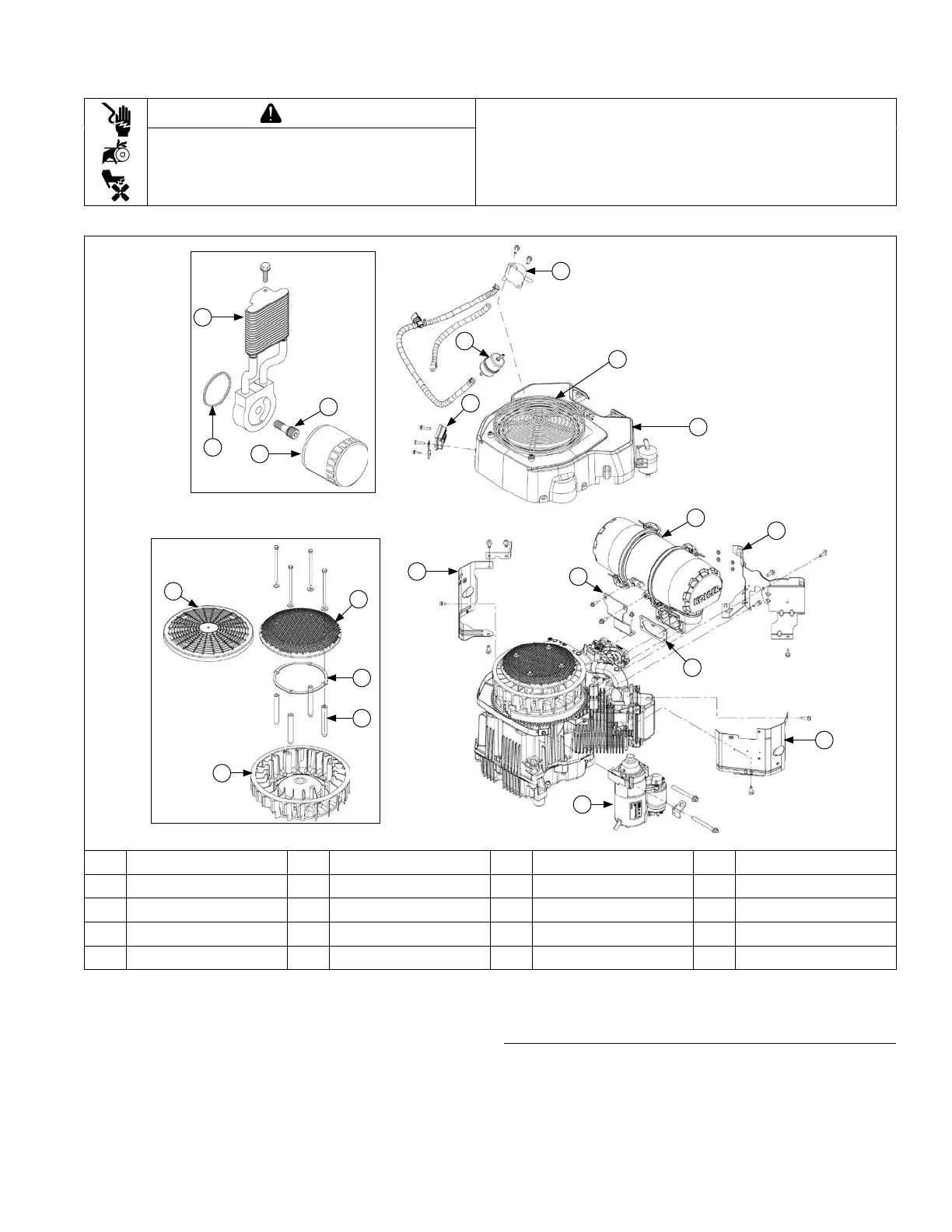

External Engine Components
N
L
O
M
B
A
C
D
E
E
F
G
H
I
J
K
P
Q
R
T
S
A Guard B Blower Housing C Fuel Filter D Rectier-Regulator
E Outer Bafe F Electric Starter G Inner Bafe H Air Cleaner
I Air Cleaner Gasket J Support Bracket K Fuel Pump L Oil Cooler
M O-ring N Nipple O Oil Filter P Plastic Debris Screen
Q Metal Debris Screen R Support Ring S Spacer T Fan
Clean all parts thoroughly as engine is disassembled.
Only clean parts can be accurately inspected
and gauged for wear or damage. There are many
commercially available cleaners that will quickly remove
grease, oil, and grime from engine parts. When such a
cleaner is used, follow manufacturer’s instructions and
safety precautions carefully.
Make sure all traces of cleaner are removed before
engine is reassembled and placed into operation.
Even small amounts of these cleaners can quickly break
down lubricating properties of engine oil.
Disconnect Spark Plug Leads
NOTE: Pull on boot only, to prevent damage to spark
plug lead.
1. Disconnect leads from spark plugs.
2. Shut off fuel supply.
Disassembly/Inspection and Service
4124 690 37 Rev. B KohlerEngines.com
