4. Route stator leads in crankcase channel, then install
backing plate. Secure with screws. Torque screws to
7.3 N·m (65 in. lb.).
Install Flywheel
CAUTION
Damaging Crankshaft and Flywheel can
cause personal injury.
Using improper procedures can lead to broken
fragments. Broken fragments could be thrown from
engine. Always observe and use precautions and
procedures when installing ywheel.
NOTE: Before installing ywheel, make sure crankshaft
taper and ywheel hub are clean, dry, and
completely free of any lubricants. Presence of
lubricants can cause ywheel to be over
stressed and damaged when screw is torqued to
specications.
NOTE: Make sure ywheel key is installed properly in
keyway. Flywheel can become cracked or
damaged if key is not properly installed.
1. Install woodruff key into keyway of crankshaft. Make
sure key is properly seated and parallel with shaft
taper.
2. Install ywheel onto crankshaft being careful not to
shift woodruff key.
3. Install screw and washer.
4. Use a ywheel strap wrench or holding tool to hold
ywheel. Torque screw securing ywheel to
crankshaft to 66.4 N·m (49 ft. lb.).

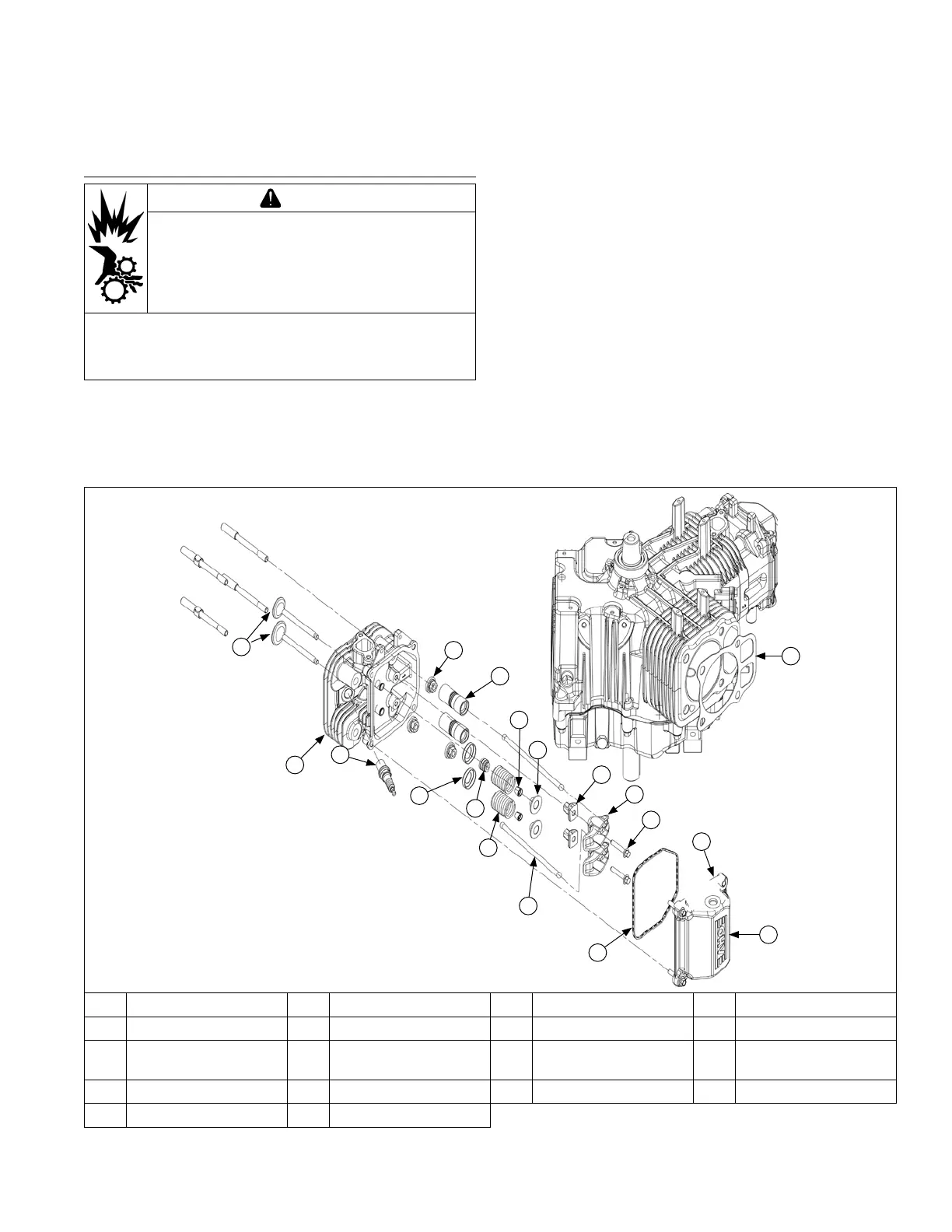

Cylinder Head Components
D
E
Q
K
L
H
B
C
G
F
A
I
J
M
N
O
P
R
A Valves B Cylinder Head C Spark Plug D Nut
E Hydraulic Lifter F Cap G Valve Stem Seal H Valve Spring Keeper
I Valve Spring J
Valve Spring
Retainer
K Rocker Arm Pivot L Push Rod
M Rocker Arm N Screw O Valve Cover O-ring P Grommet
Q Valve Cover R Gasket
Reassembly
5724 690 37 Rev. B KohlerEngines.com
