Kohler Command PRO CV682 Service Manual

Specications
524 690 37 Rev. B KohlerEngines.com
413.28
[16.271]
296.44
[11.691]
272.44
[10.726]
93.05
[3.664]
VALVE COVER
135.00
[5.315]
AIR FILTER
RAIN CAP
REMOVAL
22.77
[0.896]
SPARK PLUG BOOT
253.35
[9.974]
SPARK PLUG
REMOVAL
52.02
[2.048]
SPARK PLUG
BOOT
REMOVAL
OIL FILL &
DIPSTICK TUBE
253.35
[9.974]
SPARK PLUG
REMOVAL
VALVE COVER
353.69
[13.925]
PRIMARY AIR FILTER ELEMENT REMOVAL
241.37
[9.503]
SAFETY AIR FILTER
ELEMENT REMOVAL
130.00
[5.118]
AIR FILTER COVER
ASSEMBLY REMOVAL
246.12
[9.690]
SPARK PLUG
BOOT
REMOVAL
72.81
[2.867]
SPARK PLUG REMOVAL
MOUNTING
HOLE “A”
C
L
ENGINE
72.81
[2.867]
SPARK PLUG REMOVAL
FUEL
FILTER
C
L
CRANKSHAFT
27.53
[1.084]
SPARK PLUG BOOT
52.02
[2.048]
SPARK PLUG BOOT REMOVAL
145.19
[5.716]
45.19
[1.779]
15.70
[0.618]
OIL FILTER REMOVAL
246.12
[9.690]
SPARK PLUG
BOOT
REMOVAL
20°
20°
FLYWHEEL SIDE
345.34
[13.596]
505.67
[19.908]
PULSE FUEL PUMP
316.44
[12.458]
154.85
[6.096]
ENGINE MOUNTING SURFACE
OIL COOLER
REGULATOR
RECTIFIER
OIL DRAIN PLUG
3/8 NPT [INCH]
OIL FILTER SIDE
MOUNTING HOLE “A”
C
L
SPARK PLUG
134.04 [5.277]
109.59
[4.314]
28.56
[1.125]
25.80
[1.016]
C
L
97.20
[3.827]
KE YWAY
7/16-20 UNF 2B [INCH]
1/4 IN. SQ KEYWAY
38.1 [1.500]
80.26
[3.160]
OIL FILTER
51.25
[2.018]
OIL FILTER
12.99
[0.511]
MOUNTING HOLE “A”
ENGINE MOUNTING SURFACE
(PTO END)
2X 242.29
[9.539]
2X 104.03
[4.096]
2X 89.80
[3.536]
30°
30°
SOLENOID SHIFT STARTER
50.00
[1.969]
EXHAUST
PORT #1
MOUNTING
HOLES
4X Ø 9.20 [0.362] THRU
Ø 254.00 [10.00] B.C.
50.00
[1.969]
EXHAUST PORT #2
MOUNTING HOLES
2X 89.80
[3.536]
2X 77.53
[3.052]
2X 72.84
[2.868]
M8 X 1.25
4 STUDS
334.67
[13.176]
367.34
[14.462]
316.96
[12.479]
40.80
[1.606]
OIL DRAIN PLUG
3/8 NPT [INCH]
12.99
[0.511]
ENGINE MOUNTING SURFACE
C
L
SPARK PLUG
72.04
[2.836]
EXHAUST
PORT #2
154.04 [6.065]
92.04
[3.624]
EXHAUST
PORT #1
STARTER SIDE

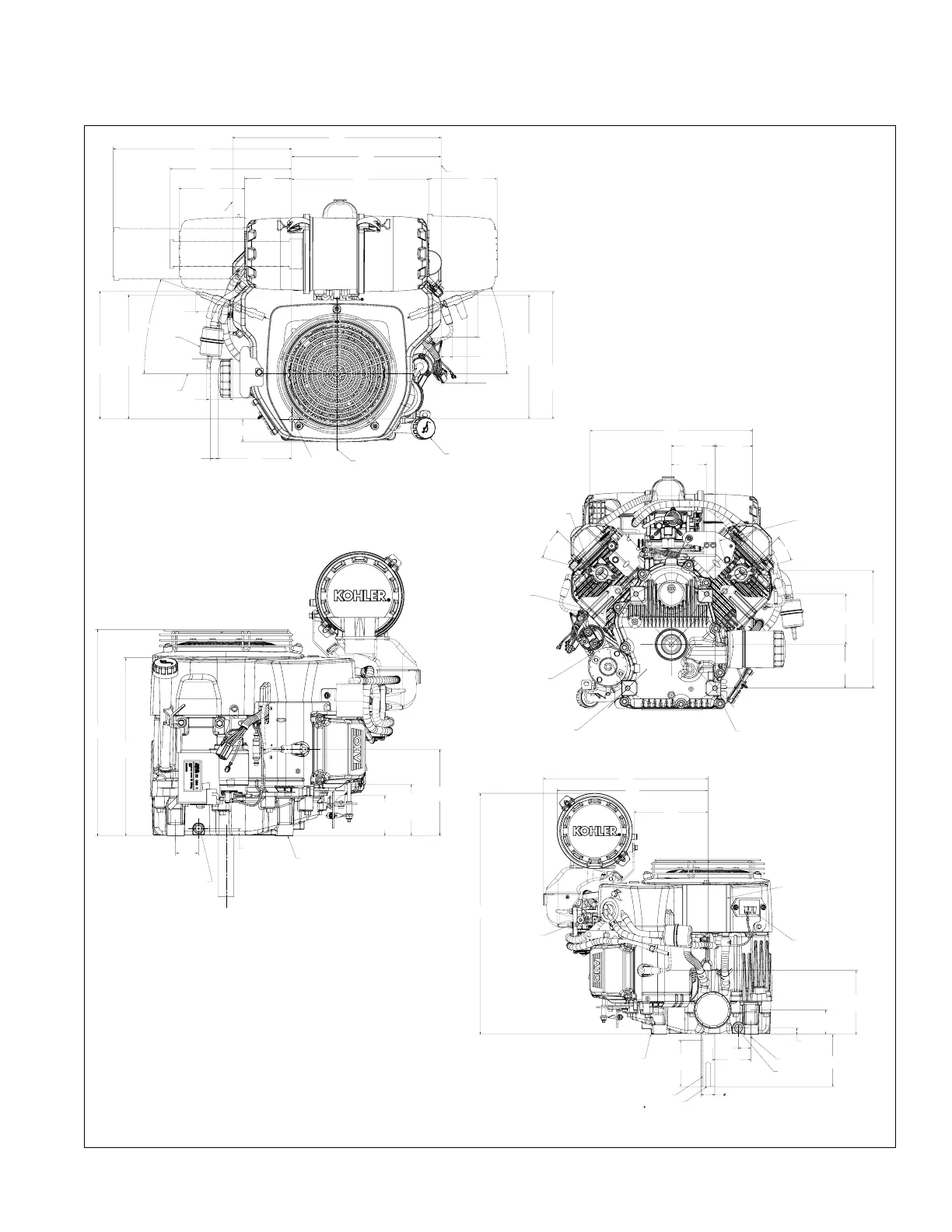

Engine Dimensions
Dimensions in millimeters.
Inch equivalents shown in [ ].

Kohler Command PRO CV682 Specifications

General

Brand	Kohler
Model	Command PRO CV682
Category	Engine
Language	English
