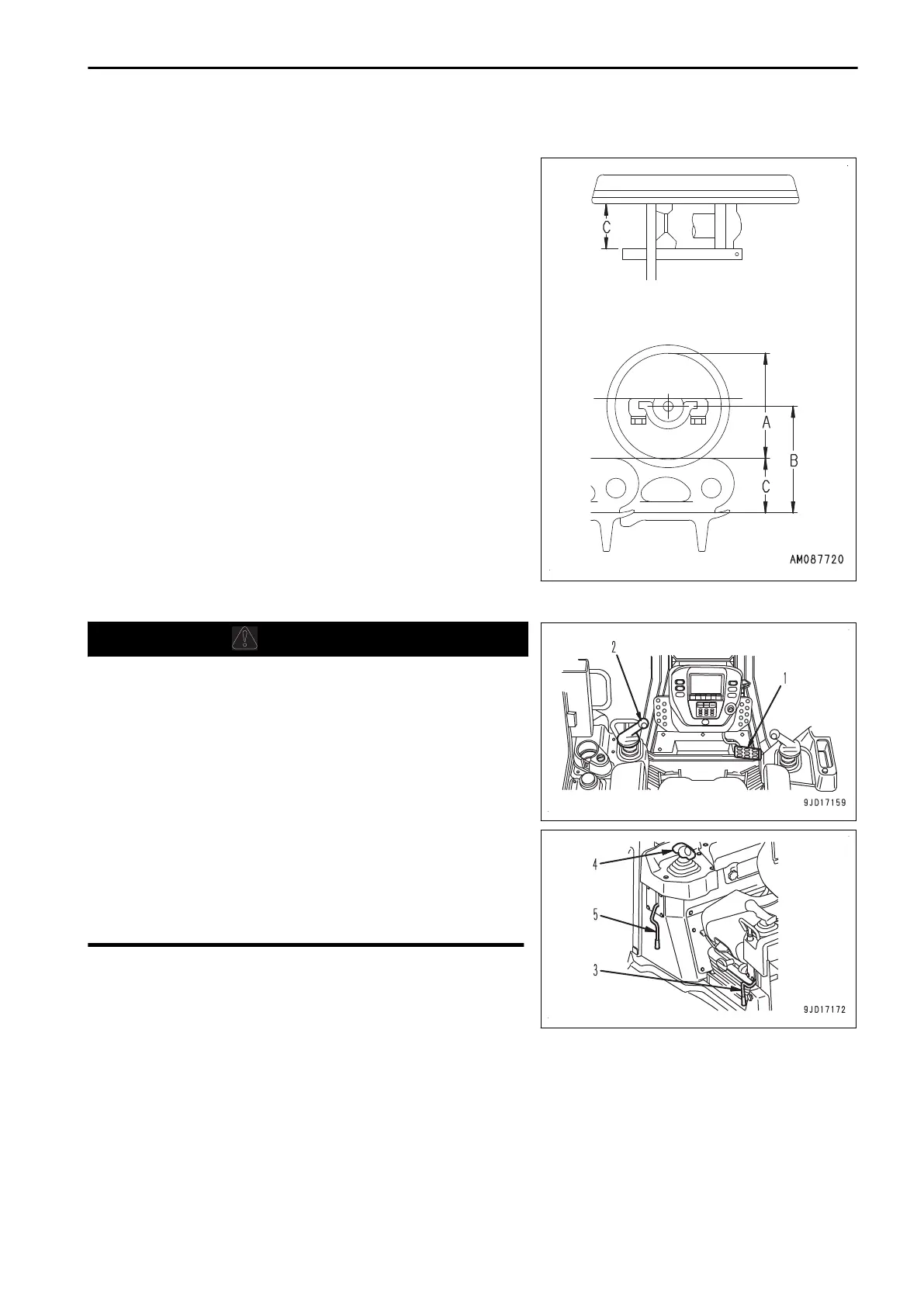

METHOD FOR MEASURING TRACK ROLLER DIAMETER
1.
Measure the link tread (dimension C) as shown in the fig-
ure.
2.
Stop the machine at a position where the link tread, at
which
dimension C was measured, is perfectly in contact
with the roller tread.
3.
Measure dimension B.
4.
Calculate outside diameter of the tread (dimension A).
A = (B - C) x 2
Standard dimension (A): 185 mm
Repairable limit: 160 mm
METHOD FOR PARKING MACHINE
WARNING
• Avoid a sudden stop. Stop the machine gradually.
•
Place the machine on a firm, level ground.
Do not park the machine on a slope.
If it is unavoidably necessary to park the machine on a
slope, place parking brake lever (3) in LOCK position
and insert blocks underneath the track shoes to pre-
vent the machine from moving. As an additional safety
measure, thrust the work equipment into the ground.
• If joystick (steering, directional and gear shift lever) (2)
or blade control lever (4) is touched by accident, the
work equipment may move suddenly causing a seri-
ous accident. Before leaving the operator's seat, al-
ways set parking brake lever (3) and work equipment
lock lever (5) securely in LOCK position.
1.
Depress decelerator/brake pedal (1).
OPERATION MACHINE OPERATIONS AND CONTROLS
3-181
