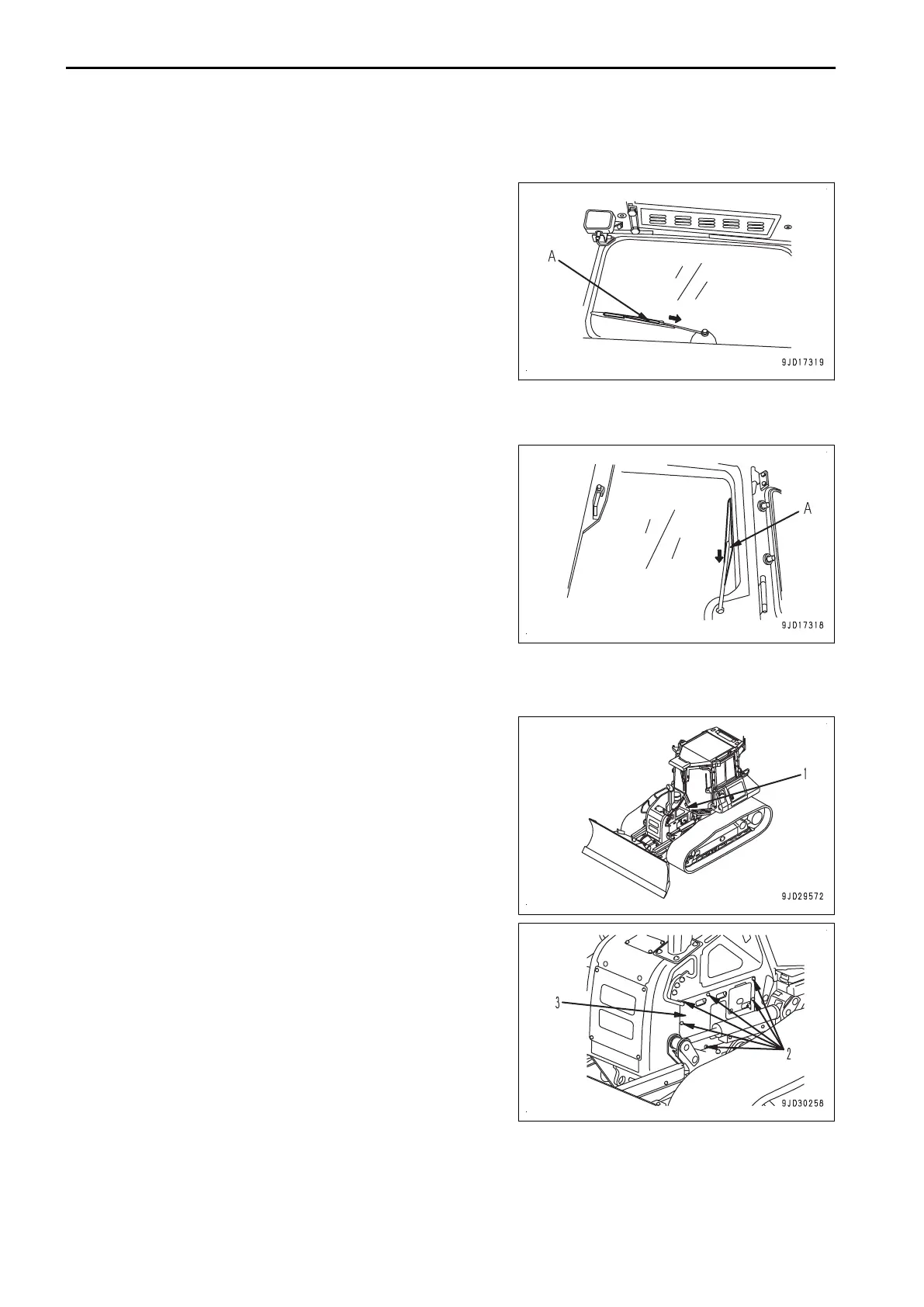

METHOD FOR REPLACING REAR WIPER
The rear wiper is hooked at portion (A).
1.
Move the blade in the direction of the arrow.
The blade comes of
f.
2.
Install the new blade and hook it securely.
METHOD FOR REPLACING DOOR WIPER
The front wiper is hooked at portion (A).
1.
Move the blade in the direction of the arrow.
The blade comes of
f.
2.
Install the new blade and hook it securely.
METHOD FOR CHECKING AND MAINTENANCE AIR CONDITIONER
METHOD FOR CHECKING AIR CONDITIONER COMPRESSOR BEL
T TENSION
1.
Open the engine side cover (1) on the left side of the ma-
chine.
2.
Remove the bolts (2) (6 pieces) and remove the cover (3).
MAINTENANCE PROCEDURE MAINTENANCE
4-36
