MAINTENANCE
SERVICE PROCEDURE

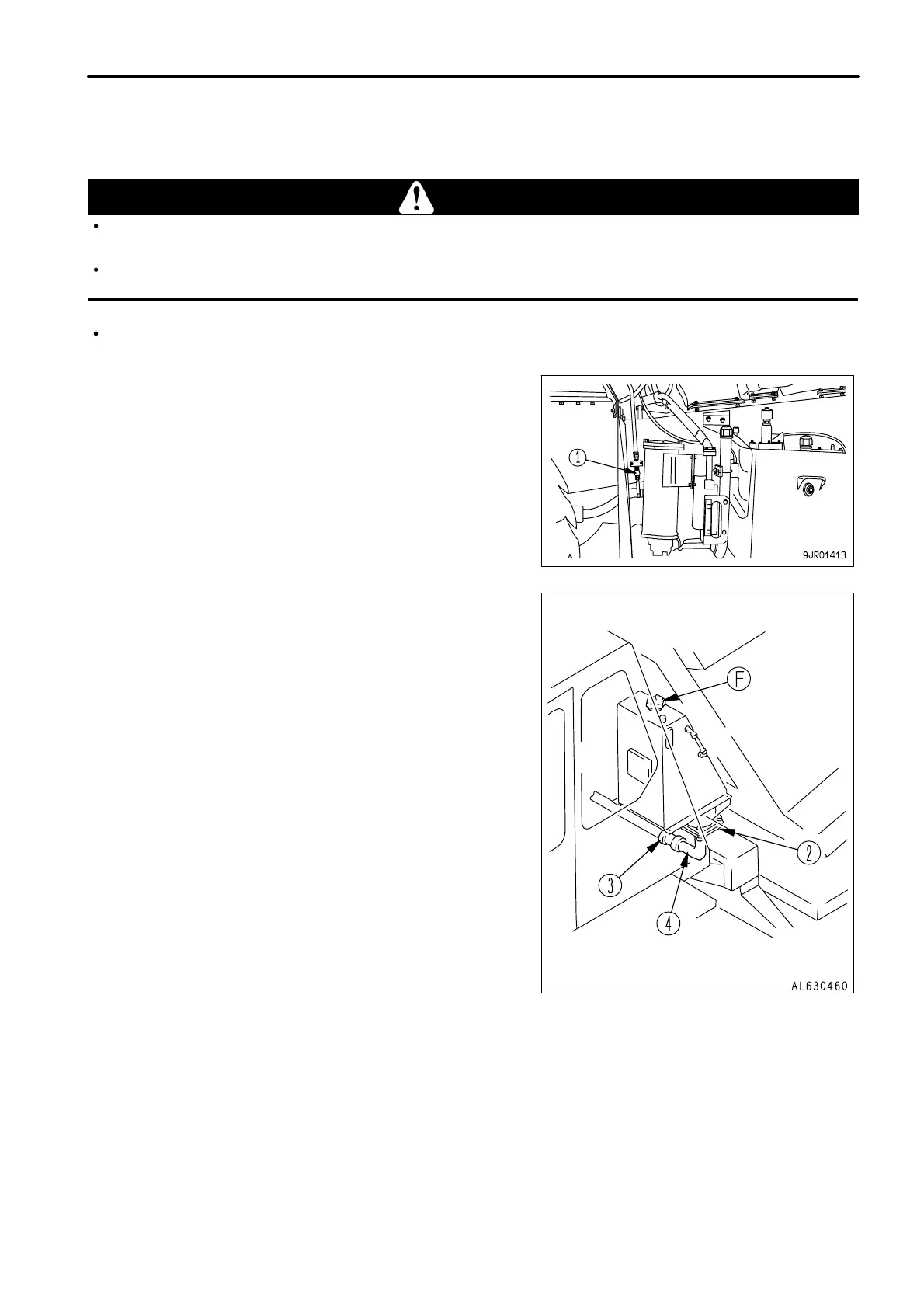

CHANGE OIL IN FRONT DRIVE OIL TANK, CLEAN FRONT DRIVE OIL TANK STRAINER
(HD325 only the machine of 4WD specifications)
WARNING
The parts and oil are at high temperature after the engine is stopped, and may cause burns.Wait for the temperature to go down
before starting the work.
When removing the plug, oil may spurt out, so turn the plug slowly to release the internal pressure, then remove it carefully.
Refill capacity: 36 liters (9.5 US gal)
1.
Open drain valve (1), drain the oil, then close drain valve (1)
again.
2. Remove bolt (2) and coupling (3), then remove piping (4).
3.
Remove the strainer.
4.
Remove any dirt stuck to the strainer, then wash it in clean
diesel oil. Replace the strainer if it is damaged.
5.
Install the strainer, piping, and coupling.
6.
After installing the strainer, add oil through oil filler (F) to the
specified level.
7.
After adding oil, check that the oil is at the specified level.
For details, see "CHECK OIL LEVEL IN FRONT DRIVE OIL
TANK, ADD OIL (PAGE 3-63)".
