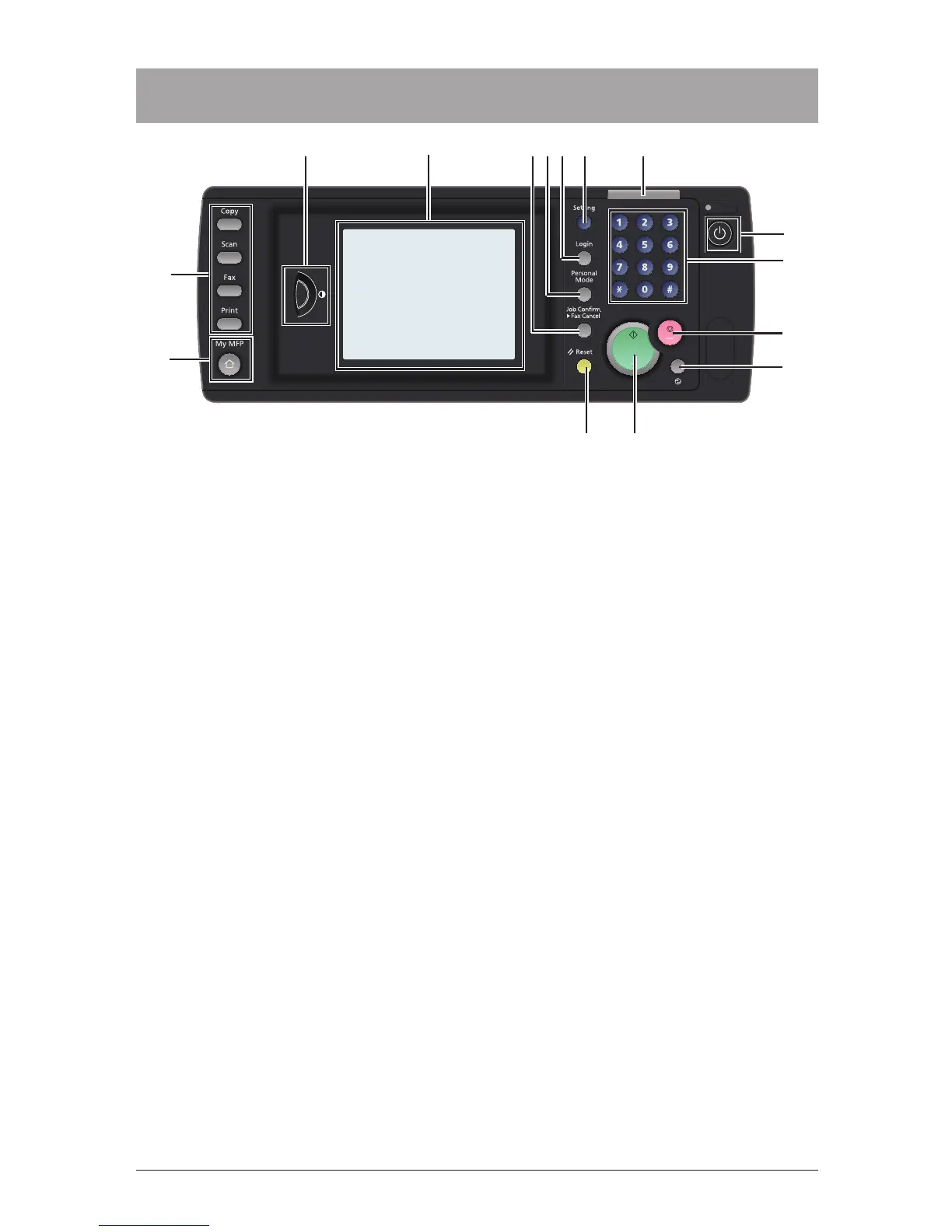

Control Panel
Mode keys1
Switches the machine to the Copier, Scanner, Fax and Printer mode.
Display Contrast dial2
Adjusts the contrast of the display. (See page 1-14.)
Display3
Displays machine status, interactive displays, and all machine functions.
<Job Confirm.4
Fax Cancel>
Press this key to cancel or review stored jobs, or to review the results of
communication.
<Personal Mode>5
Press this key to switch between the personal screen and shared screen.
<Login>6
Press this to perform user authentication.
<Setting>7
Press this to specify the various settings.
Information lamp8
This flashes green to inform you of the operation when performing scanning or
transmission. It also illuminates green when there is a received document in memory,
and flashes red when an error has occurred.
<Power>9
This switch is used to turn the machine ON and OFF. (See page 1-20.)
Numeric keys10
Use these keys to enter numerical values, such as fax/phone numbers.
<Stop>11
Stops the machine's operation. To stop a fax transmission, press <Job Confirm.
Fax
Cancel>.
2
3
1
15
4 5 6 7
8
9
10
11
12
13
14
