13
Functions of Each Part
(1) Power switch
Switches this instrument on/off. ( | ) for ON; (O) for OFF.
…(p.23)
(2)
AC adapter input terminal
Connects the attached AC adapter. ……………………… (p.21)
(3) USB connector Connects the USB cable when connecting to PC. ………(p.72)
(4)
Measuring angle selector
Selects measurement angle among 1º, 0.2º and 0.1º.
………(p.52)
(5) Objective lens
Directed to object for measurement. ………………………(p.53)
(6)
Focus adjustment ring
Adjusts focus of objective lens before measurement. ……(p.53)
(7)
Focus distance scale
Helps adjusting focus. ………………………………………(p.53)
(8) LCD Screen
Displays various screens like measurement and menu.
… (p.16)
(9) Key Panel Offers several keys for operation of this instrument. …… (p.14)
(10)
Measurement button
For measurement. ……………………………………………(p.53)
(11) Finder
Used to observe object for measurement. ………… (p.15, 53)
(12)
Diopter adjustment ring
Adjusts diopter. ………………………………………… (p.15, 53)

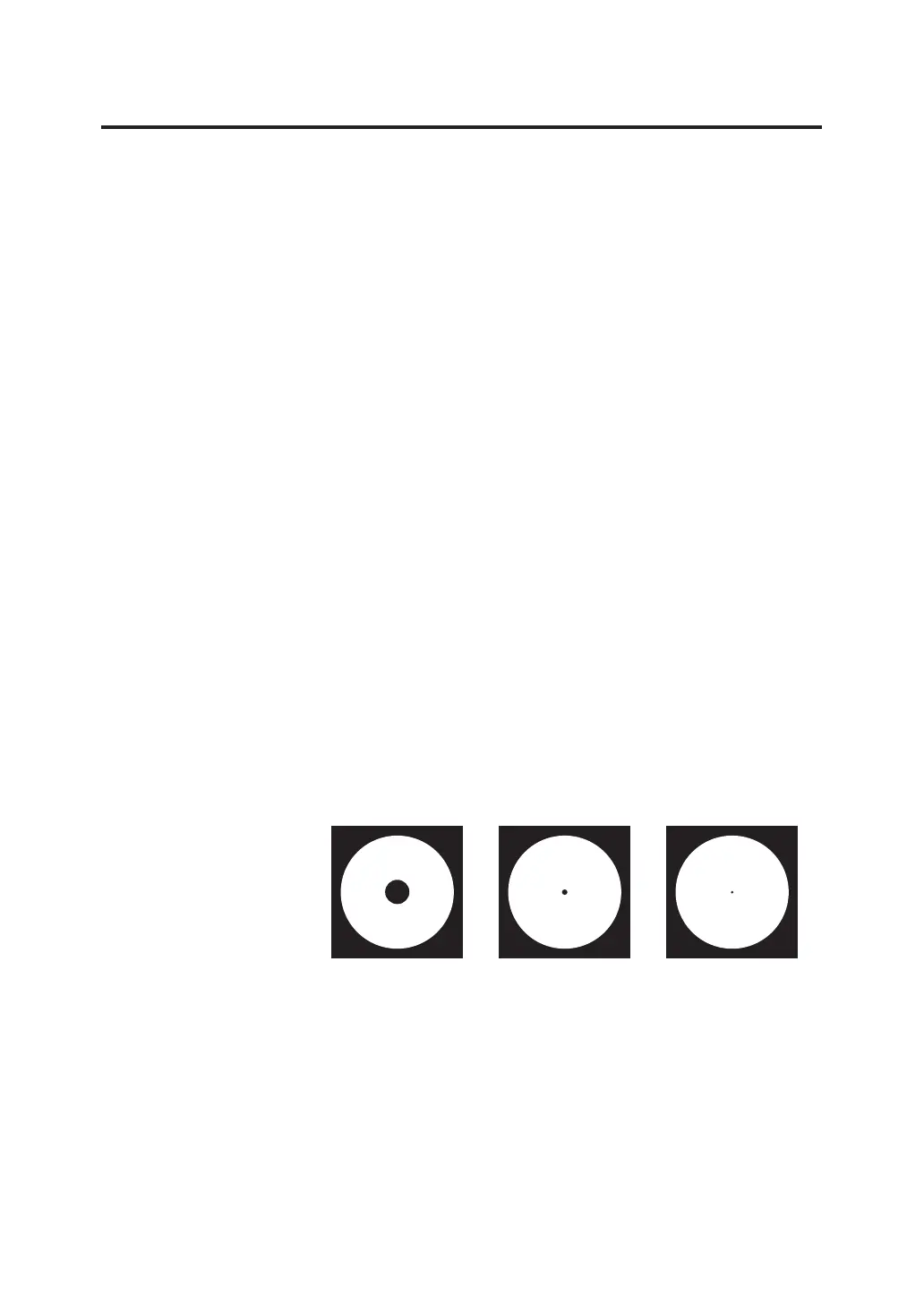

(13)Aperture Indicates measuring area. …………………………………(p.53)
Size of black circle will change depending on measuring angle.
1º Aperture 0.2º Aperture 0.1º Aperture
(14)
Screw holes for fixing
Used to fix this instrument with tripod or jig.
……………
(p.20)
(15)
Vertically synchronized
Connects the cable to input the vertically synchronized
signal input terminal
signal or the external sync measurement.
………………
(p.26)
