20
Installation
Installing

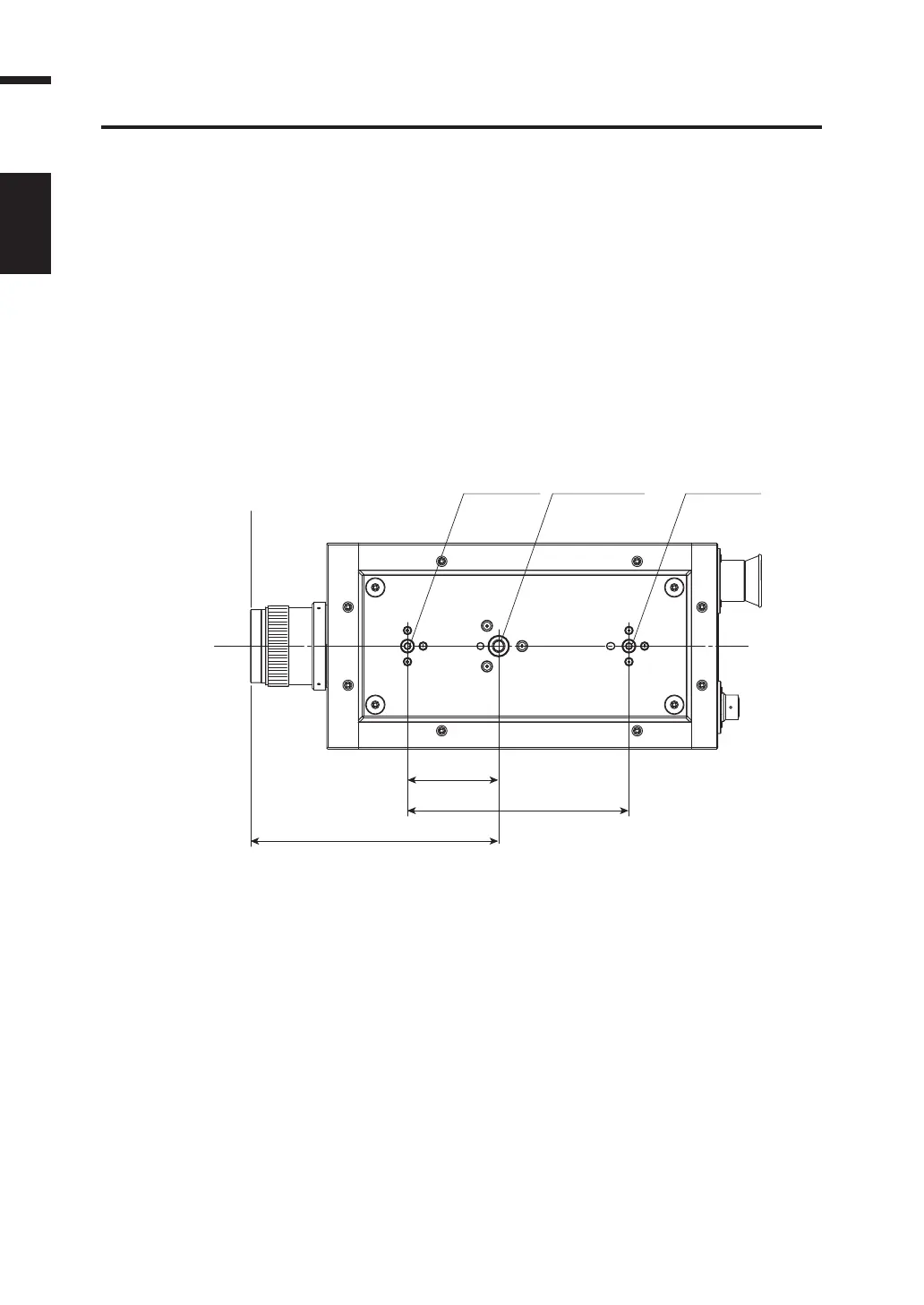

Use screw holes for fixing at the bottom of this instrument if utilized with the tripod or jig.
2-type holes are available.
Tripod screw hole: To set on the tripod. Use a tripod screw with top diameter of 3/8 inches
and depth of 10.5 mm.
[Note] The tripod screw holes correspond with the 3/8-inch screws of a
large camera tripod. 1/4-inch screws cannot be used for fixing
this instrument.
ISO screw hole: To set on the jig. Use ISO screws with top diameter of 5 mm and depth
of 6.5 mm.
For other detailed dimensions, see p.80.
70
Measurement distance
reference
Optical
axis
ISO screw ISO screwTripod screw
190.4
170
