Konica Minolta CS-2000 User Manual

43
Setting
When Using Closeup Lens
Use the closeup lens in the optional accessories to measure a fine surface. For the
attachment of the closeup lens, refer to the instruction manual for the closeup lens.
If the closeup lens is attached, the measurement value must be compensated for the lens
transmittance. This compensation coefficient is attached to the closeup lens. Use the data
management software CS-S10w Professional supplied with the CS-2000 as standard to
set the coefficient in this instrument. After that, when the closeup lens is selected as lens
type, the measurement value compensated with the compensation coefficient can be
obtained. See instruction manual of CS-S10w for details.
The wrong setting of lens type leads to inaccurate measurement.
Do not use the closeup lens with the ND filter. It leads to inaccurate measurement.
* Lens type : STANDARD, CLOSE-UP
* Factory default setting : STANDARD

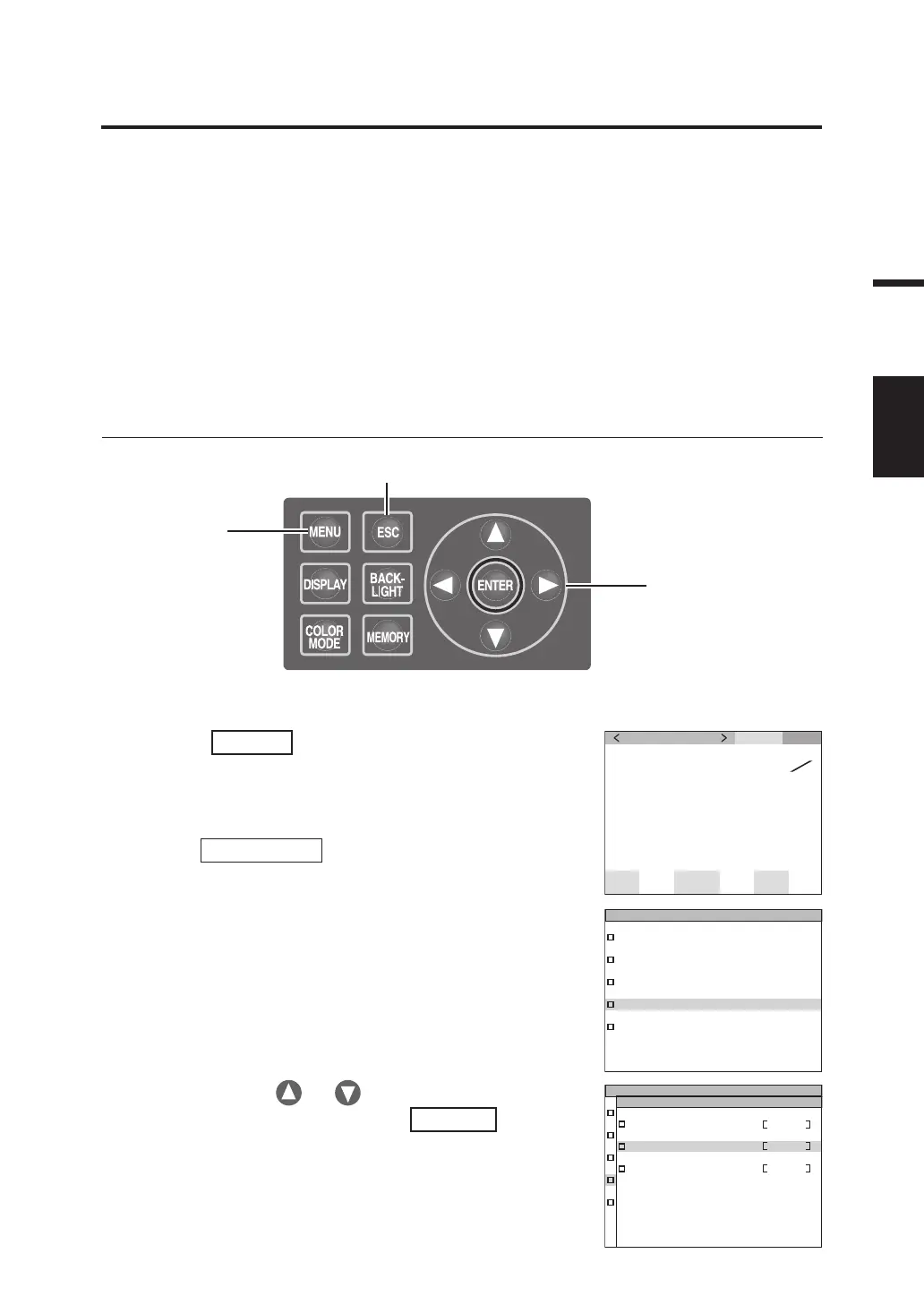

1. Press
MENU
key when the MEAS
screen is displayed.
The MENU screen appears.
When the backlight of the LCD has been turned
off via
BACKLIGHT
key on the MEAS screen,
the backlight is turned on.
2. Press either or key to select
[OPTION] and then press
ENTER
key.
The MENU – OPTION screen appears.
The current set contents are displayed in the
[LENS] item.
Operation Procedure
US ER. CAL NON
LE NS STD
MENU
OP TION
ND - F I L T E R NON
MEAS
MEMORY
TARGET
OP TION
SETUP
MENU
MEAS SNGL
UC00
SPD
N
r m
Ob s
2
˚
SYNC
I n t
ND
No n
BL
on
LEN
S t d
cd
m
2
Lv
x
y
T01
35. 93
0 . 3968
0 . 4060
1
6, 7
2, 3, 4, 5
