Konica Minolta MS7000 MK II User Manual
5
of 1
of 1 rating
154 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Notes to Operators and Key Ope
rators
1
1-7
WARNI
NG LA
BEL
•

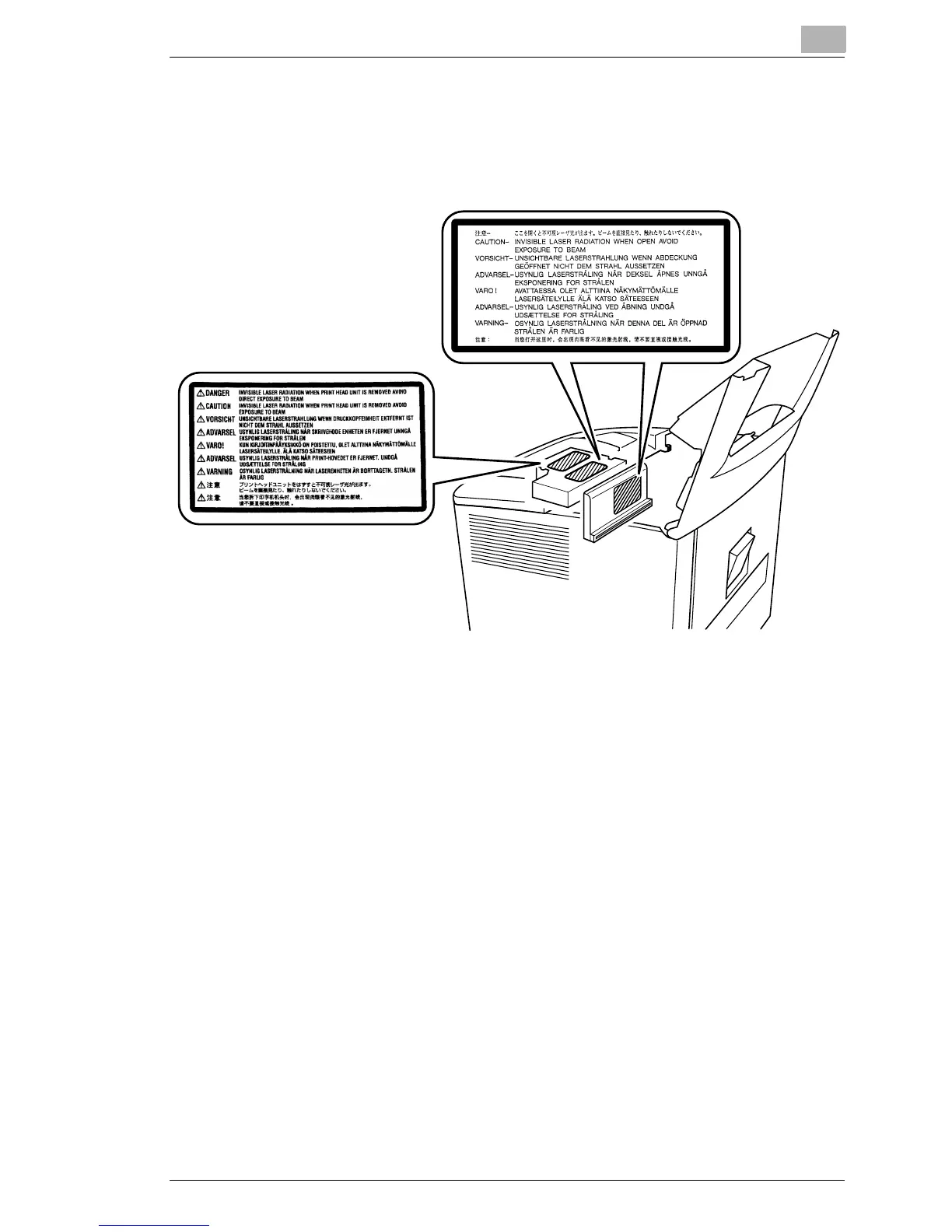

Three laser caution labels are attached to
the inside of the machine as
shown below.
20
22
Table of Contents
Default Chapter
3
Safety Information
3
Table of Contents
10
1 Notes to Operators and Key Operators
15
The Following Safety Rules Should be Observed
15
FCC Part 15 - Radio Frequency Devices (for U.S.A. Users)
15
Warning
15
Interference-Causing Equipment Standard (ICES-003 ISSUE 4) (for Canada Users)
16
CE Marking (Declaration of Conformity) (for European Users)
16
Acoustic Noise
16
Safety Information (MSP 3500 Printer)
17
Laser Safety
17
Internal Laser Radiation
17
For United States
18
CDRH Regulations
18
All Other Users
19
For Denmark
19
For Finland, Sweden
19
For Norway
20
Warning Label
21
OZONE RELEASE (for All Users)
22
Warning Label
22
Safety Information (MSP 3000 Printer)
23
Laser Safety
23
Internal Laser Radiation
23
For United States
23
CDRH Regulations
23
All Other Users
24
For Denmark
24
For Finland, Sweden
24
For Norway
25
Warning Label
26
OZONE RELEASE (for All Users)
27
Warning Label
27
2 Precautions
28
Installation Precautions
28
Installation Site
28
Power Source
29
Grounding
29
Space Requirements
30
Operating Environment
32
Using the Printer
32
Care of Printer Supplies
33
3 Scanner
34
System Overview
34
System Configuration
35
PR Mode (Connected to a Printer)
35
PC Mode (Connected to a Personal Computer)
35
Parts of the Scanner
36
Control Panel Keys and Indicators
38
Control Panel 1 (Basic)
38
Control Panel 1 (Shift Function)
42
Control Panel 2
43
When Malfunctions/Call-Tech.-Rep. Indicator Lights up
45
Image Processing Functions
49
Turning the Power on and off
51
Turning on
51
Turning off
52
Auto Power Save Mode
53
Printing or Scanning Procedure
54
Selecting a Projection Lens
55
Replacing the Projection Lens
56
Positioning the Film Image
57
Zooming, Focusing, and Image Rotation
58
Zooming
58
Focusing
58
Image Rotation
58
Selecting the Film Type
60
Auto
60
Nega (Negative Film)
60
Posi (Positive Film)
61
Selecting the Paper Size
62
Using the Auto Paper Selection Function
62
Using the Auto Film Format Selection Function
63
Selecting the Print Position
64
Center
64
Left
64
Page-By-Page
64
Selecting the Image Density
65
Using Auto Exposure
65
Using Manual Exposure
65
Entering the Number of Prints to be Made
67
Correcting a Number
67
Using Auto Masking
68
Selecting Auto Masking
68
Operating Conditions for Auto Masking
68
Manual Masking Panels (Option)
69
Using Manual Masking
70
Selecting Trimming
70
Defining an Area
71
Defining Two Separate Areas
71
Defining Page-By-Page Print Area
72
Clearing a Defined Print Area
72
Selecting Masking
73
Using Centering and Fit
74
Centering
74
Fit
75
Using the Cycle Print Mode
76
Specifying the Interval between Scanning Operations
76
Operating in the Cycle Print Mode
77
Selecting the Connection Mode
78
Selecting the Resolution
79
Registering the Job Program
80
Calling the Job Program
81
Using the Electrical Zoom
82
Zoom
82
Skip of Magnification
83
Clearing the Zoom Magnification
84
Adjusting the Illumination of the Screen
85
Replacing the Projection Lamp
86
4 MSP 3500 Printer
89
Parts of the Printer
89
Paper Specifications
91
Use Only the Following Types of Paper
91
Set the Paper
92
Loading Paper into the Paper Feeding Tray
92
Loading Paper in the Paper Cassette
94
Replacing the Toner Cartridge
98
Replacing the Exhaust Filter
102
When the Paper Misfeed Indicator Lights up
103
If the Misfeed Indicator Lights up Along with a P0 Code
103
If the Misfeed Indicator Lights up Along with a P1, P2 or P3 Code
103
Clearing a Misfeed from the Paper Feeding Tray
104
Clearing a Misfeed from the Paper Cassette
105
Clearing a Misfeed from Inside the Printer
107
Clearing a Misfeed from Output bin
110
5 MSP 3000 Printer
111
Parts of the Printer
111
Paper Specifications
113
Use Only the Following Types of Paper
113
Set the Paper
114
Loading Paper into the Paper Feeding Tray
114
Loading Paper in the Paper Cassette
115
Replacing the Toner Cartridge
117
When the Paper Misfeed Indicator Lights up
120
If the Misfeed Indicator Lights up Along with a P0 Code
120
If the Misfeed Indicator Lights up Along with a P1, P2 or P3 Code
120
Clearing a Misfeed from the Paper Feeding Tray
120
Clearing a Misfeed from the Paper Cassette
122
Clearing a Misfeed from Inside the Printer
123
6 Troubleshooting
125
Solving Irregular Printing Problems
125
7 Maintenance
127
System Care
127
Cleaning the Scanner Screen
127
Outer Covers
127
Carrier Glass (Option)
128
Cleaning the System Printer (Option)
129
Cleaning the MSP 3500 Printer
129
Cleaning the Printer Exterior
130
Cleaning the Printer Interior
130
Paper Pickup Rollers
131
Cleaning the MSP 3000 Printer
136
8 Miscellaneous
137
Specifications
137
PC Mode
138
PR Mode: MSP 3500 Printer
138
PR Mode : MSP 3000 Printer
139
Initial Settings
140
User Settings on the Control Panel
140
User Mode
141
Entering and Leaving the User Mode
142
Settings in each User Mode Function
143
System Settings by the Dealer
149
For Key Operator's Use
151
5
