Note
Spring (4) relieves the cutter bar on the inside.
Pos: 27.17 /BA/Ei nstellungen/M ähwerke/Mähw erke AM Baureih e/Einstellen der Entlastungsf eder(n) Te xt Teil 2 AM-CV B aureihe @ 73\ mod_130753371 6032_78.docx @ 651950 @ @ 1
• The compensation spring (4) can be adjusted with the spindle (5)
Pos: 27.18 /Übersc hriften/Überschrif ten 2/A-E/ EEinstellung der Pfahlsicheru ng @ 9\mod_1 22096116869 3_78.docx @ 1 30388 @ 2 @ 1
9.3 Setting of the pole protection mechanism
Pos: 27.19 /BA/Sic herheit/Eas yCut/Achtung - Einstellung an d er Pfahlsich erung @ 9\mo d_12209609556 00_78.docx @ 1 30367 @ @ 1
Caution! - Adjusting the pole protection mechanism
Effect: Damage to the machine
• If the setting value is changed, the trigger moment will also change. If the spring on the
pole protection mechanism is pretensioned more than prescribed by the manufacturer,
there is a risk of damaging the disc mower.
• The spring on the pole protection mechanism must be tensioned at least to the extent that
the pole protection mechanism does not respond in transport position even with abrupt
loads.
Pos: 27.20 /BA/Ei nstellungen/M ähwerke/EasyCu t/Pfahlsicher ung/Pfahlsich erung Bild AM 20 3S/243S/283S/ 323S @ 69\m od_13051051 71394_78.doc x @ 634013 @ @ 1

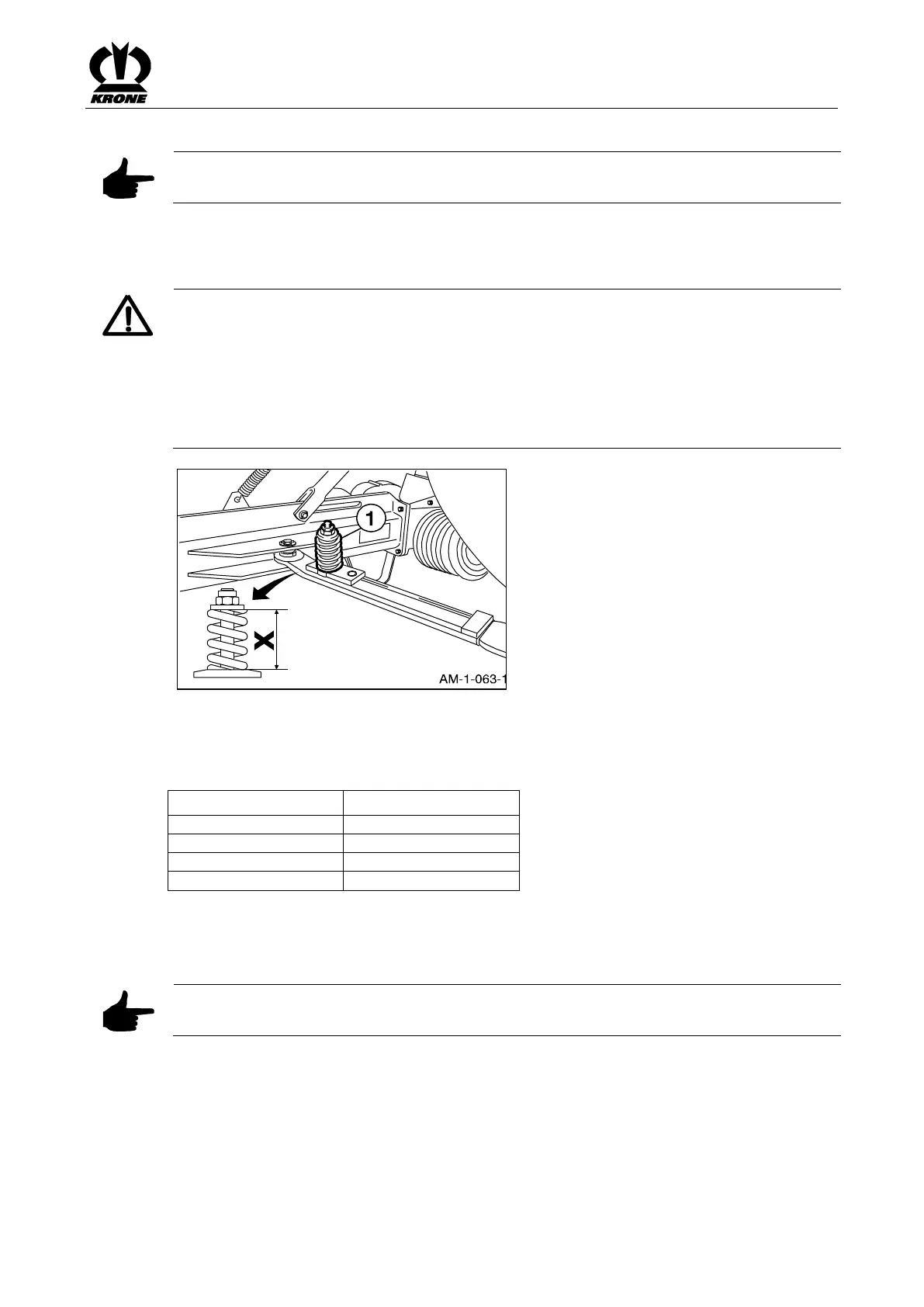

Fig.
Pos: 27.21 /BA/Ei nstellungen/M ähwerke/EasyCu t/Pfahlsicher ung/Pfahlsicheru ng allgemein @ 9 \mod_1 220961293021_ 78.docx @ 1304 29 @ @ 1
In order to protect the disc mower against damages during driving over obstacles, it is equipped
with a so-called pole protection mechanism.
The optimal setting for the trigger moment takes place in the factory.
Pos: 27.22 /BA/Ei nstellungen/M ähwerke/EasyCu t/Pfahlsicher ung/Pfahlsicheru ng AM 203S/2 43S/283S/323S Ta belle @ 69 \mod_1305 105267779_78. docx @ 634041 @ @ 1
Pos: 27.23 /BA/Ei nstellungen/M ähwerke/EasyCu t/Pfahlsicher ung/Pfahlsicheru ng nach dem A uslösen @ 9\ mod_12209 61640381_78.d ocx @ 130471 @ @ 1
After the pole protection mechanism is triggered, the mowing unit swings back and, at the same
time, in the front area upwards. This allows the mower to climb over small obstacles, e.g.,
stones. The pole protection mechanism will catch again as soon as you move back.
Pos: 27.24 /BA/Ei nstellungen/M ähwerke/EasyC ut/Pfahlsicher ung/Hinweis Der Bolzen der A uslöseklinke muss immer gefettet sein. @ 69\ mod_13051 05580435_78.d ocx @ 634067 @ @ 1
Note
The bolt of the trigger cam disc must always be greased.
