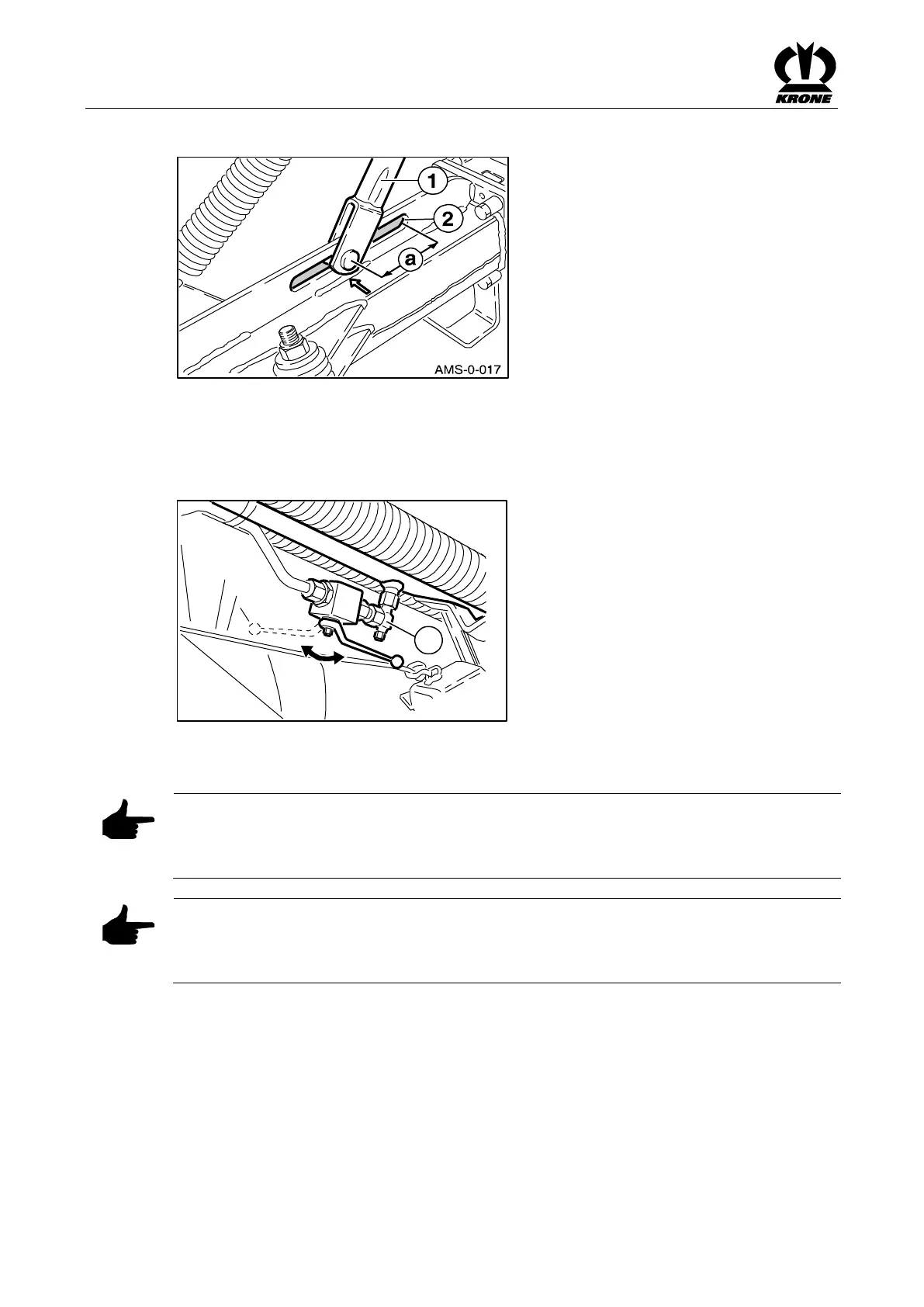

9.4 Default Setting of the Tractor's Lower Suspension Arms
Pos: 27.27 /BA/Ei nstellungen/M ähwerke/Mähw erke AM Baureih e/Grundeinst ellung der Trakt or-Unterlen ker Bild AM-S und AM-CV @ 73 \mod_1307536 515692_78.doc x @ 652088 @ @ 1
Fig.
Pos: 27.28 /BA/Ei nstellungen/M ähwerke/Mähw erke AM Baureih e/Grundeinst ellung der Trakt or-Unterlen ker Text AM-S Baureih e @ 69\mod_130 5107995794_ 78.docx @ 63439 3 @ @ 1
The optimum height is set when the connecting rod (1) is in the oblong hole (2) at a distance of
about a = 70 mm. If it is not located here, the height must be changed as required by raising or
lowering the lower suspension arm.
Pos: 27.29 /Übersc hriften/Überschrif ten 2/A-E/ EEinstellbare Dr osseln @ 0\ mod_1197295 892260_78.docx @ 17199 @ 2 @ 1
9.5 Adjustable throttles
Pos: 27.30 /BA/Ei nstellungen/Dr ossel/Drossel ei nstellen Bil d AM-S Baureih e @ 72\mod_13 07360563456_ 78.docx @ 6 47256 @ @ 1
Fig.
Pos: 27.31 /BA/Ei nstellungen/Dr ossel/Drossel ( 1) Aushubgesch windigkeit Arb eits- in Vorge wendestellung @ 11\mod_122 3455172960_ 78.docx @ 1467 90 @ @ 1
Throttle (1)
Throttle (1) adjusts the lifting speed from working position to headland position.
Pos: 27.32 /BA/Ei nstellungen/Dr ossel/Hinweis Ein stellung an den Drosseln ( Auswirkung) @ 7\mod_12155 25223776_78.d ocx @ 103417 @ @ 1
Note
Adjustment on the throttles
Even the smallest adjustments to the stud bolts or throttle setting screws may significantly
change the lifting and lowering speed.
Pos: 27.33 /BA/Ei nstellungen/Dr ossel/Hinweis S echskantmutter/I mbusschrau be kontern @ 7\ mod_121552 5389308_78.d ocx @ 103437 @ @ 1
Note
Adjustment on the throttles
After an adjustment has been made to the throttles, lock the hexagonal nuts and Allen head
screw. Then test functionality.
