10.11 Blade Changing on Cutting Discs
Pos: 29.34.15 / BA/Sicherheit/ 7. Gefahrenhinw eise alt/Mähwer ke/Gefahr - Sc hnell rotierend e Messerteller/M essertrom meln_1 @ 0\mod _1197017696736 _78.docx @ 16001 @ @ 1
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
• Switch off the engine and remove the ignition key.
• The cutting discs/blade drums continue to run!
• Do not leave the driver’s cab until the cutting discs/blade drums have come to a complete
stop.
Pos: 29.34.16 / BA/Sicherheit/ 7. Gefahrenhinw eise alt/Mähwer ke/Gefahr - Sic h lösende Mä hklingen @ 0\ mod_11972694 83265_78.doc x @ 16540 @ @ 1
Danger! - Cutter blades coming loose
Effect: Danger to life or serious injuries.
• After changing the blades check that they fit perfectly and that they can move freely.
• Whenever a blade is changed, also inspect the fasteners and replace them, if necessary!
• Always replace missing and damaged blades in sets to prevent unbalanced rotation!
• Never mount unevenly worn blades on a drum/disc!
Pos: 29.34.17 / BA/Wartung/Mä hwerke/Spezi alwerkzeug Messersc hnellverschl uss @ 73\ mod_1307609 905027_78.docx @ 653035 @ 2 @ 1
10.12 Special Tool
Fig.

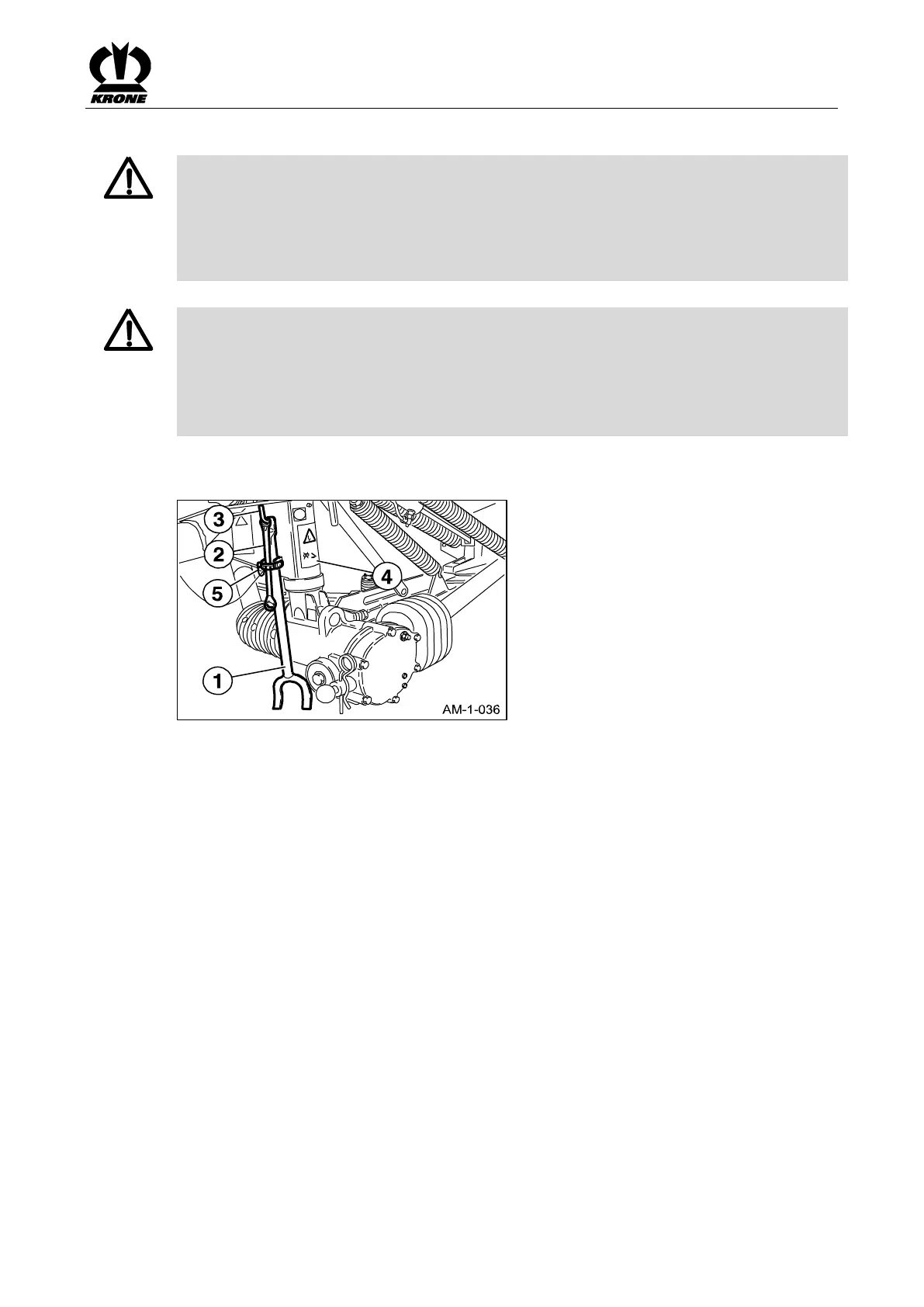

The special tool (1) {blade wrench for blade quick-fit device} or the offset ring spanner (2) {for
blade screw connection} are included in the scope of delivery.
The tool (1 or 2) is located on the holder (3) on the rear hinge pipe (4) of the three-point block.
After the tool has been used, insert it in the holder (3) again and secure it with the linch pin (5).
