10.7 Oil level check and oil change on the cutter bar
Pos: 29.24.2 /Üb erschriften/Üb erschriften 3/K- O/OÖlwechsel @ 0\mod_119 7021941955_ 78.docx @ 16139 @ 3 @ 1
10.7.1 Oil change
Pos: 29.24.3 /B A/Wartung/Mäh werke/Hinweis Ei n Ölwechsel am Mähholm ist nicht erforderli ch. @ 68\ mod_1304577391 388_78.doc x @ 628708 @ @ 1
Note
No oil change is required on the cutter bar.
Pos: 29.24.4 /Üb erschriften/Üb erschriften 3/K- O/OÖlkontroll e @ 0\mod_119 7021908190_7 8.docx @ 16 120 @ 3 @ 1
10.7.2 Checking the oil level
Pos: 29.24.5 /B A/Sicherheit/7. G efahrenhinweis e alt/Mähwer ke/Gefahr - Sch nell rotierende M esserteller/M essertrommel_ 2 @ 0\mod_1 197022569252_7 8.docx @ 16 165 @ @ 1
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
Lower guards. Nobody should be in the danger zone around the machine.
Pos: 29.24.6 /B A/Sicherheit/7. G efahrenhinweis e alt/Mähwer ke/Gefahr - Sch nell rotierende M esserteller/M essertromm eln_1 @ 0\mod_ 1197017696736_ 78.docx @ 1 6001 @ @ 1
Danger! - Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
• Switch off the engine and remove the ignition key.
• The cutting discs/blade drums continue to run!
• Do not leave the driver’s cab until the cutting discs/blade drums have come to a complete
stop.
Pos: 29.24.7 /B A/Sicherheit/6. Üb erarbeitete W arnhinweise/Hinw eis - Ver weis auf Anzieh drehmomente V erschlussschraub en @ 469\ mod_1470667 868238_78.docx @ 3167926 @ @ 1
Note
Tighten the locking screws on the gearboxes with the prescribed tightening torques, refer to
chapter Maintenance “Tightening Torques for Locking Screws and Bleed Valves on
Gearboxes”.
Pos: 29.24.8 /B A/Wartung/Mä hwerke/AM Baurei he/Vorber eitung Ölkontrolle / Ölwechel AM-S Baureihe @ 70\mod_1305 117991534_7 8.docx @ 634930 @ @ 1
• Allow the machine to run briefly
• Turn off the PTO
• Wait until cutting discs/blade drums have come to a complete stop
• Move the cutter bar into transport position
• Switch off the tractor engine and remove the ignition key
• Close the shut-off valve on the hydraulic cylinder of the disc mower

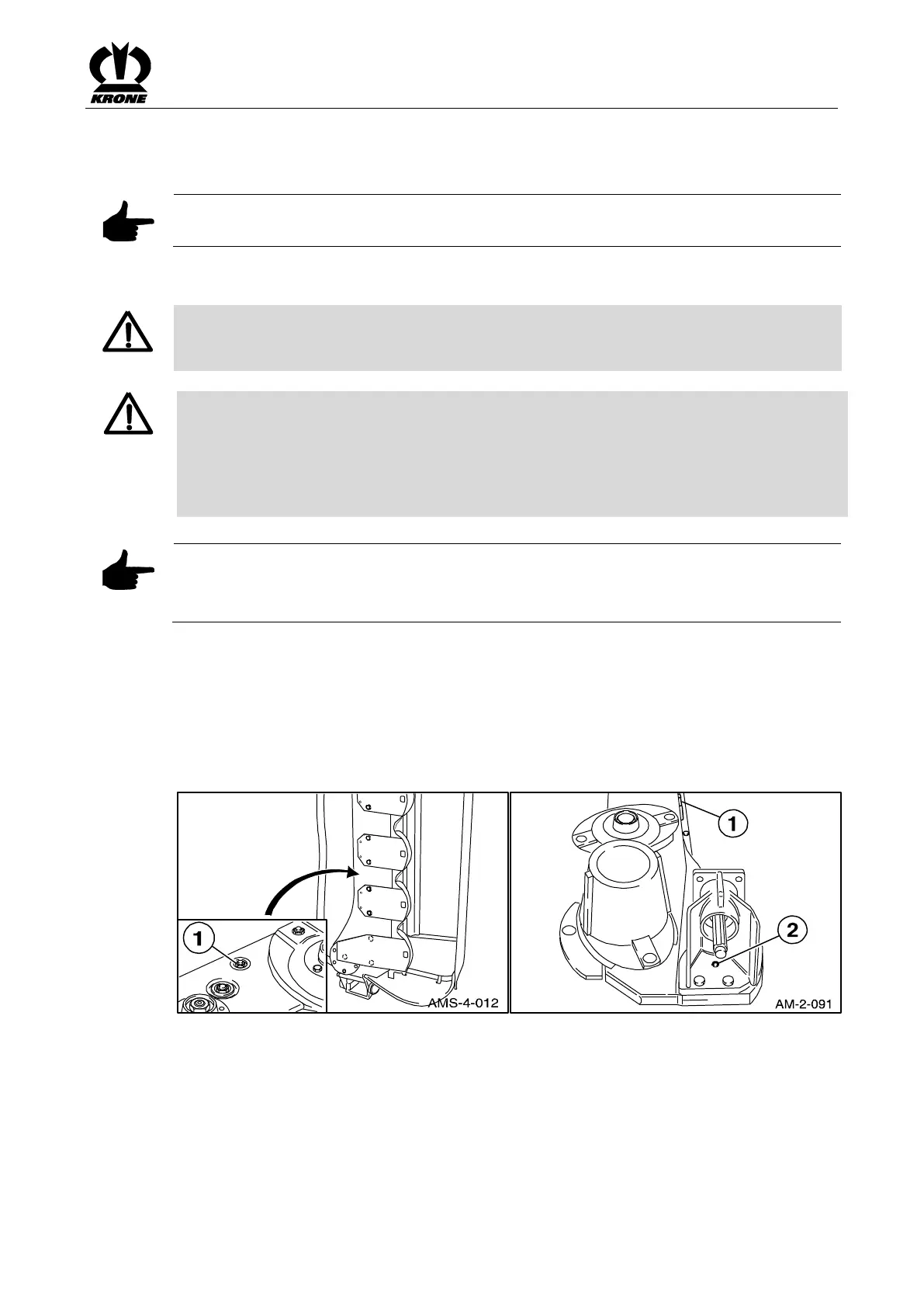

Pos: 29.24.9 /B A/Wartung/Mäh werke/Ölkontrolle / Ölwechsel M ähholm AM- S Baureihe Bil d @ 73\mod_130760 1585937_78.doc x @ 652647 @ @ 1
Fig.
26
Pos: 29.24.10 / BA/Wartung/Mä hwerke/Öl kontrolle Mähholm AM- S / AM-CV B aureihe @ 70\ mod_1305115 617542_78.doc x @ 634784 @ @ 1
Check the oil level before every use
• Remove the oil level inspection screw (1) from the cutter bar
• The oil level must be up to the bore hole. If necessary, top up the oil (SAE 90)
• Screw in the oil level inspection screw (1) again and tighten securely
