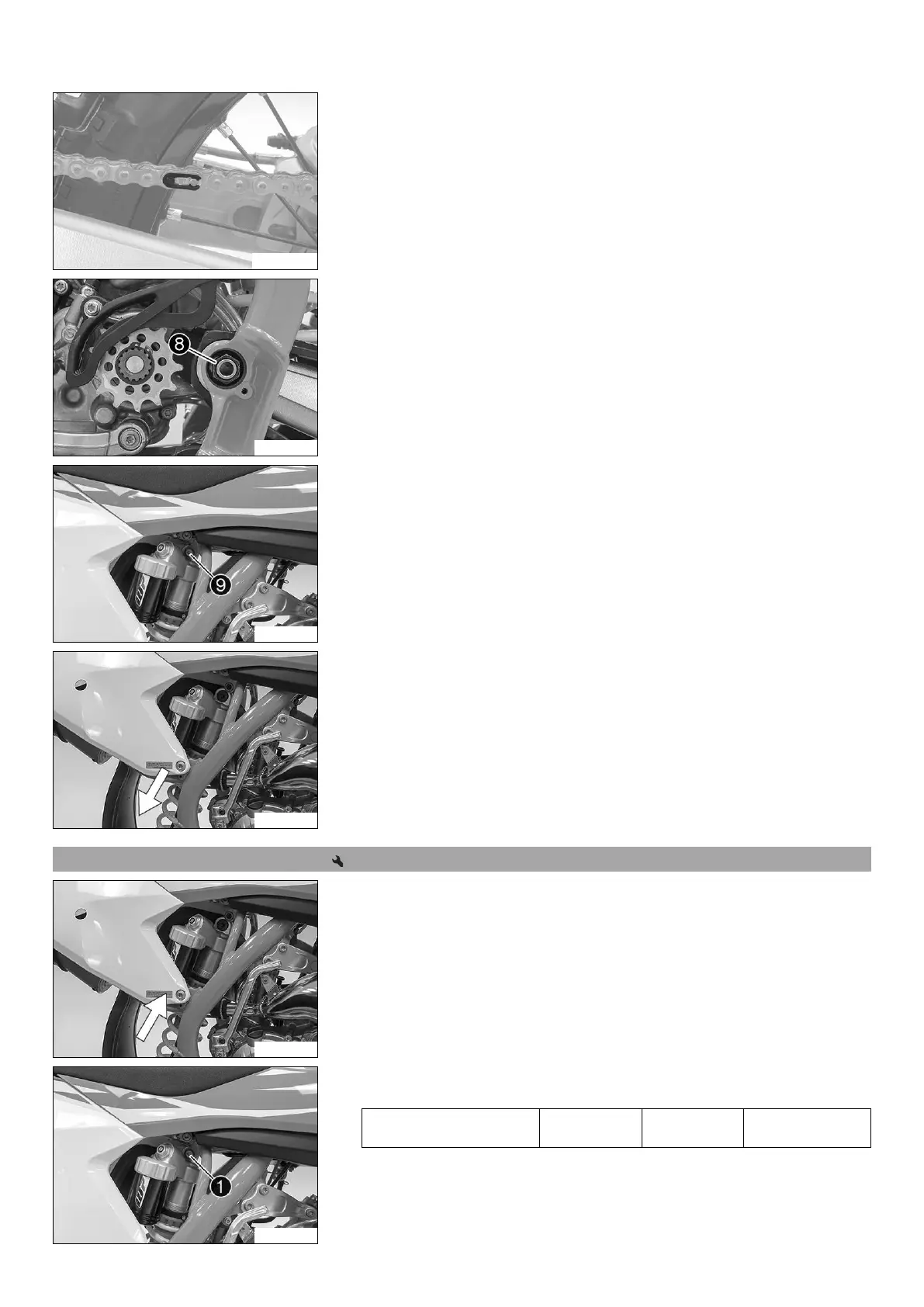

11 SERVICE WORK ON THE CHASSIS 46
M01149-01
– Remove the connecting link of the chain.
– Take off the chain.
A00004-10
–
Remove nut
8
and pull out the swingarm pivot.
– Push the swingarm back and secure it against falling over.
A00005-10
–
Hold the shock absorber and remove screw
9
.
A00006-10
– Remove the shock absorber carefully at the bottom.
11.19 Installing the shock absorber
A00007-10
Main work
– Carefully position the shock absorber into the vehicle from the bottom.
A00008-10
–
Mount and tighten screw
1
.
Guideline
Screw, top shock absorber M10 60 Nm
(44.3 lbf ft)
Loctite
®
2701™
